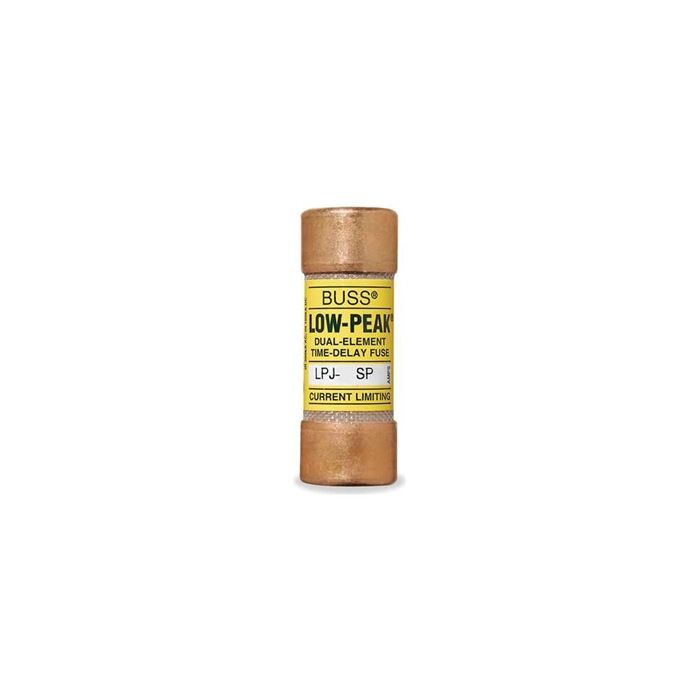

Bussmann LPJ-4-1/2SP Fuse 4.5A

Product Description

The Bussmann LPJ-4-1/2SP is a Class J, time-delay, dual-element, current-limiting fuse. Rated at 4.5A, it is a non-indicating fuse with an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It provides high in-rush current motor protection and ultimate protection with fast short circuit protection.

• Time delay
• Current-limiting
• Dual element
• Non-indicating
• High in-rush current motor protection

Product Highlights

The LPJ-4-1/2SP fuse offers reliable protection for various electrical applications, ensuring safety and preventing damage from overcurrents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-4-1/2SP

Technical Specifications

• SKU: LPJ-4-1/2SP
• Product Name: Eaton Bussmann series LPJ fuse
• Catalog Number: LPJ-4-1/2SP
• UPC: 051712522786
• EAN: 5027590447140
• Product Length/Depth: 0.81 in
• Product Height: 2.25 in
• Product Width: 0.81 in
• Product Type: Fuse
• Amperage Rating: 4.5A
• Interrupt rating: 300 kAIC at 600 Vac 100 kAIC Vdc
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class J
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Indicating, High in-rush current motor protection
• Amps: 4 1/2
• Voltage: 600 Volts AC
• Fuse Class: UL Class J
• Time Delay: 10 Second (Minimum) at 500% Rating
• Element: Dual Element
• Physical Size: 0.81" x 2.25"
• Current Limitation: High Degree of Current Limitation
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: 200,000 AIR, Class J per CSA 22.2 No. 248.8, Class 1422-02, File 53787
• Ampere: 4.5 A
• Speed: Time Delay / Slow Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Mersen AJT
• Dimensions: 0.81" Dia x 2.25" L (20.57x57.15mm)
• Series: LPJ
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Amperage: 4.5 A
• Interrupt Rating: 300/100 kAIC
• Response: 10 s at 500%
• Terminal: Ferrule End
• Mounting: Holder
• Body Type: Cylindrical
• Material: Melamine
• Body Size: 0.81 in Dia x 2.25 in L
