Bussmann LPJ-3SP fuse 3 Amp

Product Description

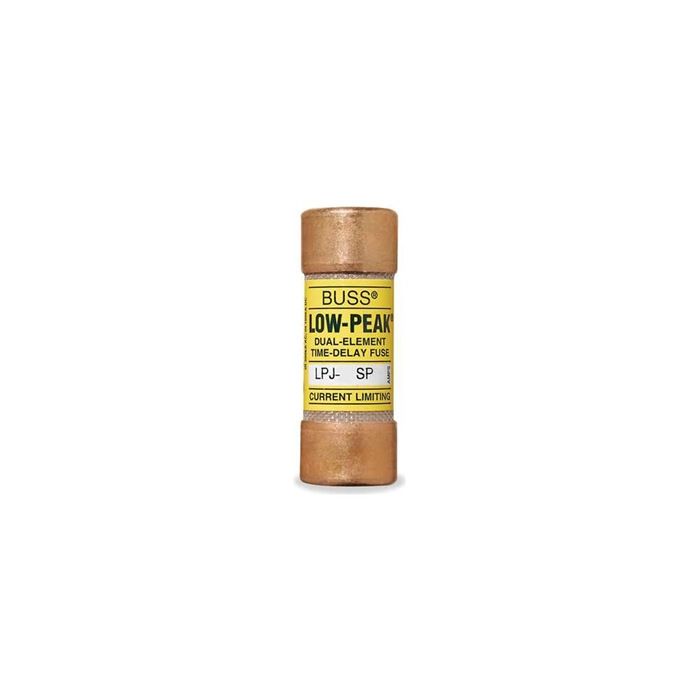

The Bussmann LPJ-3SP is a 3 Amp, low-peak, dual-element, time-delay fuse. This Class J fuse is current limiting and designed for 600VAC/300VDC or less. It has an interrupting rating of IR 200kA AC and IR 100kA DC. It is suitable for branch circuit breaker panelboard mains, industrial control, and machinery disconnects.

• 3 Amp
• Time-Delay
• 600VAC/300VDC

Product Highlights

The Bussmann LPJ-3SP fuse provides ultimate protection with its dual-element, current-limiting design and time-delay functionality.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-3SP
• Country of Origin: MX

Technical Specifications

• Amperage: 3 Amp
• Fuse Type: Time-Delay
• Voltage: 600VAC/300VDC
• Interrupting Rating: IR 200kA AC, IR 100kA DC
• Fuse Class: Class J
• Features: Current Limiting, Dual-Element, Low-Peak
• MPN: LPJ-3SP
• Brand: Bussmann
• Amps: 3
• Element: Dual
• Physical Size: 0.81" x 2.25"
• Interrupt Rating: 300 kAIC
• Response Time: 10 s
• Size: 0.81 In Diameter X 2.25 In Length
• Type: Current Limiting
• Applications: Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listing: Special Purpose, Guide JFHR, File E56412
• CSA Certification: 200,000 AIR, Class J per CSA 22.2 No. 248.8, Class 1422-02, File 53787
• Ampere: 3 A
• Voltage rating: 600 VAC
• Interrupt rating: 300 kA
• Speed: Time Delay / Slow Blow
• Class: Class J Fuse
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse JTD, Mersen AJT
• Datasheet: Bussmann LPJ-SP Datasheet
• Dimensions: 0.81" Dia x 2.25" L (20.57x57.15mm)
• Family: Low-Peak
• AIC Ratings: 300kA@600V
• Dimensions (HxWxD): 0.81 x 2.25
• Sub Brand: Low-Peak
• Part Number #: LPJ-3SP
• Amperage Rating: 3 A
• Body Type: Cylindrical
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Series: LPJ
• Terminal Type: Ferrule
• Material: Melamine
• Mounting type: Holder
• Manufacturer Name: Eaton
• UNSPSC: 39121603
• UPC: 00051712523219
