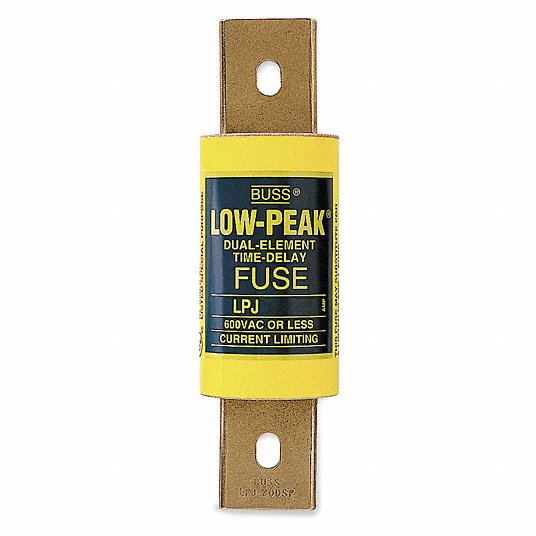

Bussmann LPJ-350SP Eaton Bussmann Series Class J Fuse 350 A LPJ-350SP

Product Description

The BUSSMANN LPJ-350SP is an Eaton Bussmann Series Class J fuse. This time-delay, dual-element, current limiting fuse has a 350 A amperage rating and a 300 kA interrupting rating at 600 Vac and 100 kA at 300 Vdc. It provides high in-rush current motor protection.

• Time delay
• Current-limiting
• Dual element
• Non-indicating
• High in-rush current motor protection

Product Highlights

The BUSSMANN LPJ-350SP fuse is ideal for branch circuit breaker panelboard mains, industrial control, and machinery disconnects.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-350SP
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series LPJ fuse
• Catalog Number: LPJ-350SP
• UPC: 051712522830
• Product Length/Depth: 7.13 in
• Product Height: 2 in
• Product Width: 2 in
• Product Type: Fuse
• Amperage Rating: 350 A
• Interrupt rating: 300 kAIC at 600 Vac 100 kAIC Vdc
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class J
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating
• Special features: Indicating, High in-rush current motor protection
• Applications: Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
• Element: Dual
• End Type: Blade,Bolted
• Fuse Class: Class J
• Interrupt Rating: 300 kAIC
• Size: 2.110 In Diameter X 7.126 In Length
• Standard: CSA,RU Listed,RoHS
• TC Connection: Bolted / Mechanical
• Type: Current Limiting, Time Delay
• Brand: BUSSMANN
• Sub Brand: Low-Peak
• GTiN: 00051712522830
• Product UPC: 05171252283
• Series: LPJ
• AC Voltage Rating: 600 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: JM600
• Current Rating: 350 A
• DC Voltage Rating: 300 V DC
• Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Fuse Class or Type: J
• Interrupt Rating - AC: 300 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 2-1/8 in
• Overall Length: 7-1/8 in
• Speed: Time-Delay
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Visual Indication: Non-Indicating
• UNSPSC: 39121604
• Application: Branch Circuit
• Finish: Bronze
• Material: Bronze, Brass
• Fuse Body Type: Cartridge
• Maximum Amperage: 250 A
• Current Type: AC
• Electrical Fuse Type: Electrical Fuse
• Item Height: 2 in
• Voltage: 551-600 V
• Model: LPJ-350SP
• Fuse Classification: Current-Limiting
• Protection Properties: -55 to 85 deg C
