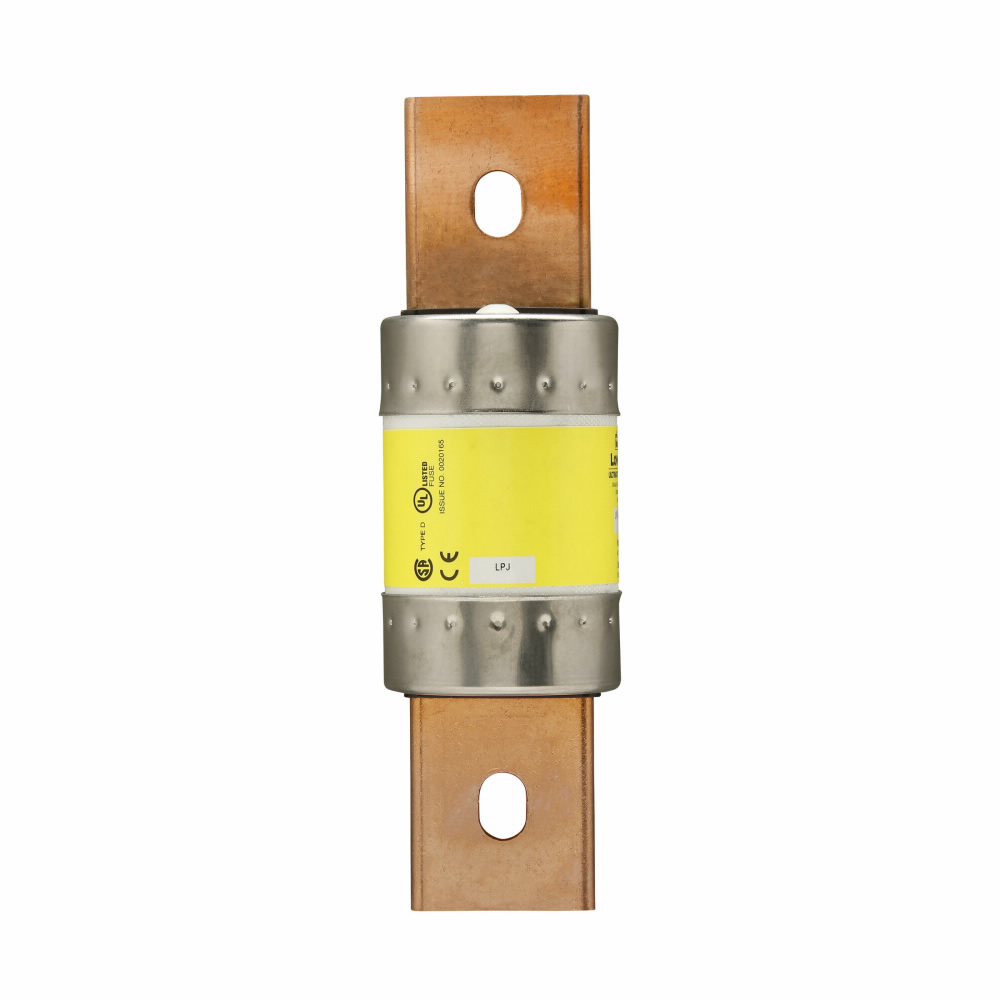

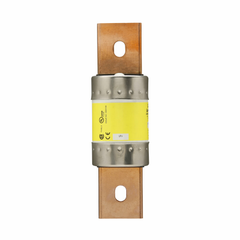

Bussmann LPJ-225SP Class J Low Peak Time Delay Fuse

Product Description

The Bussmann Series LPJ-225SP Class J Low Peak Time Delay Fuse is designed for reliable circuit protection. This fuse has a rated current of two hundred twenty-five amperes and features a dual-element design, which is essential for time-delay applications. It has a bolted blade end connection for easy installation.

• Current-limiting fuse design
• Time delay of ten seconds at five hundred percent of rated current
• Interrupt ratings of three hundred kiloamperes at six hundred volts alternating current

Product Highlights

Designed for use in branch circuits and panelboards, this fuse offers high reliability and safety for various applications.

Product Information

Standard Information

• Manufacturer: Bussmann Mfg.
• Catalog Number: LPJ-225SP

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 225 A
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC Vdc
• Connection Type: Bolted blade end x bolted blade end
• Weight: 1.5 lb
• Dimensions: 7.13 inches length x 2 inches width x 2 inches height
• Element Type: Dual
• Application: Industrial control, branch circuit protection
