Product Description

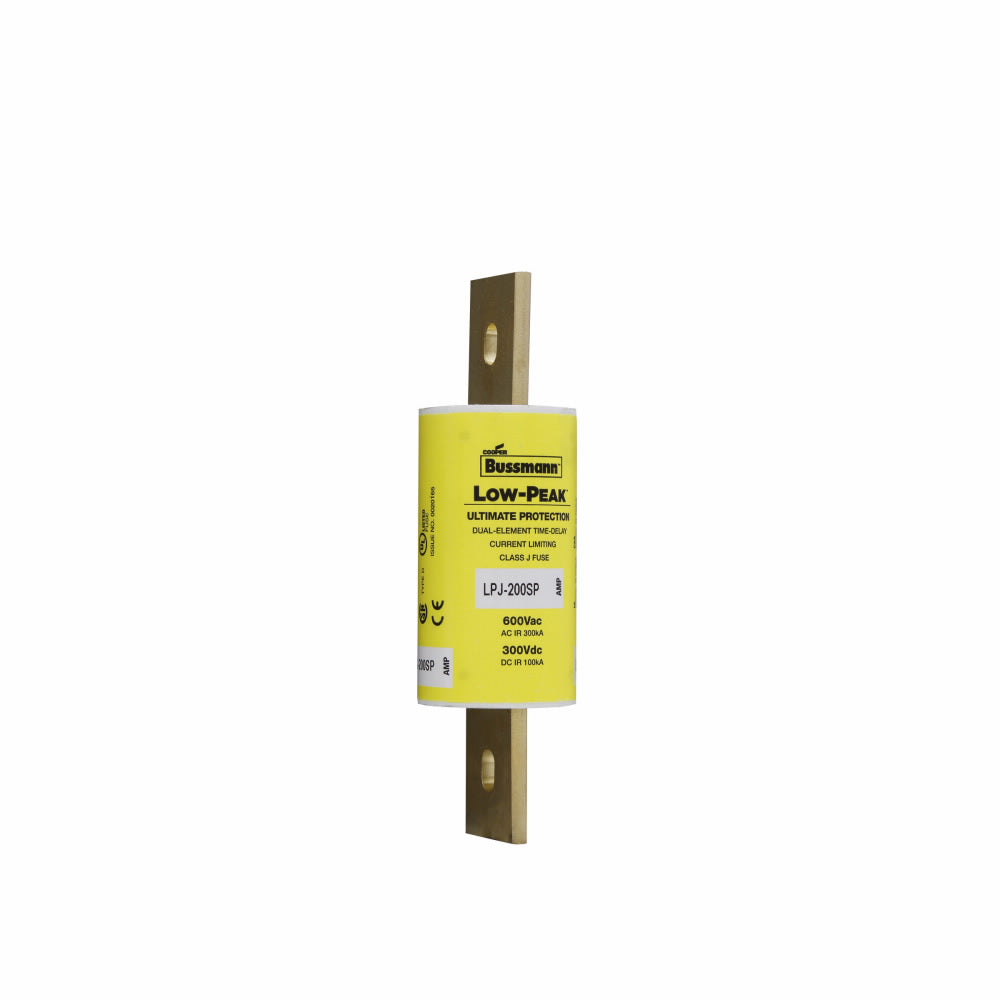

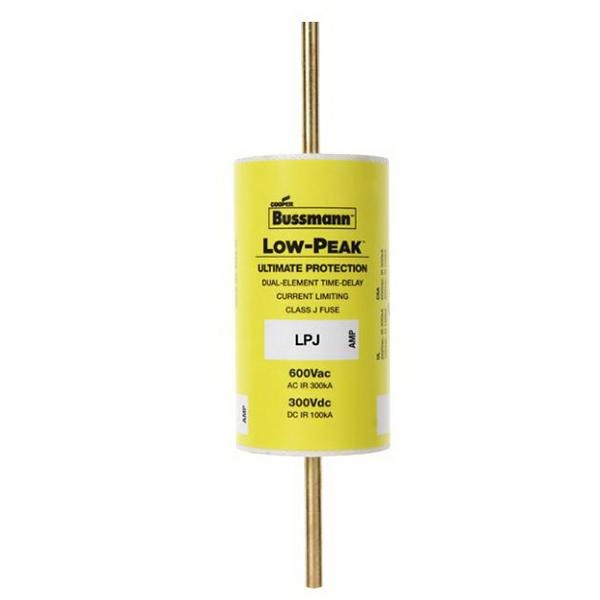

The Bussmann LPJ-200SP is a dual-element, current-limiting time-delay fuse. This fuse is rated for 200 Amperes and can handle a voltage of 600 Volts AC and 300 Volts DC. It has an interrupting rating of 300 Kilo-Amps at 600 Volts AC and 100 Kilo-Amps at 300 Volts DC.
- Dual-element design ensures optimal time-delay performance.
- Provides current limitation protecting downstream components.
- Ideal for use in power panelboards and industrial control applications.
Product Highlights
This fuse minimizes unnecessary openings due to temporary overloads while its cylindrical shape and melamine construction enhance its durability.
Product Information
Standard Information
-
Brand: Bussmann
-
Manufacturer: Bussmann
Technical Specifications
-
Type: Non-Rejection, Current-Limiting
-
Amperage Rating: 200 Amps
-
Voltage Rating: 600 Vac, 300 Vdc
-
Interrupt Rating: 300 Kilo-Amp at 600 Vac, 100 Kilo-Amp at 300 Vdc
-
Response Time: 10 seconds at 500%
-
Dimensions: 1.63 inches diameter x 5.75 inches length
-
Mounting: Stud
-
Construction: Melamine Body
