Bussmann LPJ-2-1/4SP Lpj-2-1/4sp 600v J Td Fs

Product Description

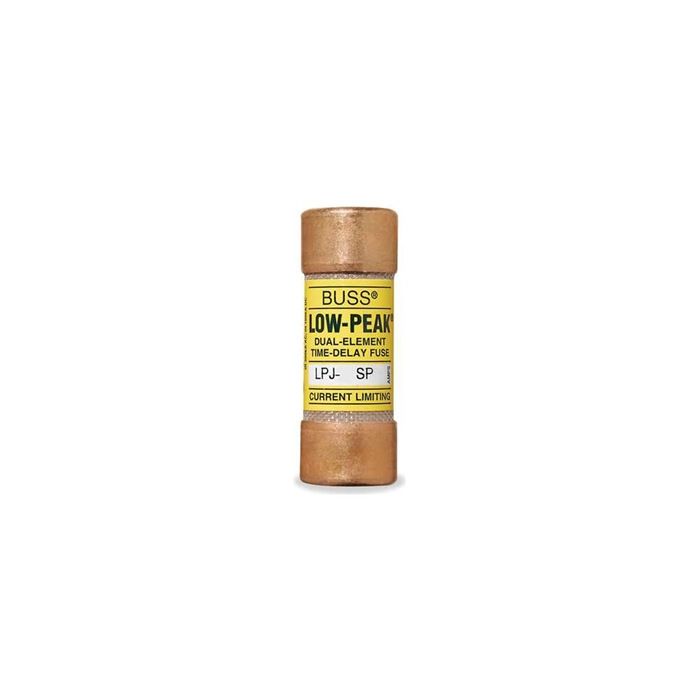

The BUSSMANN LPJ-2-1/4SP is a Class J fuse from the Eaton Bussmann Series. This time-delay, dual-element, current limiting fuse is rated at 2.25 A. It is a non-indicating fuse with an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, suitable for industrial facilities and safety systems.

• Non-indicating
• High in-rush current motor protection
• Time delay

Product Highlights

Class J fuse with time-delay, dual-element, and current limiting features. Offers high interrupting rating and is suitable for motor protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-2-1/4SP
• Country of Origin: United States

Technical Specifications

• IGCC: 4980
• Size: 0.81 In Diameter X 2.25 In Length
• Type: Fuse
• Class: Class J
• Vendor: 171200
• Element: Dual
• Standard: CE Marked;RoHS Compliant
• Connection: Ferrule end x ferrule end
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Family group: FUSES/ACCESSORIES
• Manufacturer: Eaton
• Response Time: 10 sec at 500%
• Voltage Rating: 600//300 VAC//VDC
• Amperage Rating: 2.25 A
• Interrupt Rating: 300 kAIC at 600 Vac
• Special Features: Non-indicating; High in-rush current motor protection
• Catalog Number: LPJ-2-1/4SP
• UPC: 051712522700
• EAN: 5027590447966
• Product Length/Depth: 0.81 in
• Product Height: 2.25 in
• Product Width: 0.81 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Amperage: 2 1/4
• Voltage: 600V
• Fuse Class: J
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• Physical Size: 0.81" x 2.25"
• Brand: Bussmann
• Series: LPJ
• Mpn: LPJ-2-1-4SP
• Alternate Catalog Number: LPJ-2-1/4SP
• ARRA Compliant: C
• Body Size: 0.81 in Dia x 2.25 in L
• Buy American Compliant: C
• Country of Origin: MUL
• Material: Melamine
• Mounting Type: Holder
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA C22.2 No. 248.8, Class 1422-02 File No. 53787UL Guide No. JDDZUL File No. E4273Guide No. JFHRUL File No. E56412
• Sub Brand: Bussmann Series
• Terminal Type: Ferrule
• UNSPSC: 39121626
• UPC 11: 05171252270
• UPC 12: 051712522700
• Length: 0.81 in
• Width: 0.81 in
