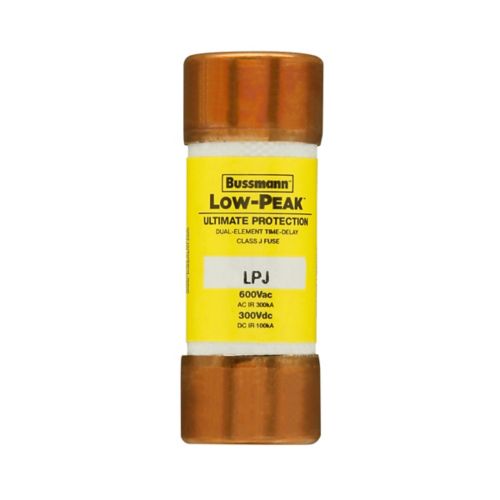

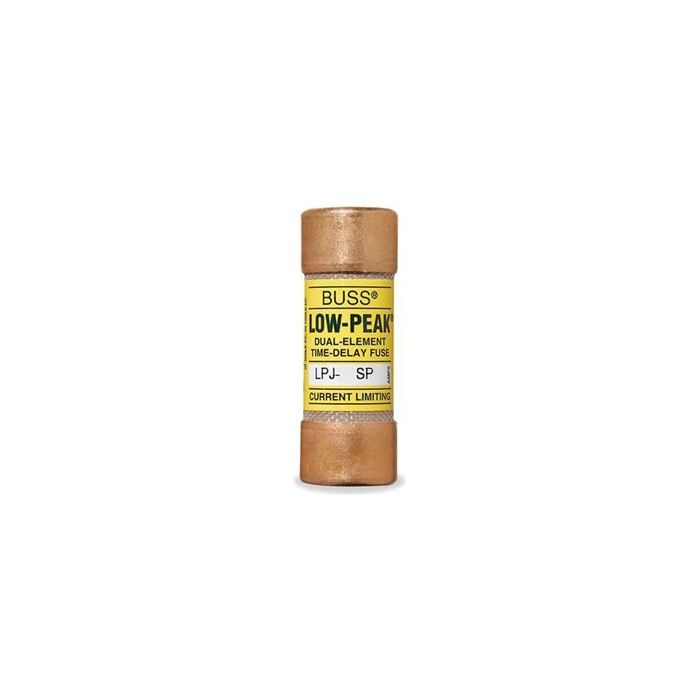

Bussmann LPJ-2-1/2SP LPJ Fuse 2.5 A

Product Description

The Eaton Bussmann Series LPJ Fuse, MPN LPJ-2-1/2SP, is a Class J, time-delay, dual-element, current limiting fuse. This non-indicating fuse has an interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc. It provides high in-rush current motor protection.

• Time delay
• Current-limiting
• Non-indicating
• High in-rush current motor protection

Product Highlights

The LPJ series fuse is ideal for industrial control, machinery disconnects and power panelboards.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-2-1/2SP

Technical Specifications

• Product Name: Eaton Bussmann series LPJ fuse
• Catalog Number: LPJ-2-1/2SP
• UPC: 051712522717
• Product Length/Depth: 2.25 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 2.5 A
• Interrupt rating: 300 kAIC at 600 Vac 100 kAIC Vdc
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class J
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Indicating, High in-rush current motor protection
• Amps: 2 1/2
• Volts AC: 600
• Time Delay: 10 Second (Minimum) at 500% Rating
• Element: Dual
• Physical Size: 0.81" x 2.25"
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: 200,000 AIR, Class J per CSA 22.2 No. 248.8 Class 1422-02, File 53787
• Amperage: 2-1/2 Amp
• Applications: Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 100 kAIC
• Size: 0.81 In Diameter X 2.25 In Length
• Standard: CSA,RU Listed,RoHS
• TC Connection: Ferrule End X Ferrule End
• Type: Monitoring
• Voltage: 300 Volt
• Brand: Eaton
• Sub Brand: Low-Peak
