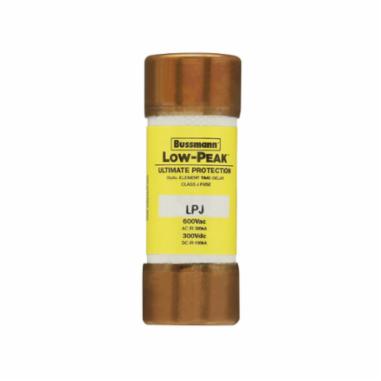

Bussmann LPJ-1SP Current Limiting Time Delay Fuse 1 A 600 VAC/300 VDC 300/100 kAIC Interrupt Class J

Product Description

Bussmann LPJ-1SP is a current limiting time delay fuse. It is designed to handle 1 amp at 600 VAC and 300 VDC. The fuse has an interrupting rating of 300,000 amps at 600 VAC and 100,000 amps at 300 VDC. Its cylindrical body type is made of melamine.

• Rated for up to 600 VAC and 300 VDC
• Provides exceptional protection with a 300 kA interrupt rating
• 10 seconds ride-through performance at 500% rated current

Product Highlights

This fuse is essential for applications requiring reliable performance under high inrush conditions. It features a dual-element design, ensuring effective overload and short circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Body Size: 0.81 inches diameter x 2.25 inches length
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Response Time: 10 seconds at 500%
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 1 A
• Interrupt Rating: 300/100 kAIC
• Class: J
• Body Type: Cylindrical
