Bussmann LPJ-175SP 600V J TD FS

Product Description

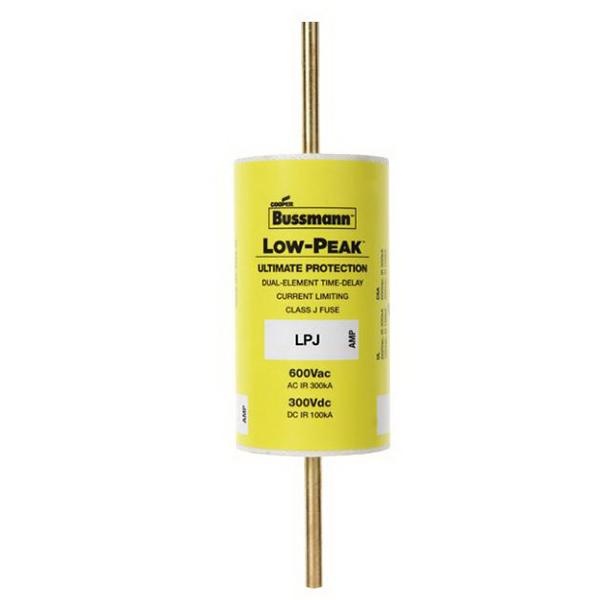

The Bussmann LPJ-175SP is a Class J time-delay fuse rated for 175 Amps and 600 Volts AC. It features a non-indicating design with a dual-element, offering a reliable current-limiting solution. This fuse has an interrupting rating of 300 Kilo-Amps at 600 Volts AC and 100 Kilo-Amps at 300 Volts DC. The construction includes a durable melamine tube, making it suitable for multiple applications in industrial environments.

• Current limiting: Protects downstream components.
• Time-delay performance: Reduces unnecessary fuse openings.
• CE marked and RoHS compliant: Meets safety and environmental standards.

Product Highlights

The LPJ-175SP is ideal for use in power panelboards, industrial control applications, and machinery disconnects. Its long time delay minimizes disruptions from temporary overloads.

Product Information

Standard Information

• Manufacturer: Bussmann
• Family Group: Fuses/Accessories

Technical Specifications

• Type: Non-Rejection, Current-Limiting
• Amperage Rating: 175 Amps
• Voltage Rating: 600 Volts AC; 300 Volts DC
• Interrupt Rating: 300 Kilo-Amps AC; 100 Kilo-Amps DC
• Dimensions: 1.63 inches Diameter x 5.75 inches Length
• Response Time: 10 seconds at 500%
• Body Style: Cylindrical
• Mounting: Stud
