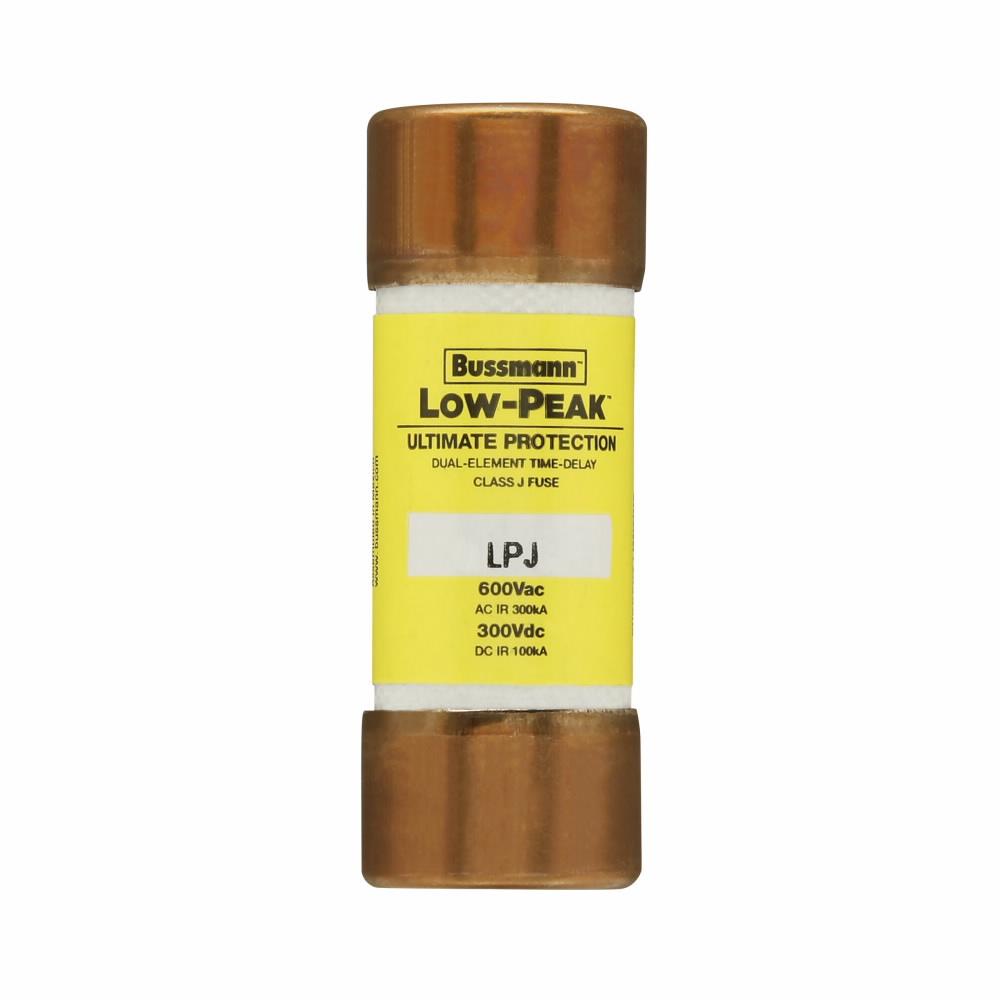

Bussmann LPJ-17-1/2SP Low-Peak Class J Fuse 17.5 A

Product Description

The Bussmann LPJ-17-1/2SP is a low-peak Class J fuse designed for circuit protection in industrial applications. With a current rating of seventeen point five amps, this fuse is ideal for safety and reliability. The fuse features a time-delay design which allows for high in-rush currents, making it suitable for motors and other inductive loads.

• Time-delay functionality for managing in-rush currents
• Interrupting rating of three hundred kiloamps at six hundred volts AC
• CE marked and RoHS compliant for industry standards

Product Highlights

This fuse provides effective protection for safety and security systems in industrial facilities. The dual-element design enables current limiting during overload conditions.

Product Information

Standard Information

• Manufacturer: Bussmann
• Vendor: 171200

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 17.5 A
• Interrupt Rating: 100 kAIC at 300 Vdc; 300 kAIC at 600 Vac
• Dimensions: 2.25 inches length x 0.81 inches diameter
• Connection: Ferrule end x ferrule end
• Special Features: Non-indicating; high in-rush current motor protection
• Response Time: 10 seconds at 500%
• Class: Class J
