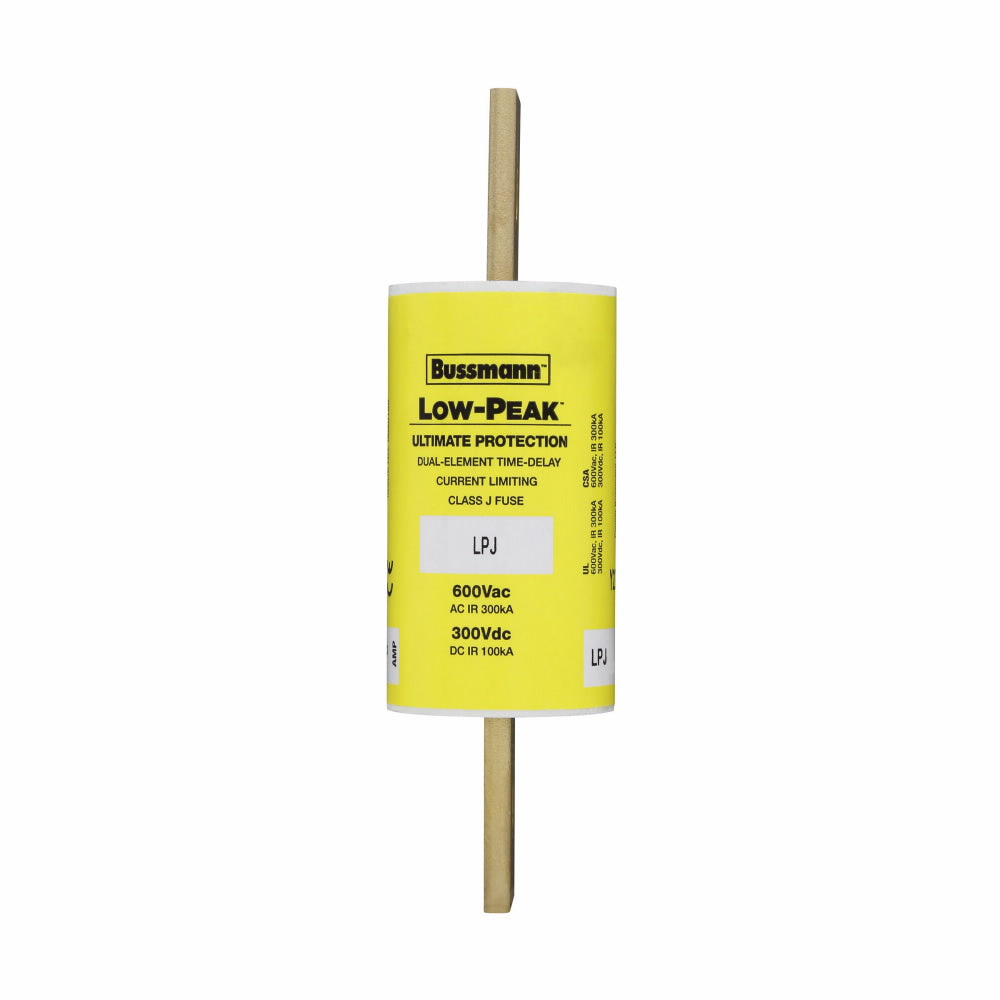

Bussmann LPJ-150SP Time Delay Fuse 150 Amp 600 Volt AC 300 Volt DC

Product Description

The Bussmann LPJ-150SP is a dual-element, time-delay fuse designed for high reliability. This fuse is rated for 150 amps and is suitable for use in applications with voltages up to 600 volts AC and 300 volts DC. The LPJ-150SP is non-indicating, meaning there is no visual signal when it has blown. This fuse provides crucial protection against current surges, making it an effective choice for various electrical panels and machinery.

• Rated for 150 amps with a maximum voltage of 600 volts AC.
• Features dual-element design for optimal performance.
• UL listed and CSA certified for safety compliance.

Product Highlights

The LPJ-150SP offers a robust solution for current-limiting applications. Its cylindrical form allows for easy installation in various setups, including industrial control systems and power panels.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPJ-150SP

Technical Specifications

• Type: Non-Rejection, Current-Limiting
• Amperage Rating: 150 amp
• Voltage Rating: 600 volts AC, 300 volts DC
• Interrupt Rating: 300 kA at 600 volts AC, 100 kA at 300 volts DC
• Dimensions: 1.63 inches diameter x 5.75 inches length
• Body Style: Cylindrical
• Construction: Melamine body
• Mounting: Stud mountable
