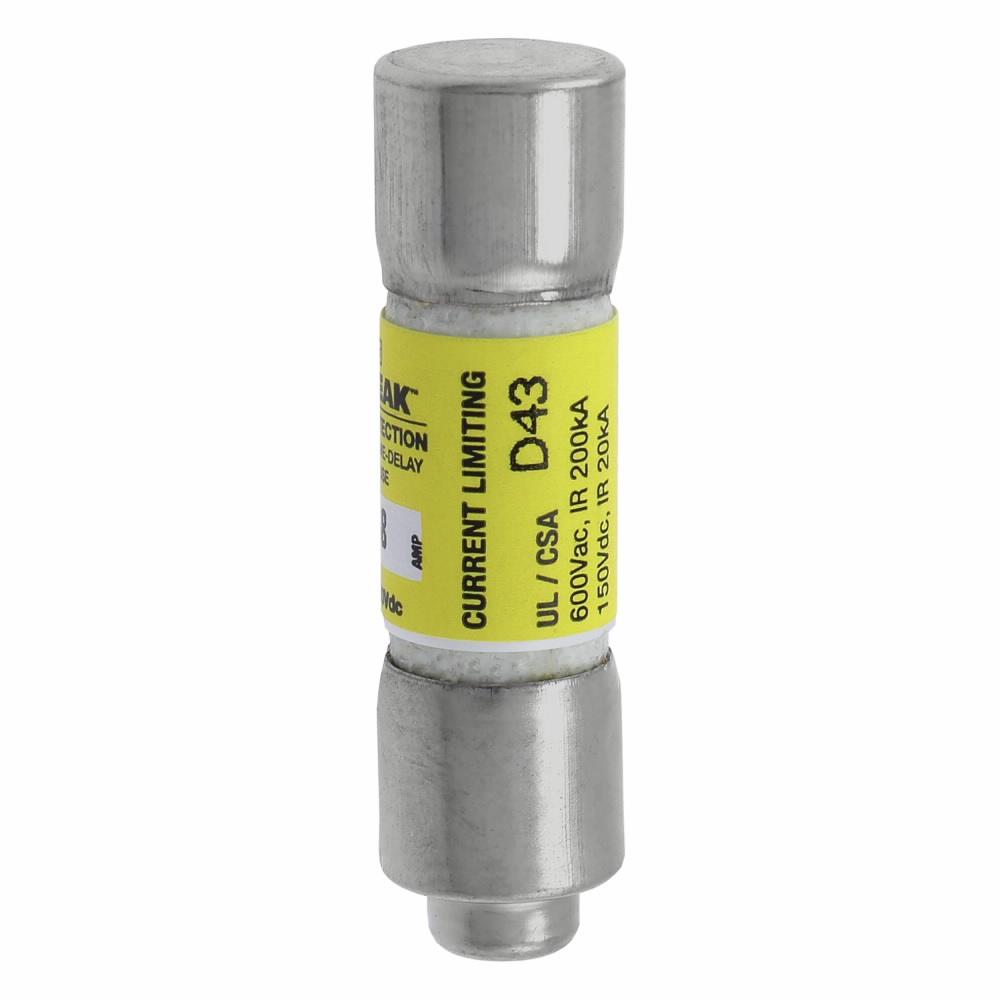

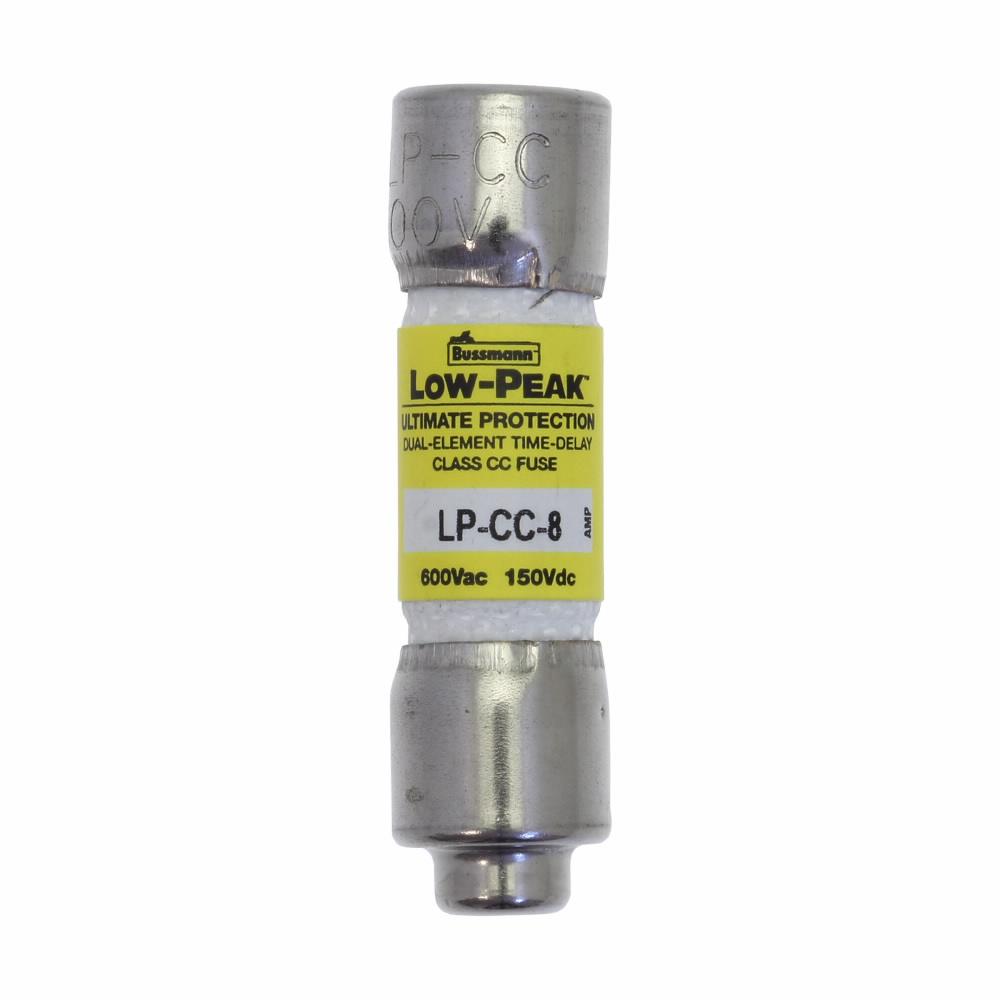

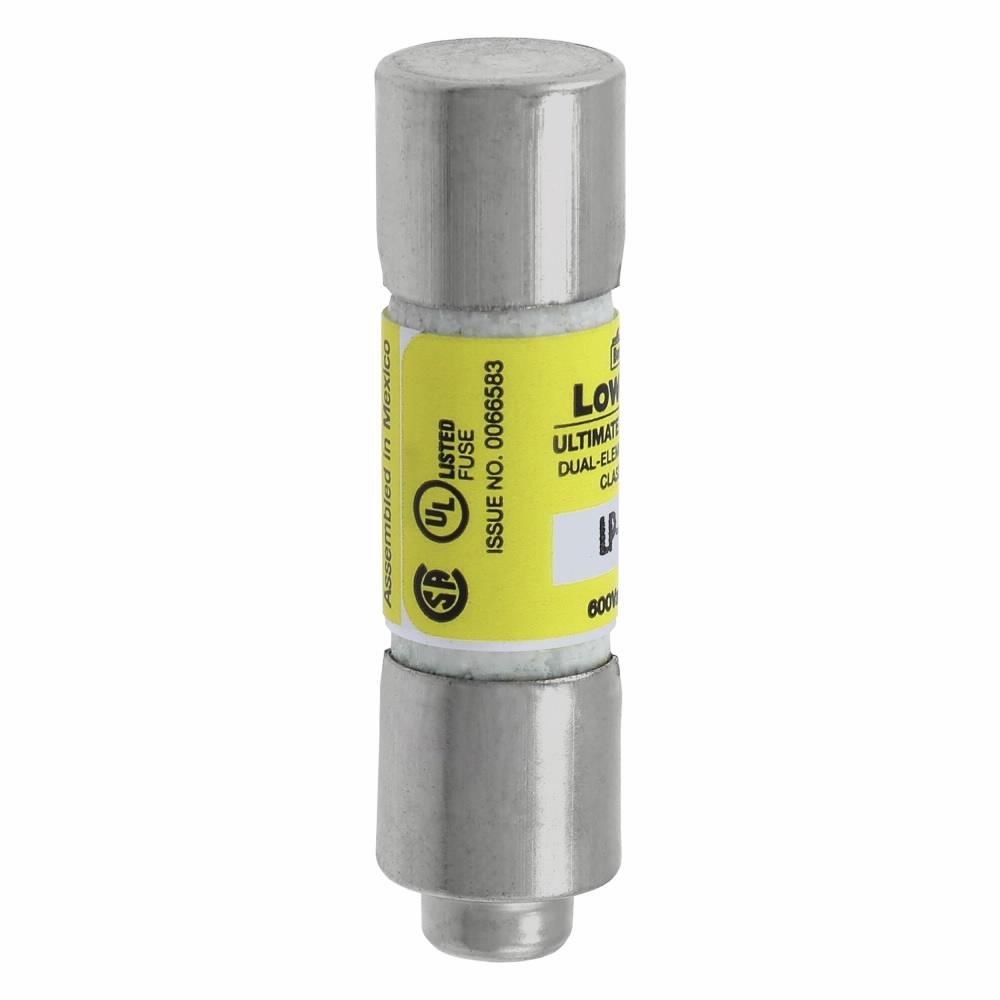

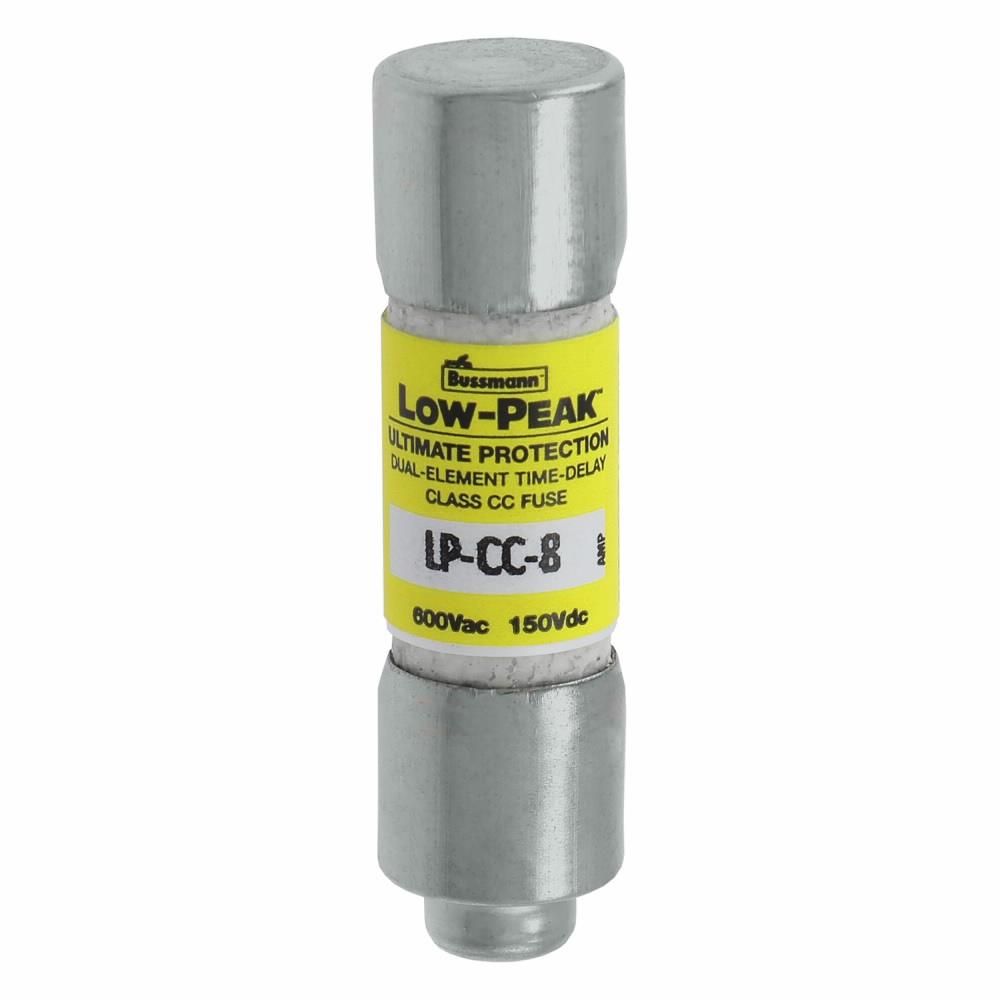

Bussmann LP-CC-8 Current Limiting Time Delay Fuse 8 A 600 VAC/150 VDC

Product Description

The Bussmann Low-Peak LP-CC-8 is a current limiting time delay fuse designed to protect circuits with an amperage rating of eight amps at a voltage of six hundred volts AC or one hundred fifty volts DC. This dual element fuse offers a rejection style and a rating of two hundred kAIC for AC and twenty kAIC for DC. It is ideal for branch circuits, industrial control, and specialized lighting applications.

• Class CC fuse for optimal circuit protection.
• Time-delay feature allows for surge tolerance.
• Ferrule end for easy installation.

Product Highlights

This fuse combines a compact design with high performance, ensuring effective protection against short circuits while taking up less space compared to traditional fuses.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Body Size: 13/32 inches diameter x 1.5 inches length
• Element Type: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine Tube
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 12 seconds at 200%
• Series: LP-CC
• Terminal Type: Ferrule End
• Voltage Rating: 600 VAC / 150 VDC
• Interrupt Rating: 200/20 kAIC
• Fuse Class: CC
• Body Type: Cartridge
