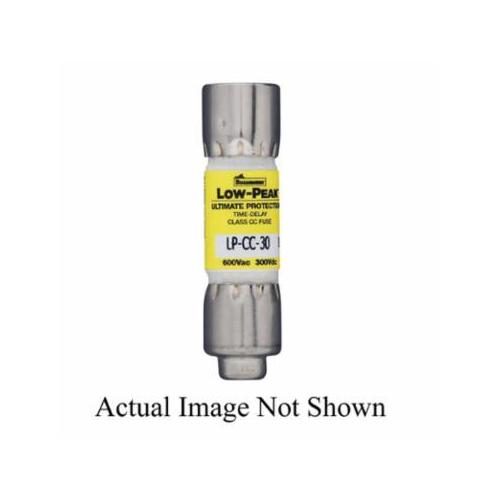

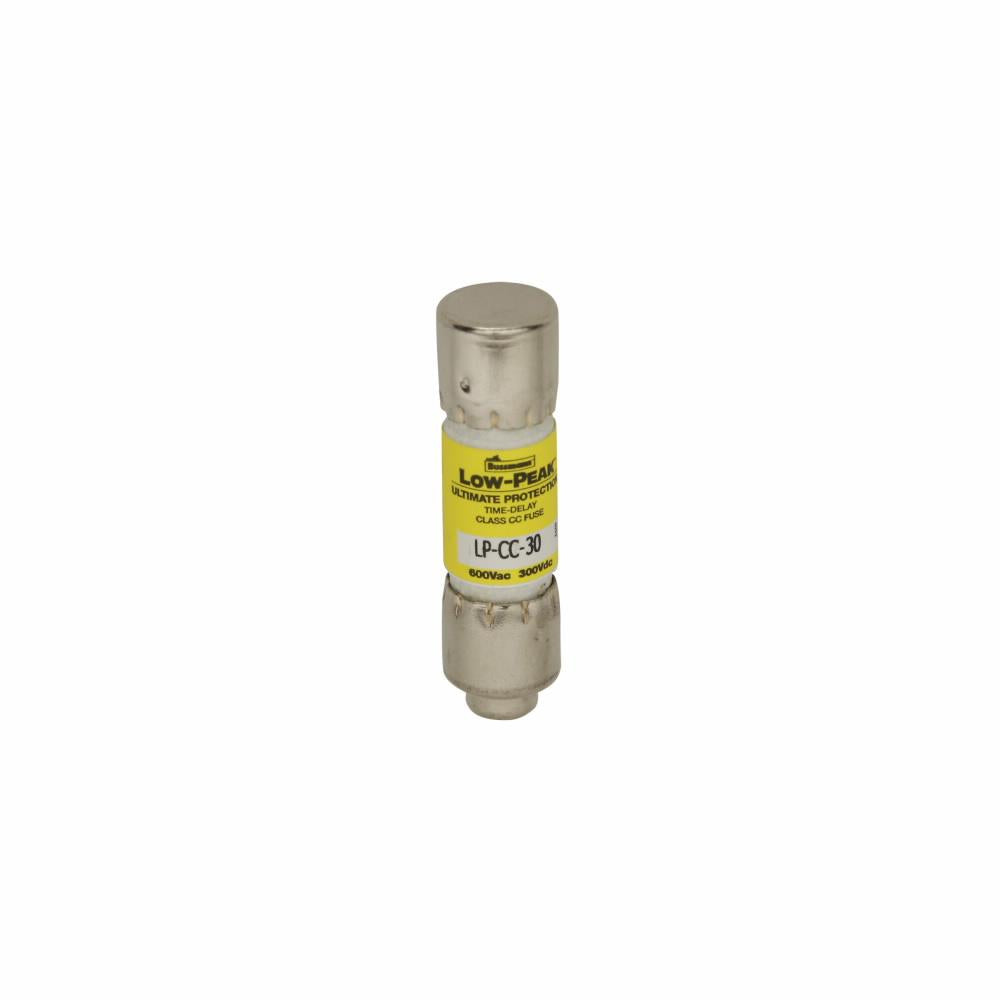

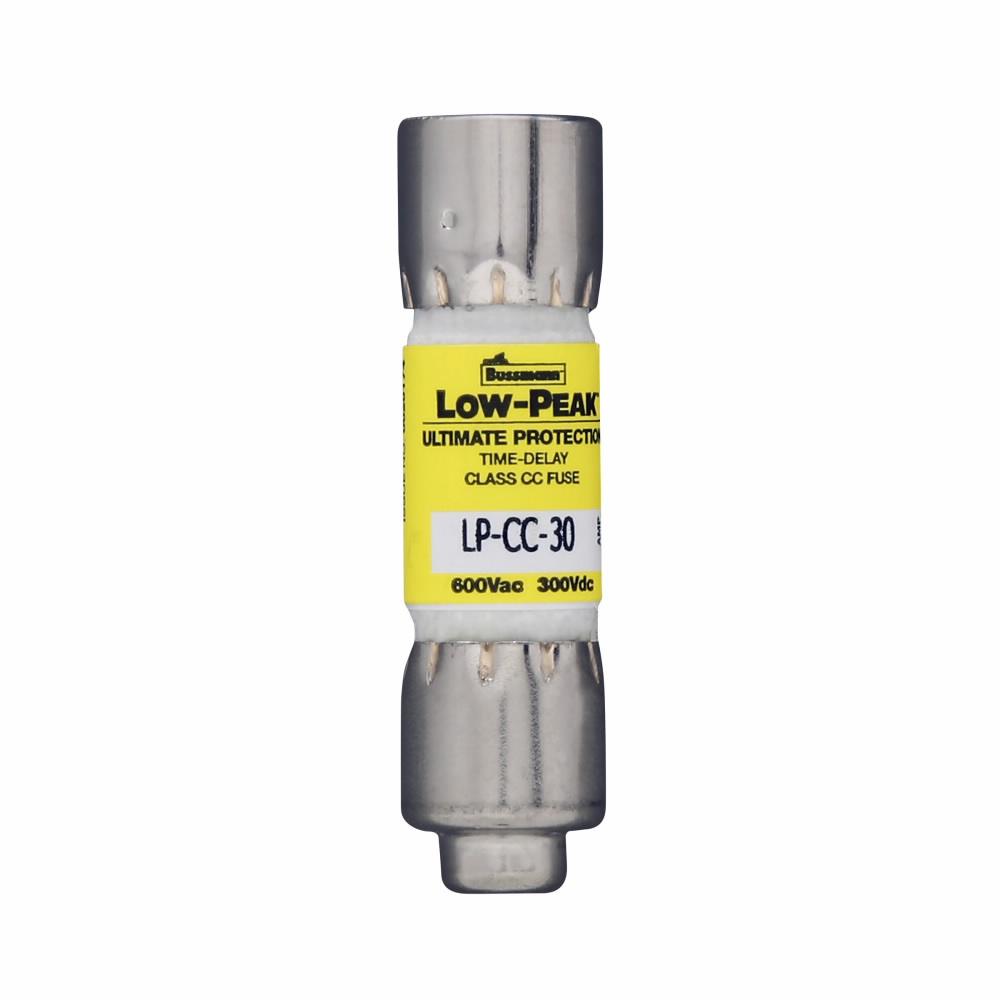

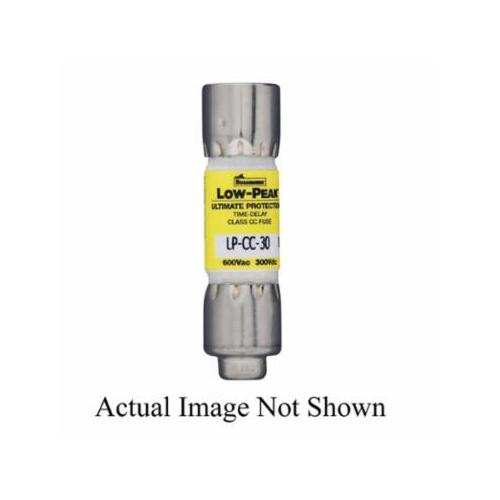

Bussmann LP-CC-7-1/2 Current Limiting Fuse 7.5 A 600 VAC/150 VDC

Product Description

The Bussmann LP-CC-7-1/2 is a current limiting time delay fuse designed for electrical circuit protection. This fuse supports applications up to seven and a half amperes and operates at a voltage rating of 600 VAC and 150 VDC. With an interrupting rating of 20 kA at 150 VDC and 200 kA at 600 VAC, it provides reliable protection for various electrical systems.

• Meets NEC section 110.9 standards
• Compact size for space-saving installation
• Time delay feature minimizes nuisance tripping

Product Highlights

The Bussmann LP-CC fuses offer superior performance ideal for branch circuit protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 7.5 A
• Voltage Rating: 600 VAC/150 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 13/32 in Dia x 1-1/2 in L
• Material: Melamine
• Element: Dual
• Response Time: 12 s at 200%
• Type: Current Limiting
• Series: LP-CC
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
