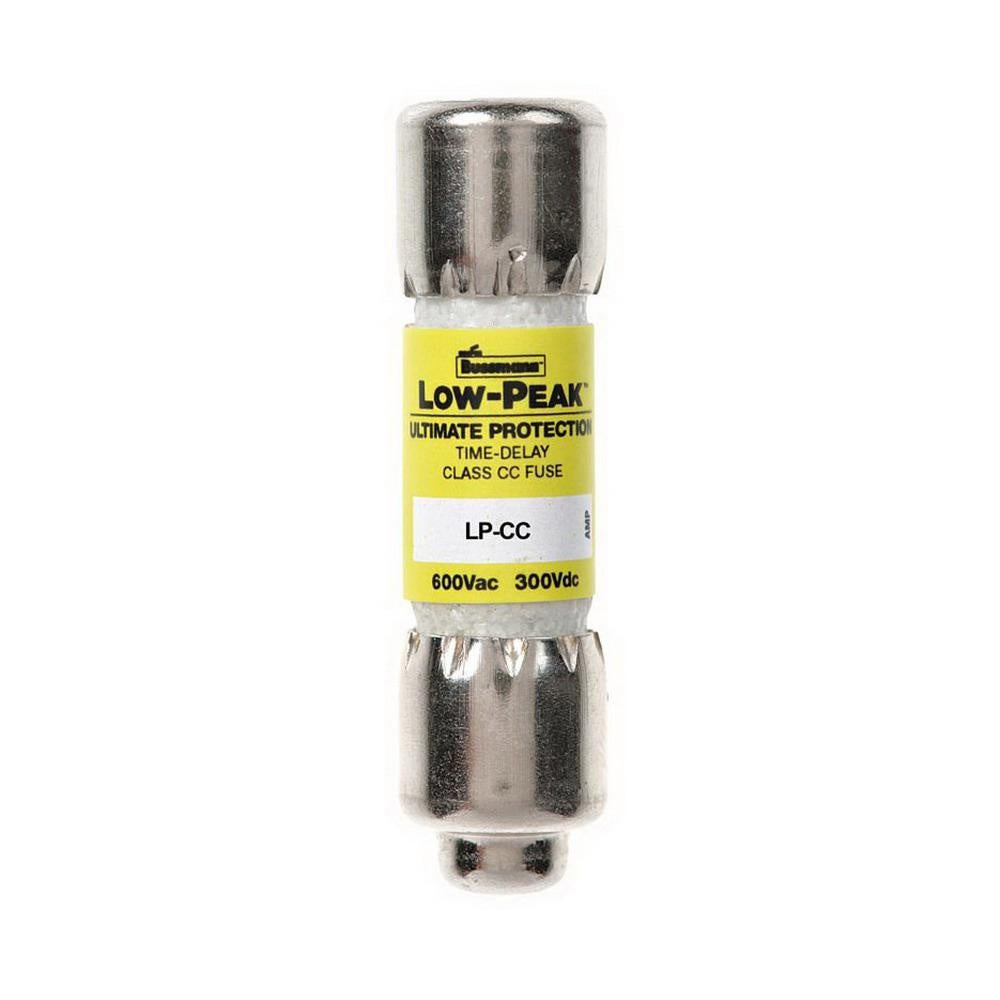

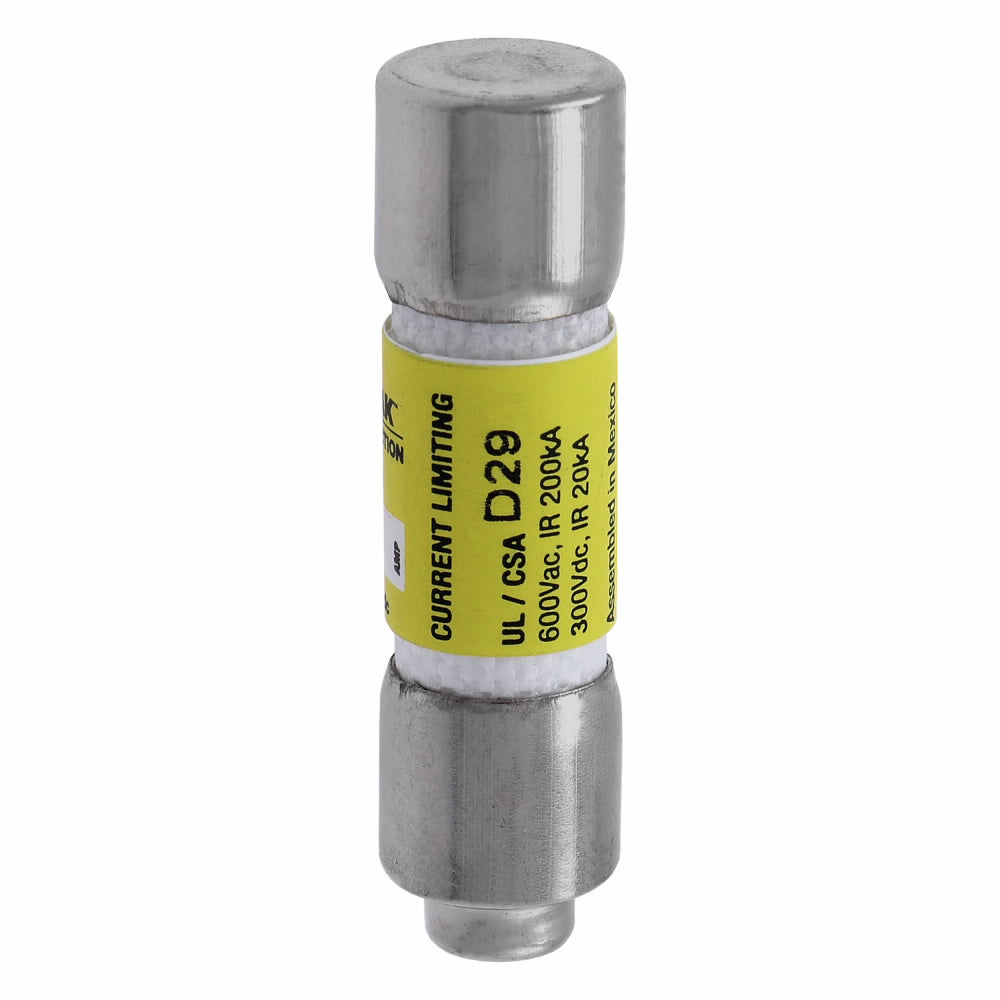

Bussmann LP-CC-2 LW-PEAK CC TD FS

Product Description

The Bussmann LP-CC-2 is a dual-element current-limiting time-delay fuse. It is used primarily in branch circuits and industrial control applications. This fuse is rated for two amperes with an interrupting rating of twenty kilo-amperes at three hundred volts direct current and two hundred kilo-amperes at six hundred volts alternating current.

• Rated for two amps
• Interrupting ratings: 20 kA at 300 Vdc and 200 kA at 600 Vac
• Constructed with a melamine tube

Product Highlights

This fuse provides excellent protection from short-circuit currents, ensuring the safety of downstream components.

Product Information

Standard Information

• Manufacturer: Bussmann
• Part Number: LP-CC-2

Technical Specifications

• Amperage Rating: 2 Amp
• Voltage Rating: 600 Vac; 300 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac; 20 kAIC at 300 Vdc
• Dimensions: 0.41 Inch Diameter x 1.5 Inch Length
• Element Type: Dual
• Construction: Melamine Body
• Response Time: 12 sec at 200% load
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
