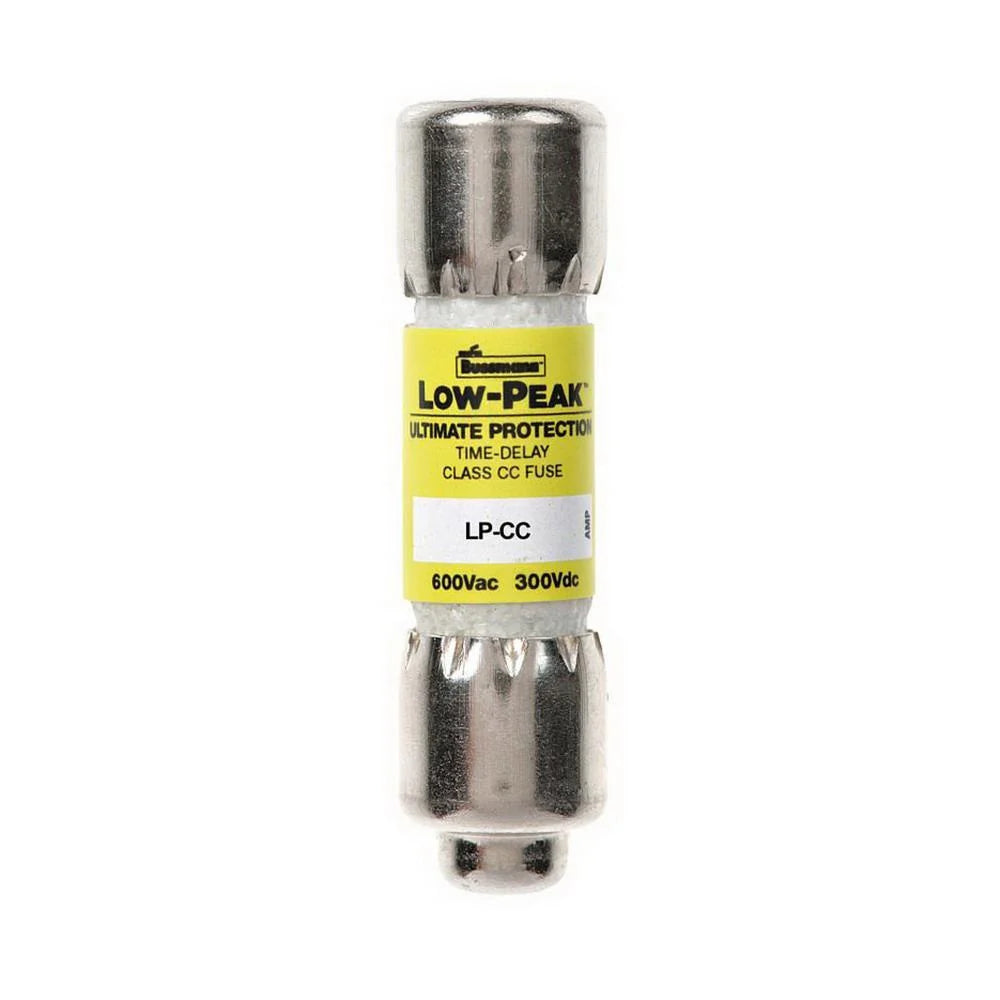

Bussmann LP-CC-1 LW-PEAK CC TD FS

Product Description

The Bussmann LP-CC-1 is a Class CC time-delay fuse rated at 1 Amp and designed for use in a variety of applications including branch circuits and industrial control. This dual-element, current-limiting fuse provides essential protection for electrical equipment by mitigating the damaging effects of short-circuit currents. Its cylindrical design features a melamine body and a ferrule terminal connection.

• Interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc.
• Non-indicating type with a response time of 12 seconds at 200% rated load.
• Compliant with RoHS and UL standards, ensuring safety and reliability.

Product Highlights

This fuse is ideal for protecting small horsepower motors and specialized circuits, featuring selective coordination for minimal electrical disruption.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• MPN: LP-CC-1
• Type: Time Delay, Current-Limiting
• Voltage Rating: 600 Vac, 300 Vdc
• Amperage Rating: 1 Amp
• Dimensions: 0.41 Inch Diameter x 1.5 Inch Length
• Interrupt Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Construction: Melamine tube
