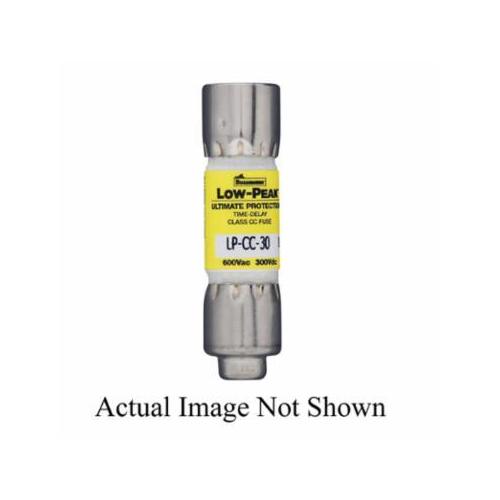

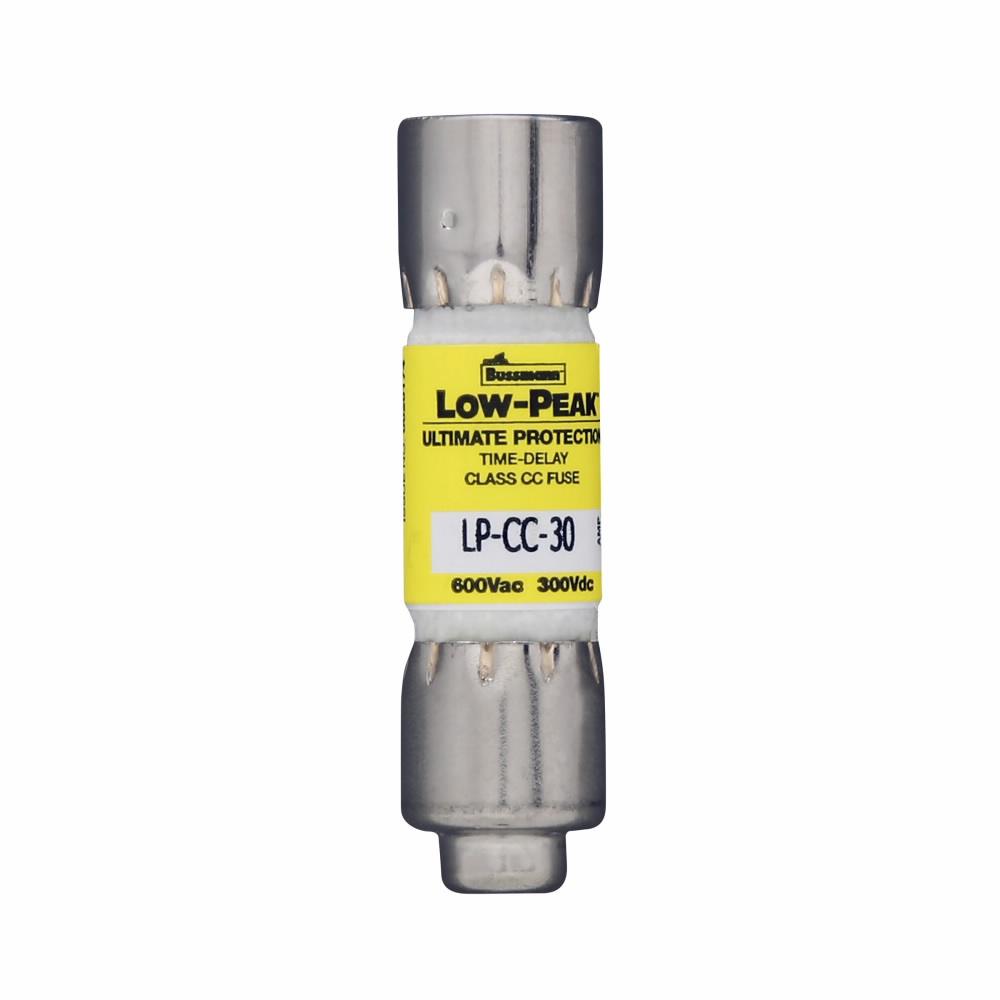

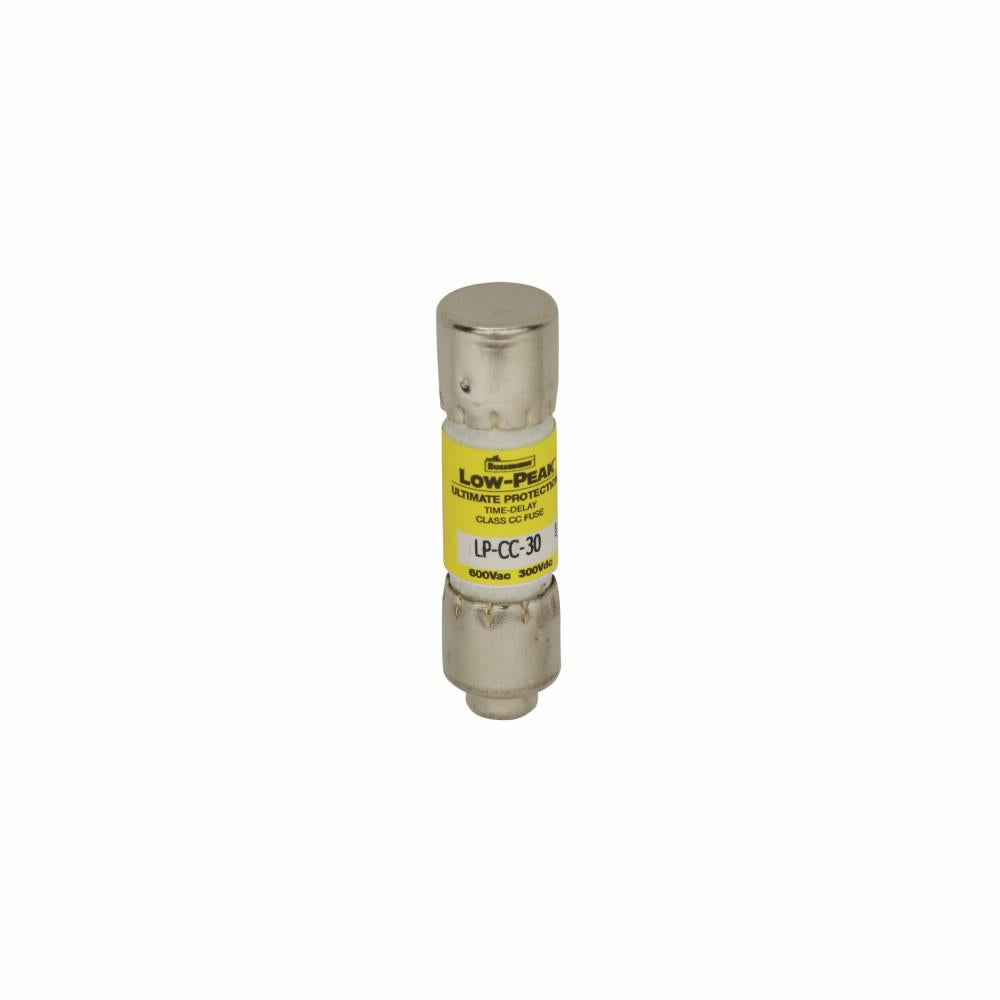

Bussmann LP-CC-1-4/10 Current Limiting Time Delay Fuse 1.4 A 600 VAC/300 VDC

Product Description

The Bussmann LP-CC-1-4/10 is a current limiting time delay fuse designed for reliable circuit protection. This fuse offers exceptional protection at a rated current of 1.4 Amperes and is suitable for both 600 VAC and 300 VDC applications. The LP-CC fuses are known for their efficiency in branch circuit protection.

• Fast short circuit protection
• Compact size with minimal space requirement
• Rejection feature to prevent incorrect installations

Product Highlights

This fuse's dual element design provides both time delay functionality and quick response to overcurrent conditions. Its compact body size allows for easy installation, while the rejection feature ensures compatibility with appropriate fuse holders.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Amperage Rating: 1.4 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kAIC
• Response Time: 12 s at 200%
• Body Size: 13/32 in Dia x 1-1/2 in L
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Class: CC
• Body Type: Cartridge
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Material: Melamine Tube
• Series: LP-CC
• Element: Dual
