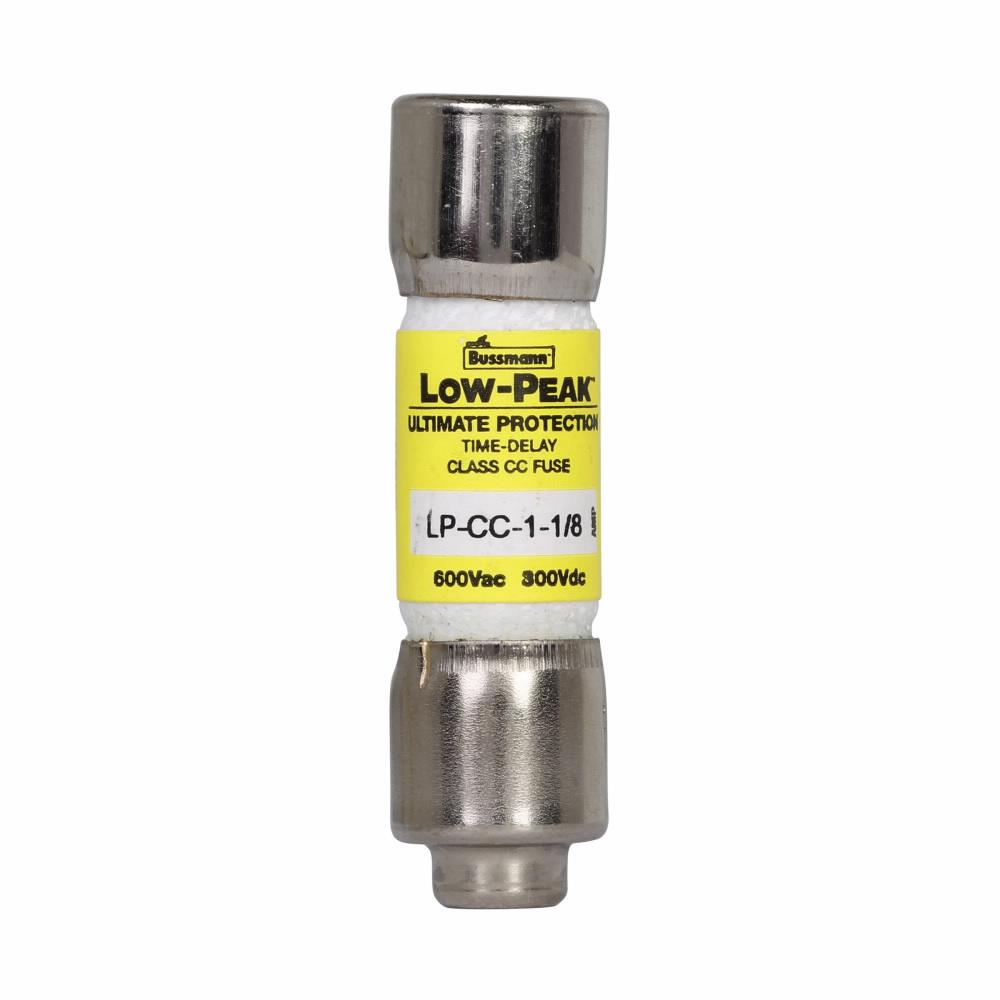

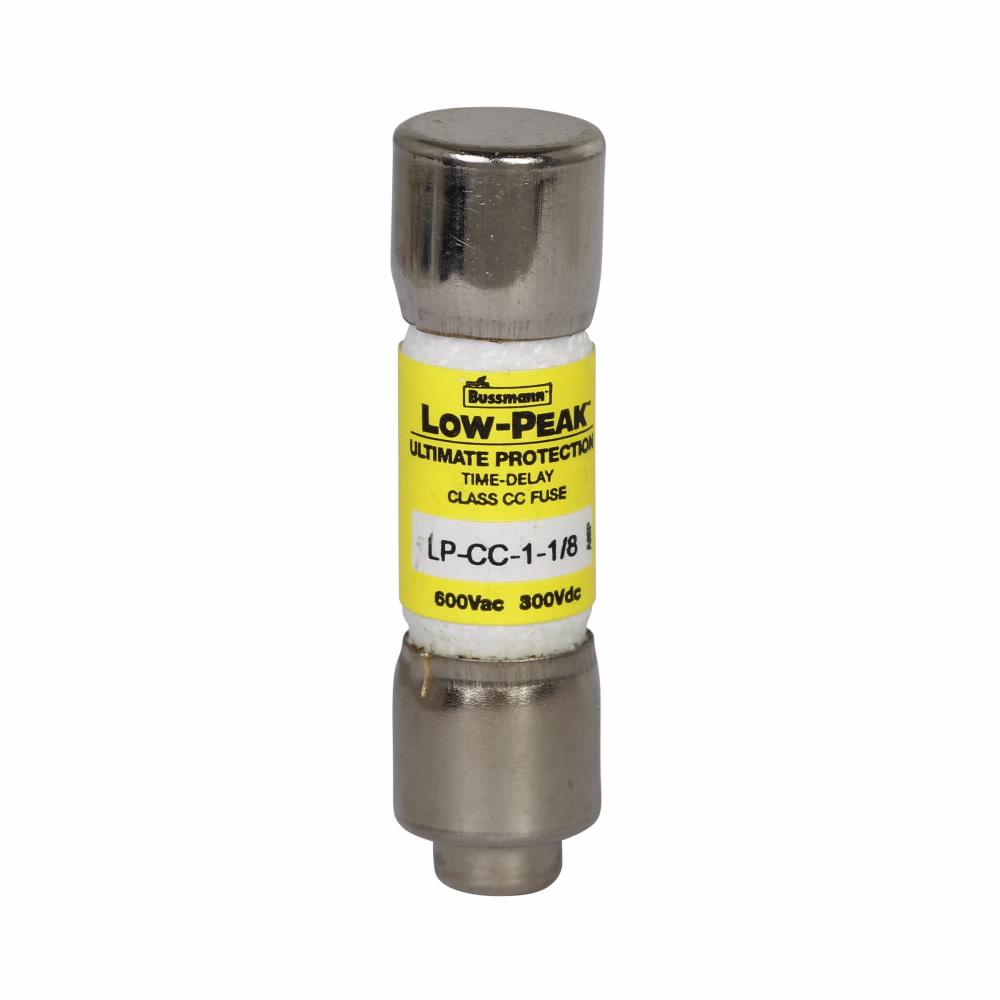

Bussmann LP-CC-1-1/8 Current Limiting Time Delay Fuse 1.125 A 600 VAC/300 VDC

Product Description

Bussmann offers the LP-CC-1-1/8, a current limiting time delay fuse with a rating of 1.125 amperes and voltage capabilities of 600 VAC or 300 VDC. This Class CC fuse is designed to provide exceptional protection for your circuits.

• Fast short circuit protection with dual element time delay performance.
• Compact design with dimensions of thirteen thirty-seconds of an inch in diameter by one and a half inches in length.
• Rejection feature to prevent improper fuse insertion.

Product Highlights

The Bussmann LP-CC-1-1/8 fuse meets the needs of various applications requiring a space-saving design and reliable circuit protection.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 1.125 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 200/20 kAIC
• Response Time: 12 s at 200%
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cartridge
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Material: Melamine Tube
• Rejection/Non-Rejection: Rejection
• Element: Dual
• Series: LP-CC
• Terminal Type: Ferrule End
• Type: Current Limiting Time Delay
