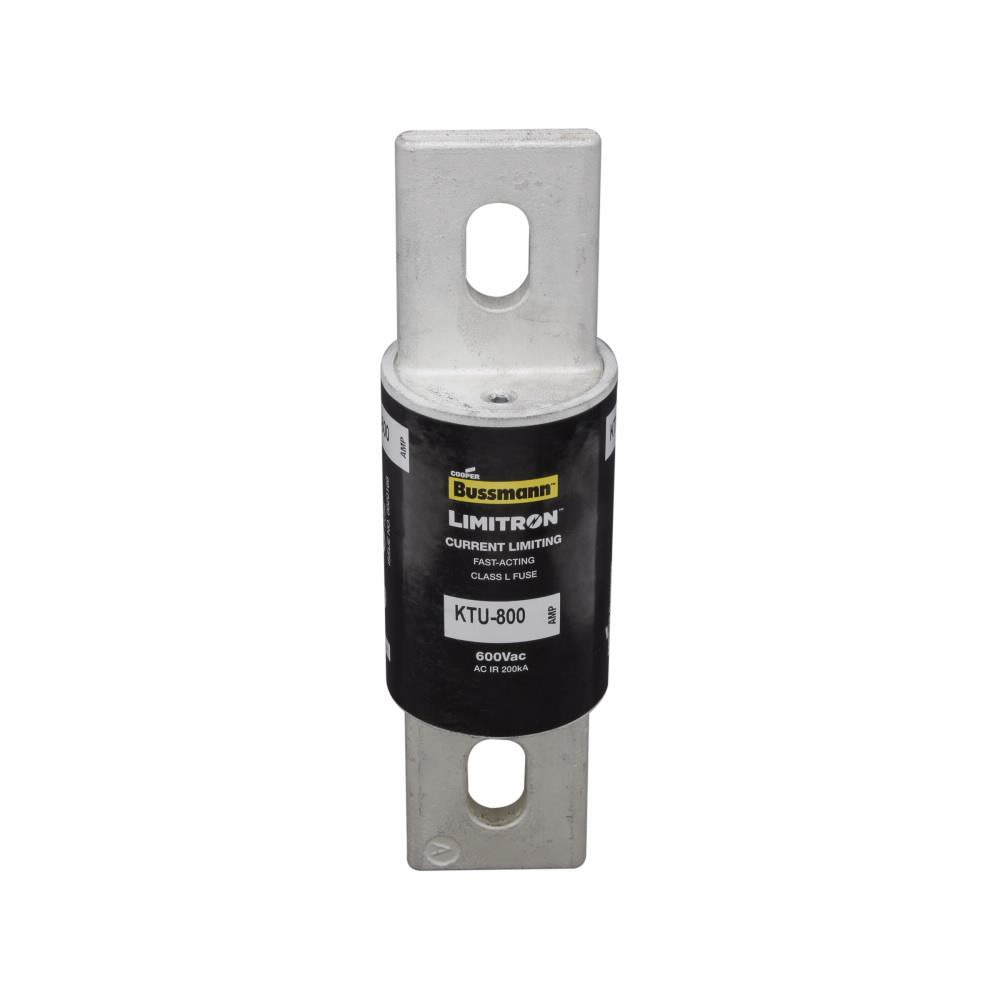

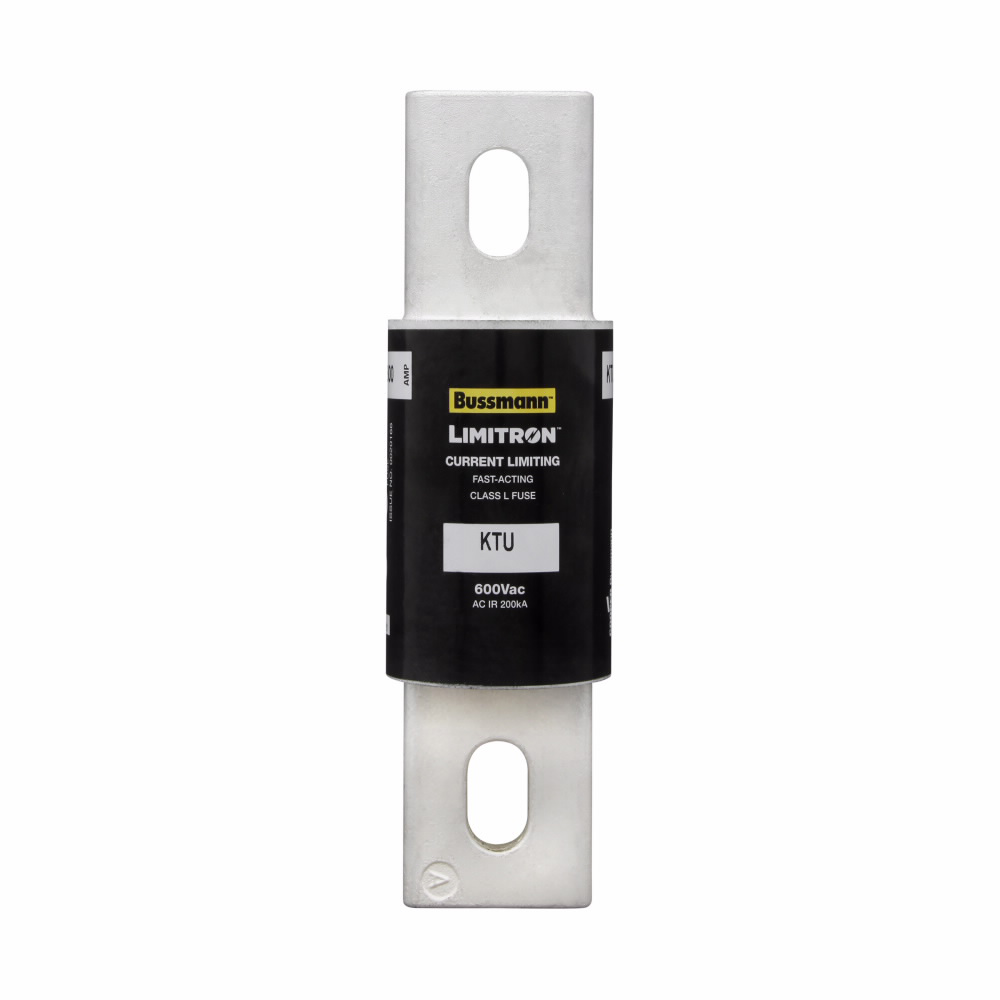

Bussmann KTU-800 Limitron Class L Fast Acting Fuse 800A 600V 200kAIC

Product Description

The Bussmann KTU-800 is a Limitron Class L Fast Acting Fuse from Bussmann. This fuse has a rating of 800 Amperes and operates at 600 Volts. It features bolted blade end terminals, ensuring reliable connections. This fuse is suitable for applications where fast acting and current limiting capabilities are essential.

• Rated for 800 A at 600 V
• 200 kAIC interrupt rating
• Constructed with a melamine glass tube

Product Highlights

This fast acting fuse is designed to prevent damage from short circuit events while providing superior current limitation.

Product Information

Standard Information

• Brand: Bussmann
• MPN: KTU-800

Technical Specifications

• Type: Current Limiting, Fast Acting
• Class: Class L
• Diameter: 2.5 inches
• Length: 8.63 inches
• Voltage Rating: 600 V
• Amperage Rating: 800 A
• Interrupt Rating: 200 kAIC
• Material: Melamine Glass Tube
• Mounting Type: Bolted-On
• End Type: Bolted Blade
