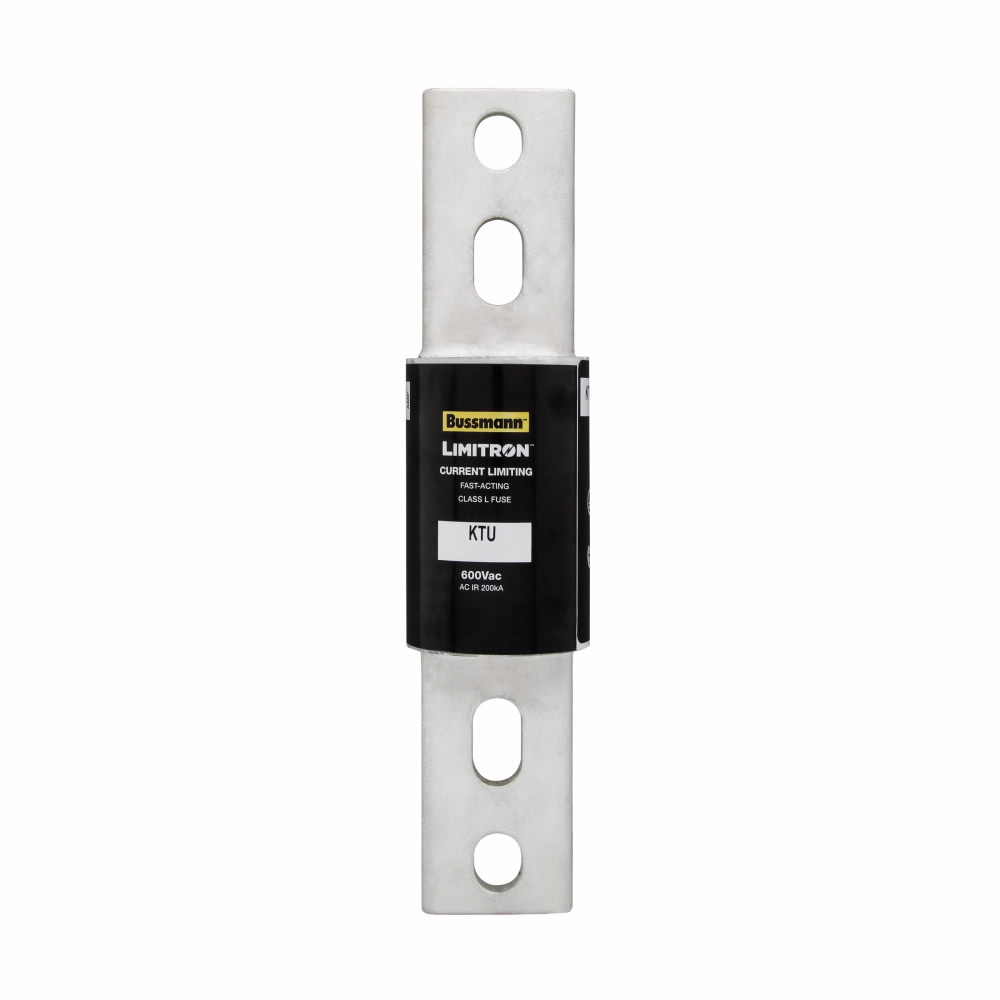

Bussmann KTU-1200 Limitron Class L Fast Acting Fuse 1200 Amp 600 Volt 200 kAIC

Product Description

The Bussmann KTU-1200 from Eaton Mfg. is rated for 1200 Amps and designed as a Class L fast acting fuse. It provides effective short circuit protection, which is crucial for keeping electrical systems safe and efficient. This fuse features a compact size with a diameter of two and one-half inches and a length of ten and three-quarters inches, allowing for easy installation in various systems.

• Current limiting capability for enhanced protection.
• Designed for large distribution switchboards and power panelboards.
• Rated for 200 kAIC at 600 Vac.

Product Highlights

This fuse is ideal for critical industrial and commercial applications requiring specific current limitations. It is built with a melamine glass tube and includes silver-plated end bells for efficient operation.

Product Information

Standard Information

• Brand: Bussmann
• MPN: KTU-1200

Technical Specifications

• Voltage: 600 Volt
• Amperage: 1200 Amp
• Diameter: 2.5 inches
• Length: 10.75 inches
• Weight: 4.25 lb
• Material: Melamine Glass Tube
• Mounting Type: Bolt-On
• Interrupt Rating: 200 kAIC
