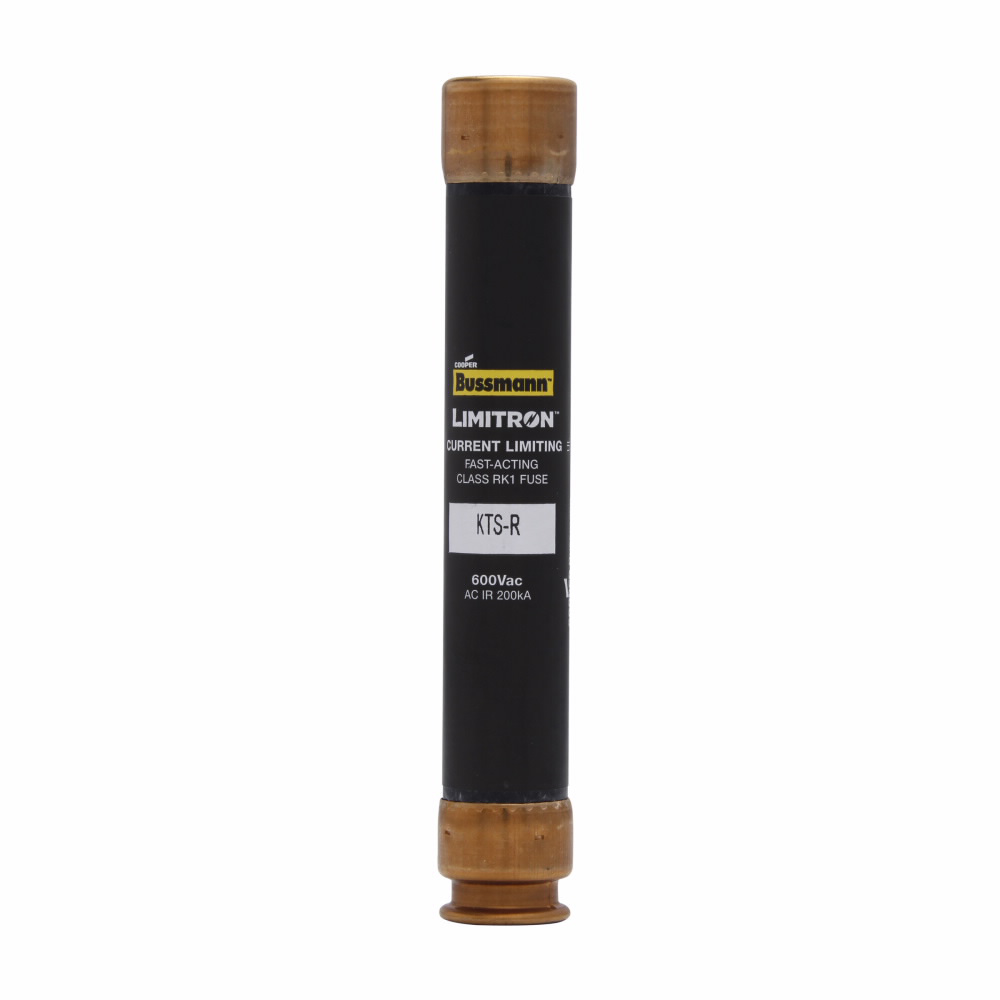

Bussmann KTS-R-6 Class RK1 Limitron Fast Acting Fuse

Product Description

The Bussmann KTS-R-6 Class RK1 Limitron Fast Acting Fuse is designed for use in panelboards where overcurrent protection is required. This fuse is rated at six amps and is non-indicating. The fuse features a ferrule end connection on both sides, allowing for easy installation. It can handle interrupt ratings of up to two hundred kAIC at six hundred volts AC. The fuse is made with a melamine glass tube, ensuring durability and reliability in various applications.

• Current limiting fast acting fuse
• Class RK1 rating for industrial applications
• Ferrule end connection for easy installation

Product Highlights

This fuse is suitable for use in panelboards and can protect against overcurrent situations effectively.

Product Information

Standard Information

• Brand: Bussmann
• MPN: KTS-R-6

Technical Specifications

• Diameter: 0.81 inches
• Length: 5 inches
• Voltage Rating: 600 volts
• Amperage Rating: 6 amps
• Interrupt Rating: 200 kAIC
• Material: Melamine glass
• End Type: Ferrule
• Applications: Panelboards
