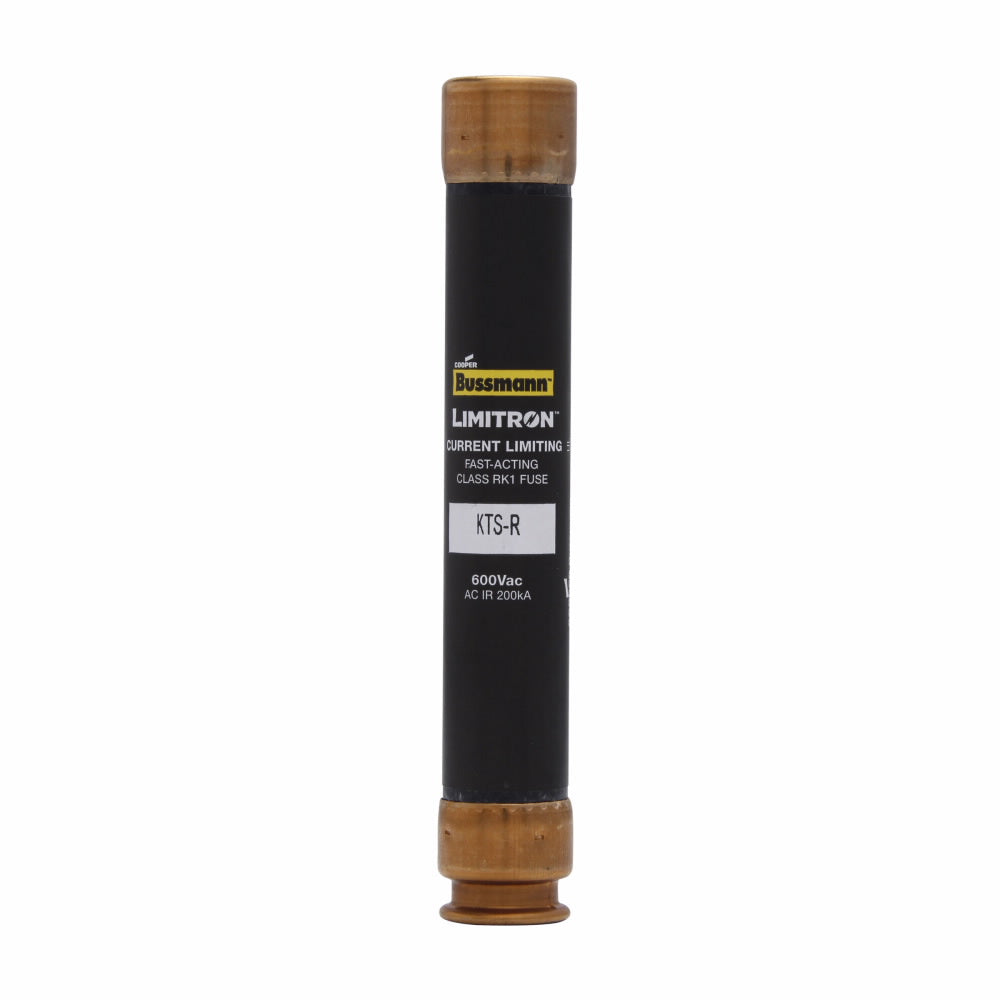

Bussmann KTS-R-4 Limitron Fast Acting Fuse 4 Amp

Product Description

The Bussmann KTS-R-4 is a Class RK1, fast-acting, current limiting fuse. This 4A rejection style fuse has an interrupting rating of 200kA at 600Vac, and is well-suited for circuits and loads with no heavy surge currents of motors, transformers, solenoids and welders.

• Fast-acting
• Current limiting
• Rejection style fuse

Product Highlights

The Bussmann KTS-R-4 fuse provides advanced protection with its current-limiting capabilities.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTS-R-4
• Country of Origin: US

Technical Specifications

• Amperage: 4 Amp
• Interrupt Rating: 200 kAIC
• Type: Current Limiting,Fast Acting
• Voltage: 600 Volt
• Brand: Bussmann
• Sub Brand: Bussmann Series
• Class: Class RK1
• Weight: 0.13 lb
• Height: 5 Inch
• Length: 0.8 Inch
• Product Name: Eaton Bussmann series KTS-R fuse
• Catalog Number: KTS-R-4
• UPC: 051712417303
• EAN: 5027590416818
• Product Length/Depth: 5 in
• Product Height: 0.8 in
• Product Width: 0.8 in
• Product Weight: 0.145 lb
• Warranty: Not Applicable
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 4 A
• Voltage rating: 600 V
• Number of elements: 1
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Special features: Knife blade
• UNSPSC Code: 39120000
• Application: Panelboards
• Current Rating: 4 A
• Dimensions: 5.00 in H X 0.80 in W X 0.80 in L
• Indicator: Non-indicating
• Manufacturer Part Number: KTS-R-4
• Shape: RECTANGULAR
• Unit of Measure: EA
• UPC Code: 51712417303
• Ampere: 4 A
• Interrupt rating: 200 kA
• Speed: Fast Blow
• Class RK1 Fuse: Class RK1
• Cartridge Fuses: Cartridge Fuses
• Approvals: CE, UL, CSA
• Item weight: 2.2 oz
• Marque: Bussmann
• Matériau: Fusibles
• Nombre d’articles: 1
• Fabricant: Cooper Bussmann
• Nombre d’unités: 1 Total
• Numéro de modèle: KTS-R-4
• Part Number: KTS-R-4
• Composants inclus: Fusible.
• Type de matériau: Fusibles
• Country of Origin: United States
• Category: Business & Industrial\Electrical Equipment & Supplies\Fuses\Fuses & Links
• Condition: New
