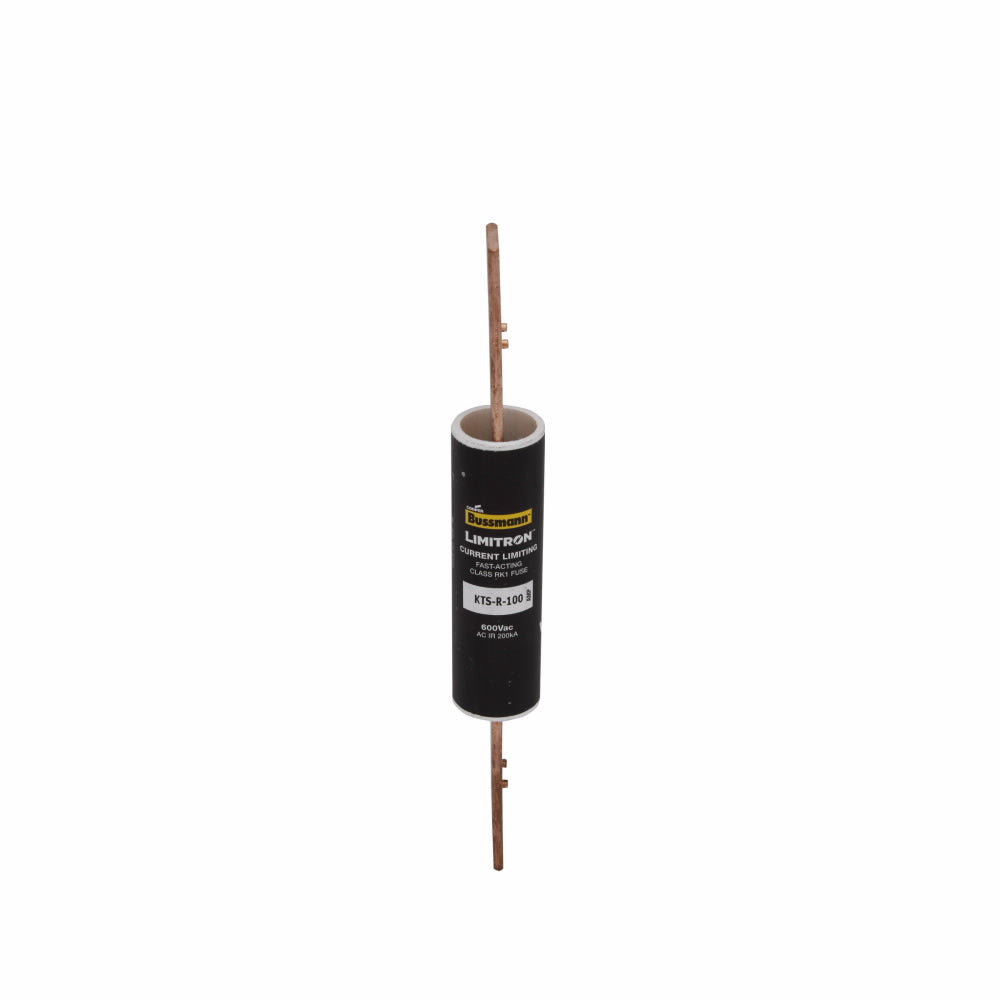

Bussmann KTS-R-100 KTS-R Fuse 100A

Product Description

The BUSSMANN KTS-R-100 is a Class RK1 fuse from the Eaton Bussmann Series. This fast-acting, current limiting, rejection style fuse has an interrupting rating of 200 kA at 600 Vac and is rated for 100A. It is designed to protect circuits and loads without heavy surge currents.

• Fast-acting
• Current limiting
• Rejection style fuse

Product Highlights

The BUSSMANN KTS-R-100 fuse provides advanced protection with its current-limiting capabilities.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTS-R-100

Technical Specifications

• IGCC: 4980
• Size: 1.00 In Diameter X 7.88 In Length
• Type: Fuse
• Class: Class RK1 Fuse
• Element: Single
• Material: Melamine glass tube
• Standard: CE Marked
• Connection: Blade end x blade end
• Dimensions: 7.8800 IN X 1.0000 IN X 1.0000 IN
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Family group: FUSES/ACCESSORIES
• Manufacturer: BUSSMANN
• Voltage Rating: 600 V
• Amperage Rating: 100 A
• Interrupt Rating: 200 kAIC at 600 Vac
• Special Features: 70/30 brass end cap
• Product Name: Eaton Bussmann series KTS-R fuse
• Catalog Number: KTS-R-100
• UPC: 051712417167
• Product Length/Depth: 7.88 in
• Product Height: 1 in
• Product Width: 1 in
• Compliances: CE Marked
• Number of elements: 1
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Series: KTS-R
• Mpn: KTS-R-100
• Gtin: 51712417167
• Voltage: 600
• Catalog / Class: RK1
• Speed: Fast Blow
• SKU: KTSR-100
• Ampere: 100 A
• Voltage rating: 600 VAC
• Interrupt rating: 200 kA
• Shape: Cartridge Blade Fuses
• Approvals: CE, UL, CSA
• Item weight: 6.4 oz
