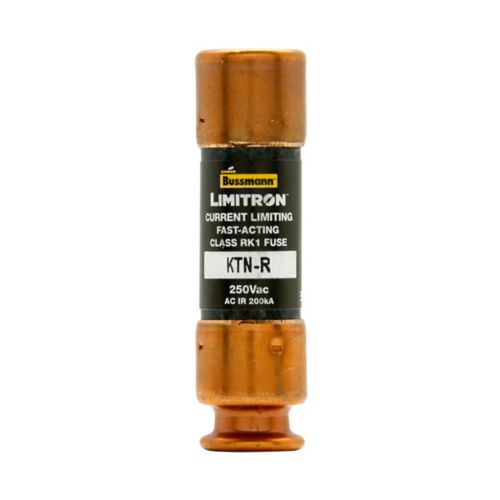

Bussmann KTN-R-3 Fuse 3 A

Product Description

The Eaton BUSSMANN KTN-R-3 is a Class RK1 fuse with fast-acting, current limiting capabilities. This rejection style fuse has an interrupting rating of 200 kA at 250 Vac. Ideal for industrial or commercial applications with specific current limitation requirements.

• Fast-acting
• Current limiting
• Rejection style fuse

Product Highlights

The BUSSMANN KTN-R-3 fuse provides advanced protection and is ideal for critical industrial or commercial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTN-R-3
• Country of Origin: United States

Technical Specifications

• IGCC: 4980
• Size: 0.56 In Diameter X 2.00 In Length
• Type: Fuse
• Class: Class RK1 Fuse
• Vendor: 171200
• Element: Single
• Material: Melamine glass tube
• Standard: Not Applicable
• Sub Brand: Bussmann Series
• Brand Name: Eaton
• Connection: Ferrule end x ferrule end
• Dimensions: 2.0000 IN X 0.5600 IN X 0.5600 IN
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Family group: FUSES/ACCESSORIES
• Manufacturer: BUSSMANN
• Voltage Rating: 250 V
• Amperage Rating: 3 A
• Interrupt Rating: 200000 Amp (RMS Symmetrical); 10000 Amp at 250 Vdc
• Special Features: 70/30 brass end cap
• WES Product code: 2770455075
• Product Length/Depth: 2 in
• Product Height: 0.56 in
• Product Width: 0.56 in
• Product Weight: 0.1 lb
• Warranty: Not Applicable
• Compliances: Not Applicable
• Product Type: Fuse
• Number of elements: 1
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Ampere: 3 A
• Voltage rating: 250 VAC
• Interrupt rating: 200 kA
• Speed: Fast Blow
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA
• Item weight: 0.69 oz
• UNSPSC Code: 39120000
• Current Rating: 3 A
• Indicator: Non-indicating
• Unit of Measure: EA
• Voltage Rating - DC: 250 VDC
• Response Time: Fast Blow
• Series: BUSSMANN
• Applications: Electrical, Industrial
• Packaging: Bulk
• Mounting Type: Requires Holder
• Operating Temperature: -40°C ~ 85°C
• Fuse Type: Cartridge
• Breaking Capacity @ Rated Voltage: 200kA AC, 100kA DC
• Package / Case: Cartridge, Non-Standard
• Size / Dimension: 0.560" Dia x 2.000" L (14.22mm x 50.80mm)
• Country of Origin: United States
