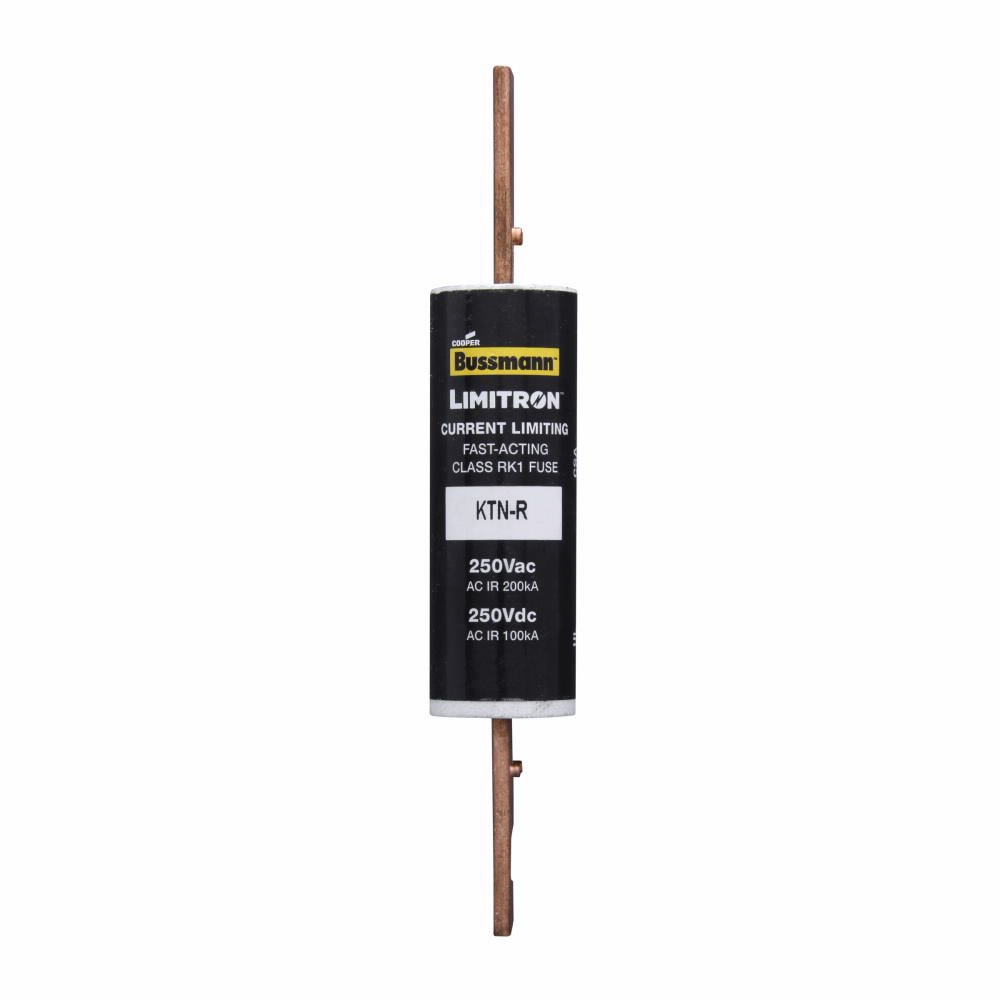

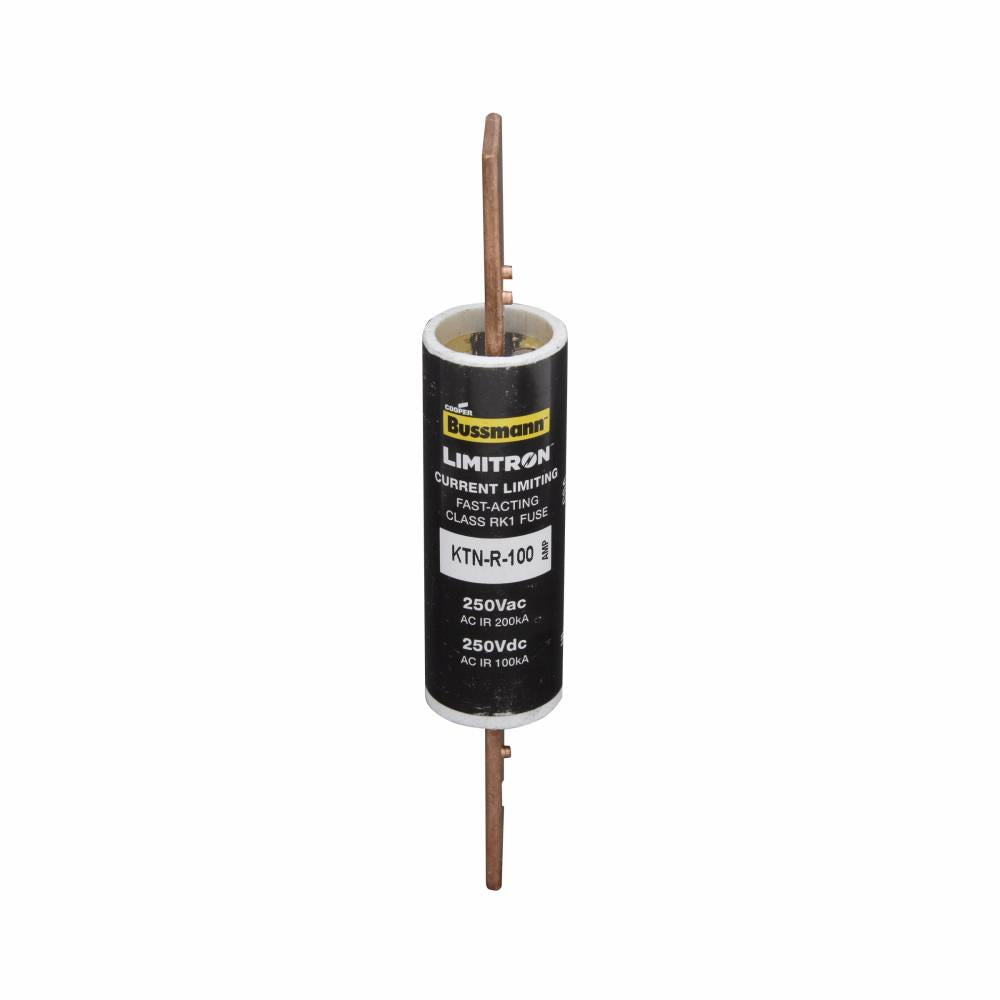

Bussmann KTN-R-100 Fast Acting Fuse 100 Amp 250 VAC

Product Description

The Bussmann KTN-R-100 is a fast acting fuse designed for high-performance electrical systems. This fuse has a rating of 100 Amps and operates at 250 Volts AC and DC. It features a blade terminal design and includes CE, CSA C22.2, and UL 248-12 certifications. The fuse is ideal for use in panelboards to protect circuits from overcurrent conditions.

• Fast acting type with current limiting capabilities.
• Designed for 250 Volts AC and DC systems.
• Rated for a high interrupting capacity of 100 kAIC at 250 Volts AC.

Product Highlights

This Bussmann fuse provides effective protection for various electrical applications, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: KTN-R-100
• Amperage Rating: 100 Amps
• Voltage Rating: 250 VAC/VDC
• Type: Fast Acting Current Limiting Low Voltage
• Body Size: 1.06 inches diameter x 5.88 inches length
• Material: Melamine Glass
• Class: RK1
• Interrupt Rating: 100/200 kA
• End Type: Blade
