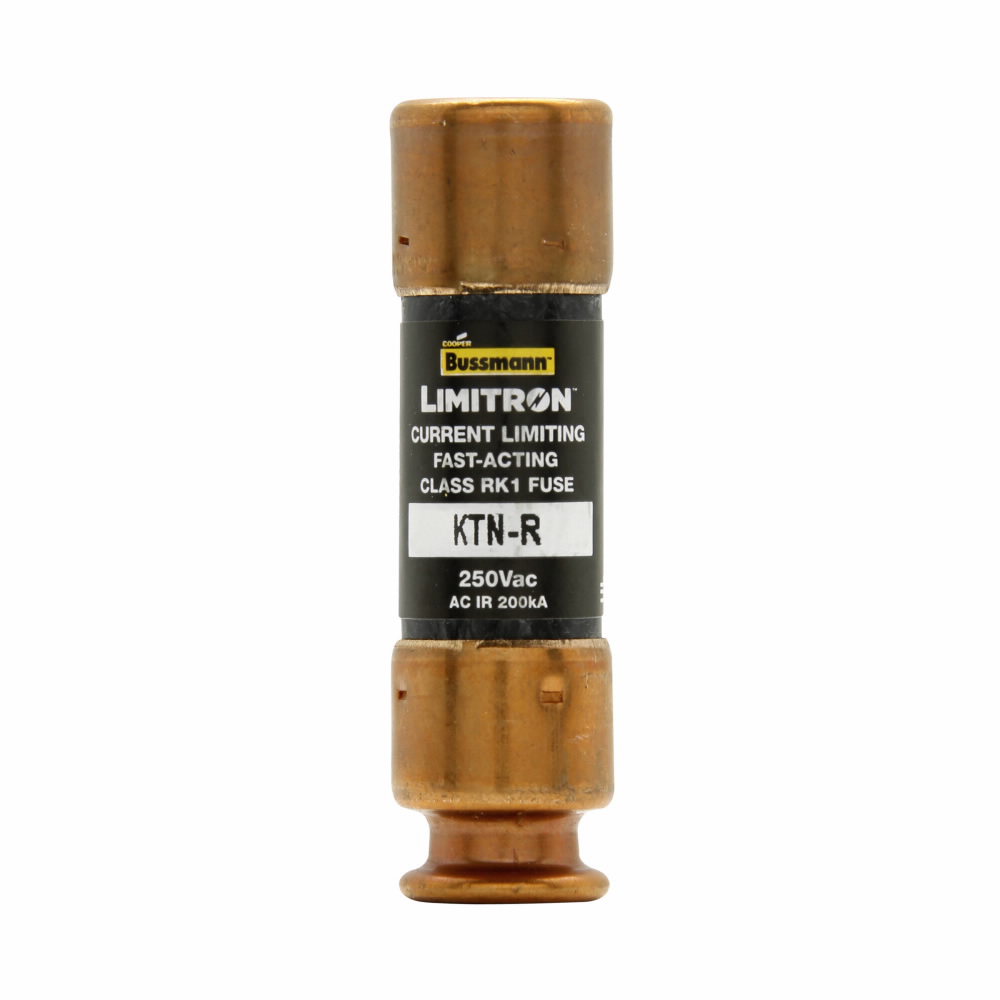

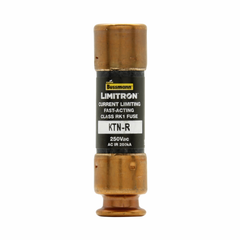

Bussmann KTN-R-10 Fuse 10 A

Product Description

The Bussmann KTN-R-10 is a Class RK1, fast-acting, current limiting fuse. This rejection style fuse has an interrupting rating of 200 kA at 250 Vac. It is ideal for industrial or commercial applications with specific current limitation requirements.

• Fast-acting
• Current limiting fuse
• Rejection style fuse

Product Highlights

The Bussmann KTN-R-10 fuse provides short circuit protection 10X faster than basic circuit breakers or fuses.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTN-R-10
• Country of Origin: United States

Technical Specifications

• Type: Fuse
• Class: Class RK1
• Element: Single
• Material: Melamine glass tube
• Standard: CE,CSA C22.2,UL 248-12
• Connection: Ferrule end x ferrule end
• Application: Panelboard
• Manufacturer: BUSSMANN
• Voltage Rating: 250 V
• Amperage Rating: 10 A
• Interrupt Rating: 200 kA
• Special Features: 70/30 brass end cap
• Catalog Number: KTN-R-10
• UPC: 051712407038
• EAN: 5027590446082
• Number of elements: 1
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Body Material: Thermoset
• Brand: Bussmann by Eaton
• Current Rating: 10 A
• Indicator: Non-indicating
• Primary Type: Single Use Fuses
• Speed: Fast Acting sec
• Termination: Cartridge
• End Type: Ferrule
• TC Connection: Ferrule end x ferrule end
• Voltage: 250 Volt
• Sub Brand: Limitron
• Mounting Type: Holder
• Body Style: Cartridge
• Terminal Type: Ferrule
