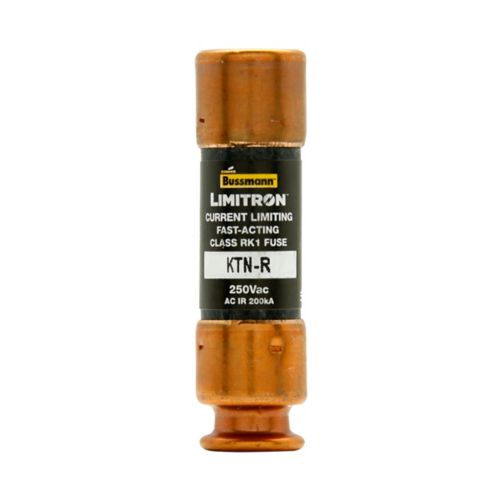

EATON Bussmann KTN-R-1 Fuse 1 A
EATON Bussmann KTN-R-1 Fuse 1 A

Bussmann KTN-R-1 Fuse 1 A

EATON
Brand: EATON
SKU: KTN-R-1
Availability: In Stock

Ships same day if ordered by 12 pm
$89.47
$89.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton Bussmann Series KTN-R fuse, MPN KTN-R-1, is a fast-acting, current limiting, rejection style fuse. It is ideal for critical industrial or commercial applications that have specific current limitation requirements. It has an interrupting rating of 200 kA at 250 Vac.

  • Fast-acting
  • Current limiting
  • Rejection style fuse
  • Interrupting rating of 200 kA at 250 Vac
  • With minimal time delay

Product Highlights

The Bussmann KTN-R series fuse provides advanced protection and is ideal for critical industrial or commercial applications.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: KTN-R-1
Technical Specifications
Catalog Number
KTN-R-1
UPC
051712407007
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.015 lb
Warranty
Not Applicable
Compliances
Not Applicable
Product Type
Fuse
Amperage Rating
1 A
Voltage rating
250 V
Material
Melamine glass tube
Number of elements
1
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
With minimal time delay
Interrupt rating
200 kA
Speed
Fast Blow
Shape
Cartridge Fuses
Approvals
CE, UL, CSA
Dimensions
0.56" Dia x 2" L (14.22x50.8mm)
Item weight
0.69 oz
Primary brand
Eaton
Secondary brand
Cooper Bussmann
Main function
Fuse
Product series / family name
LV branch circuit fuses
Sub-range name
Limitron fuse cartridges
Functions
Low-Voltage (LV) fast-acting current-limiting fuse cartridge
Design
Class RK1
Rated current
1A
Rated voltage (AC)
250Vac
Short circuit breaking rating
200kA (RMS symmetrical)
Technical compatibility with
panelboards
Order code / Manufacturer SKU
KTN-R-1
Manufacturer product status
Commercialized
Compliant with standard(s)
UL Listed Std. 248-12 Class RK1 Guide JDDZ File E4273 CSA Certified Class 1422-02 File 53787 CE
Voltage Rating - DC
250 VDC
Response Time
Fast Blow
Series
BUSSMANN
Applications
Electrical, Industrial
Packaging
Bulk
Mounting Type
Requires Holder
Operating Temperature
-40 4. 0.560" Dia x 2.000" L (14.22mm x 50.80mm)
Fuse Type
Cartridge
