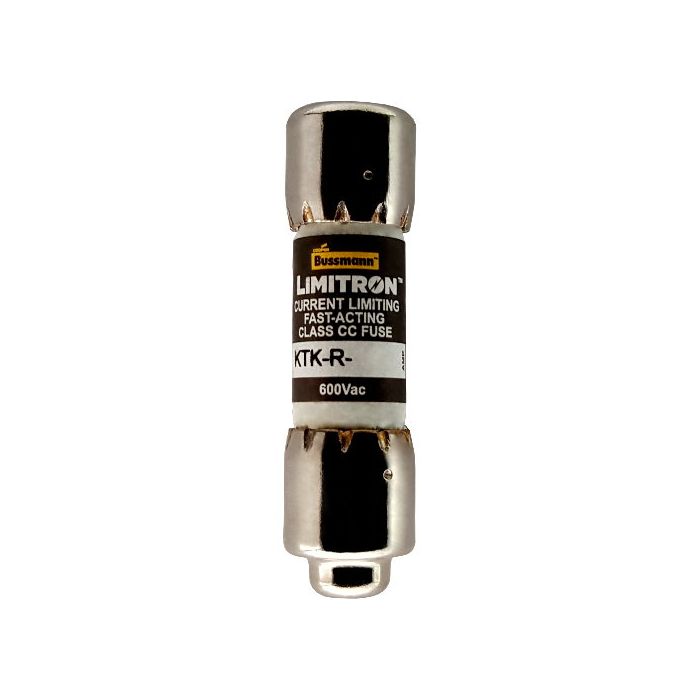

Bussmann KTK-R-7 Eaton Bussmann Series Ktk-R Fuse 7 A

Product Description

The Eaton Bussmann Series KTK-R fuse by BUSSMANN, MPN KTK-R-7, is a Class CC, fast-acting, dual-element, current limiting fuse with a 7 Amp rejection style. It has an interrupting rating of 200kA at 600Vac. Ideal for critical industrial or commercial applications with specific current limitation requirements.

• Fast-acting
• Dual-element
• Current limiting
• Rejection style

Product Highlights

The Bussmann KTK-R series fuse is ideal for industrial controls, street lighting, and commercial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-R-7

Technical Specifications

• Product Name: Eaton Bussmann series KTK-R fuse
• Catalog Number: KTK-R-7
• UPC: 051712420662
• EAN: 5027590445719
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Weight: 0.02 lb
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Fuse
• Amperage Rating: 7 A
• Number of elements: Dual
• Class: Class CC
• Interrupt rating: 200 kAIC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end Ferrule
• Response time: See time current curve
• Material: Melamine tube
• Packaging type: Standard
• Quantity: 10
• Voltage rating: 600 V
• Type: Current-limiting fast-acting fuse
• Special features: Rejection style
• Application: Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
• Amps: 7
• Volts AC: 600
• Speed: Fast Acting
• Physical Size: 0.41" x 1.5"
• Voltage: 600 Volts
• Ampere: 7 A
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse KLKR, Mersen ATMR
• Dimensions: 0.41" Dia x 1.5" L (10.41x38.1mm)
• Item weight: 0.32 oz
