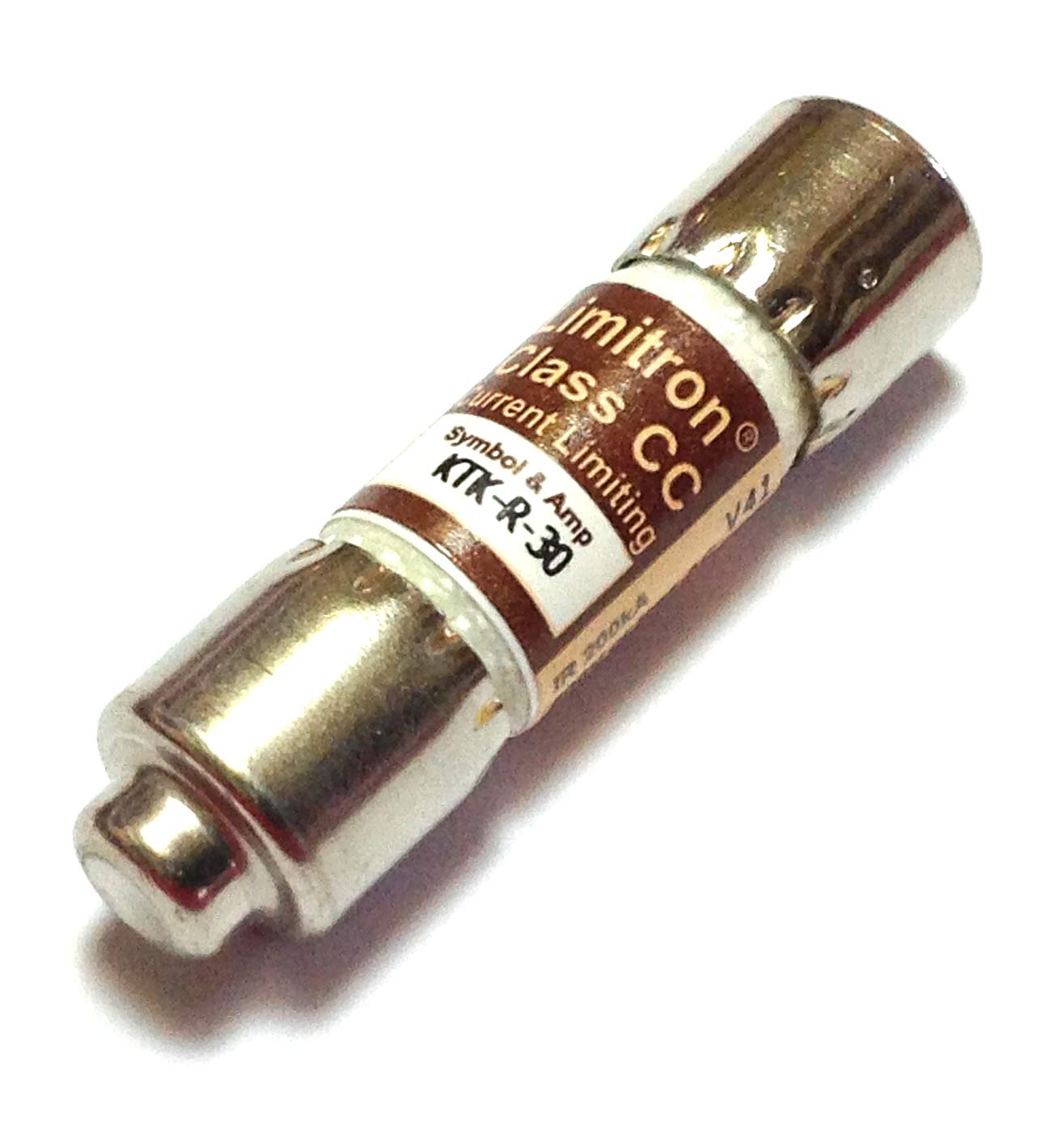

Bussmann KTK-R-30 Fast-Acting Fuse 600 V 30 A

Product Description

The Bussmann KTK-R-30 is a current limiting fast-acting fuse designed for electrical protection. Rated at 30 A and 600 V, this fuse provides reliable short circuit protection. The cylindrical body measures approximately ten point four millimeters in diameter and thirty-eight point one millimeters in length.

• Fast-acting design protects against equipment damage
• 200 kA interrupt rating suitable for large capacity systems
• Rejection feature prevents insertion into lesser rated holders

Product Highlights

Ideal for industrial and commercial applications that require precise current protection.

Product Information

Standard Information

• Brand: Bussmann
• Model: KTK-R-30

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 30 A
• Interrupt Rating: 200 kAIC
• Body Size: 13/32 inches diameter x 1.5 inches length
• Material: Melamine Tube
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Indicating/Non-Indicating: Non-Indicating
