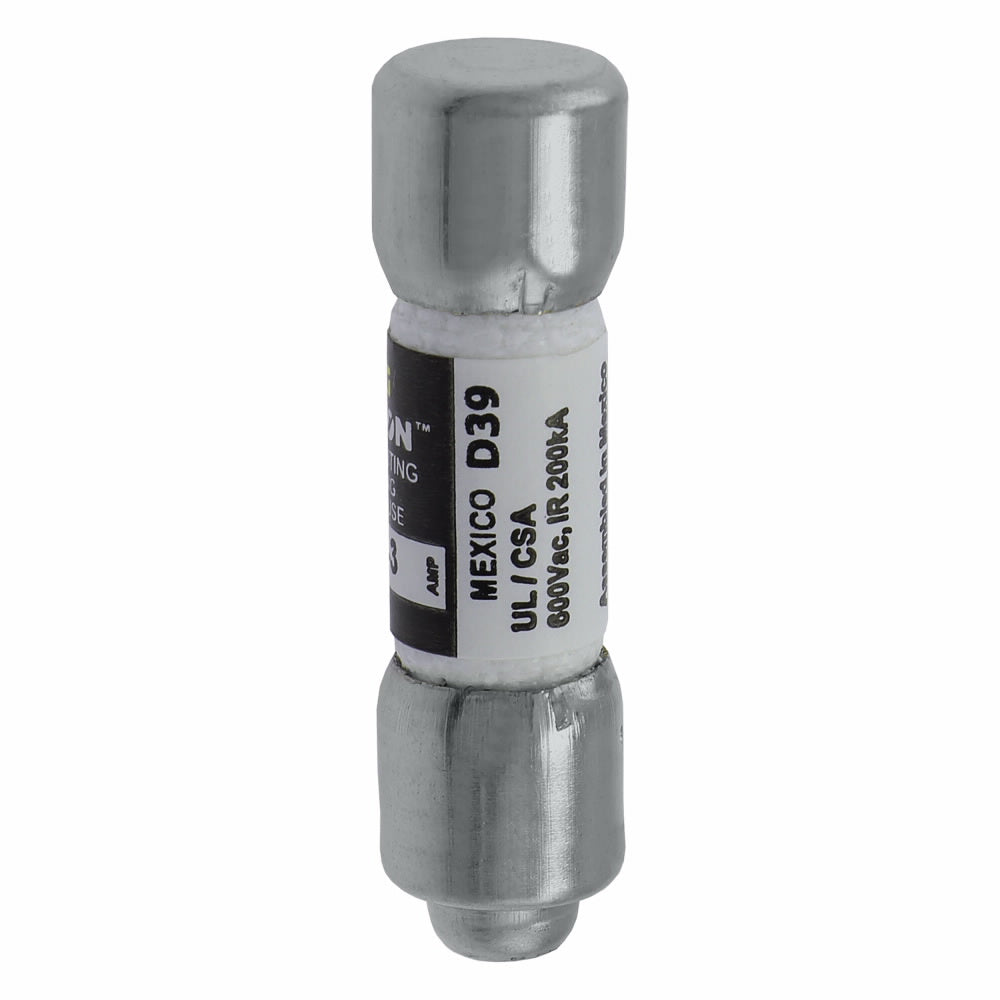

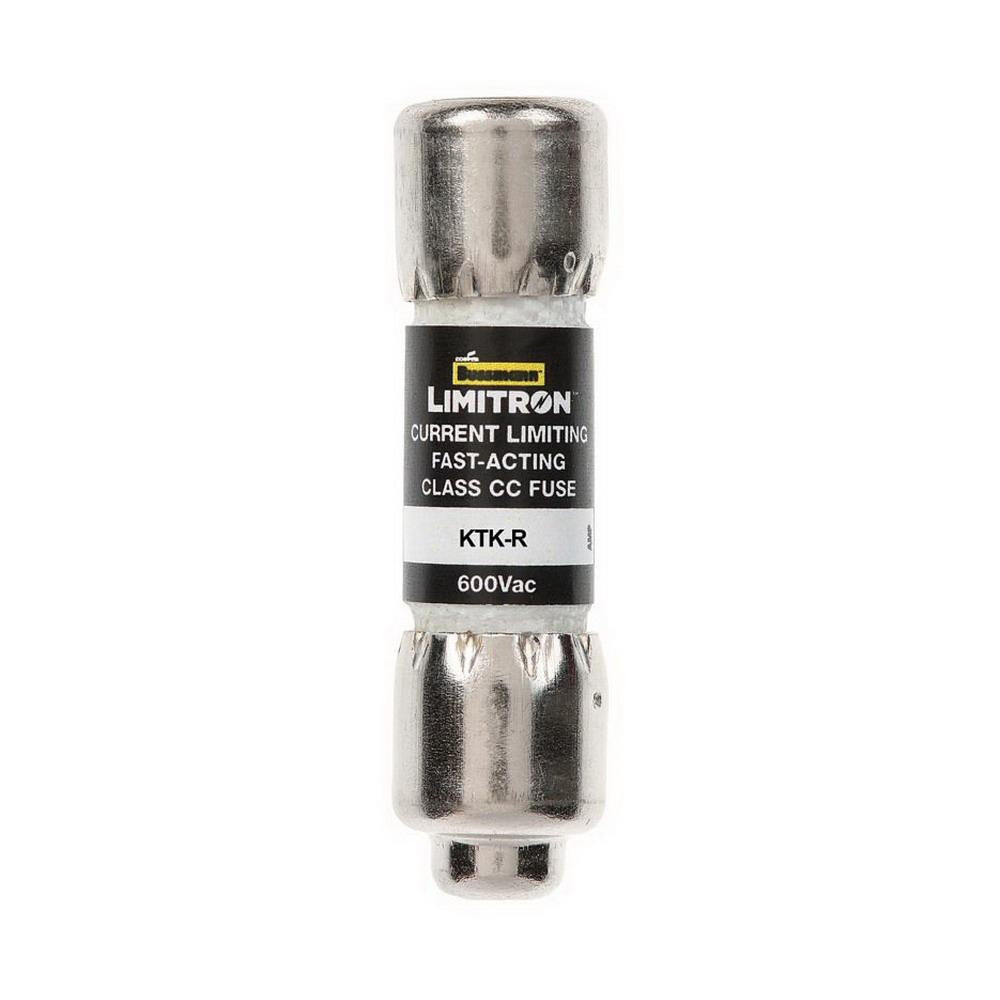

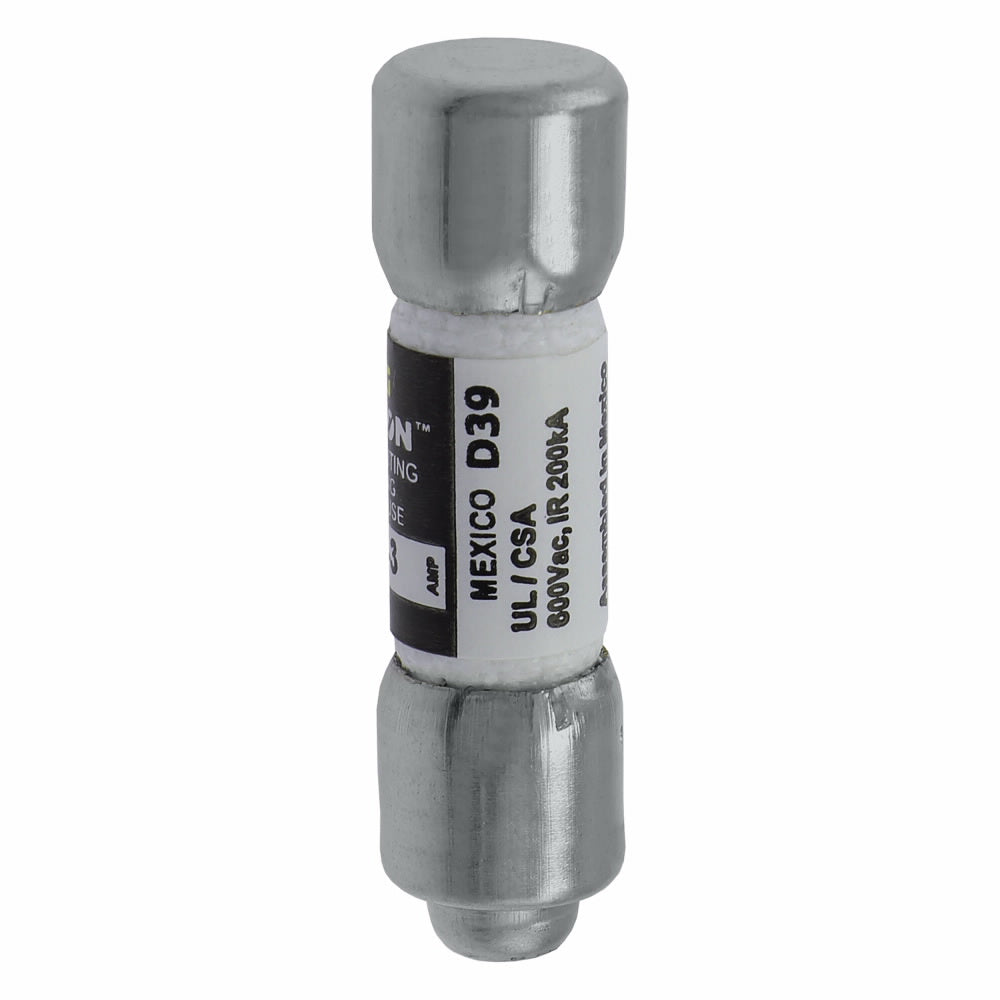

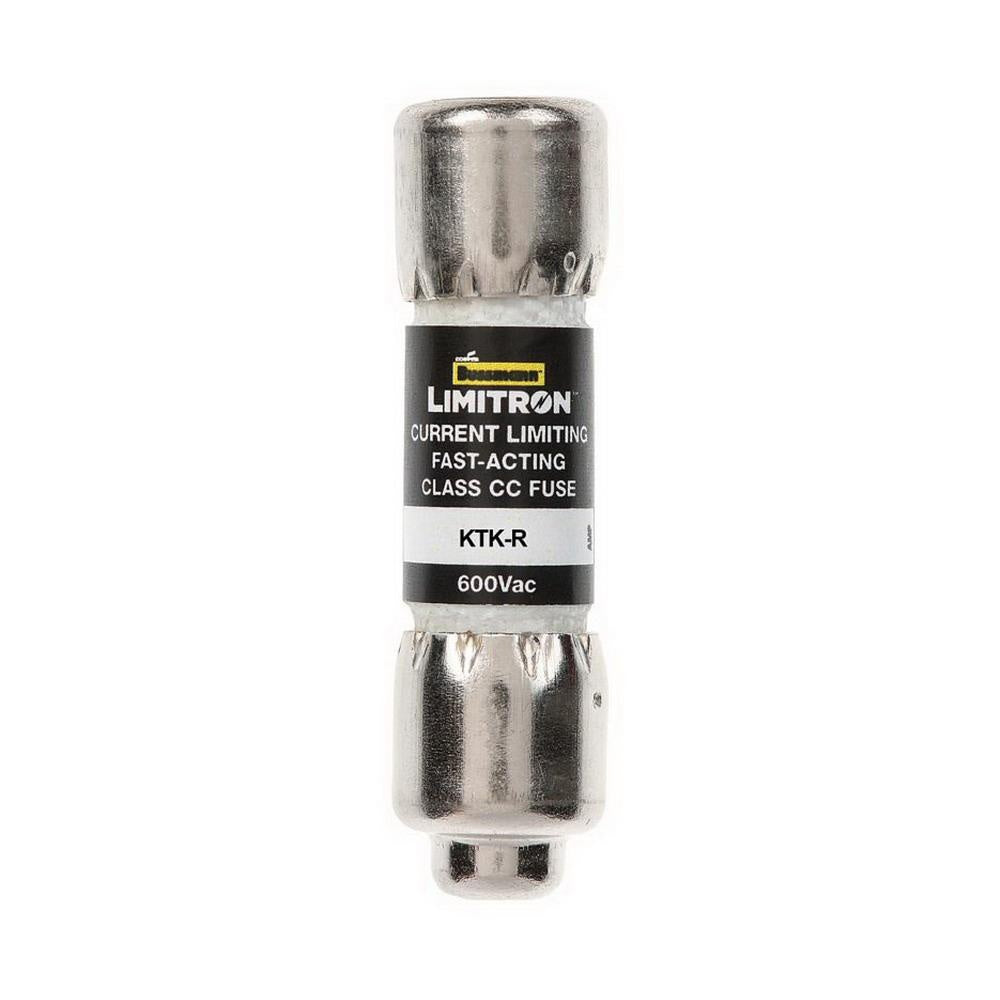

Bussmann KTK-R-3 KTK-R3 600V MDGT FS

Product Description

The Bussmann KTK-R-3 is a Class CC fast-acting fuse designed for use in various electrical applications. This fuse is rated for three Amps and operates at six hundred volts AC. It features a dual-element current limiting design which provides enhanced protection against short circuits. This helps to avoid damage to electrical components caused by unexpected current surges.

• Rated for three Amps and six hundred volts AC
• Interrupt rating of two hundred Kilo-Amps
• Constructed with a cylindrical melamine tube

Product Highlights

This fuse is ideal for branch circuits, specialized circuits, and applications such as industrial control and street lighting. Its rejection feature prevents the insertion of lower-rated supplementary fuses, ensuring safety and compliance with system requirements.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part Number: KTK-R-3

Technical Specifications

• Type: Rejection, Current-Limiting
• Amperage Rating: 3 Amps
• Voltage Rating: 600 Volt AC
• Dimensions: 0.41 Inch Diameter x 1.5 Inch Length
• Interrupt Rating: 200 Kilo-Amps
• Material: Melamine Body
• Mounting Type: Clip
• Standards: CSA Certified; UL Listed; RoHS Compliant; CE Marked
