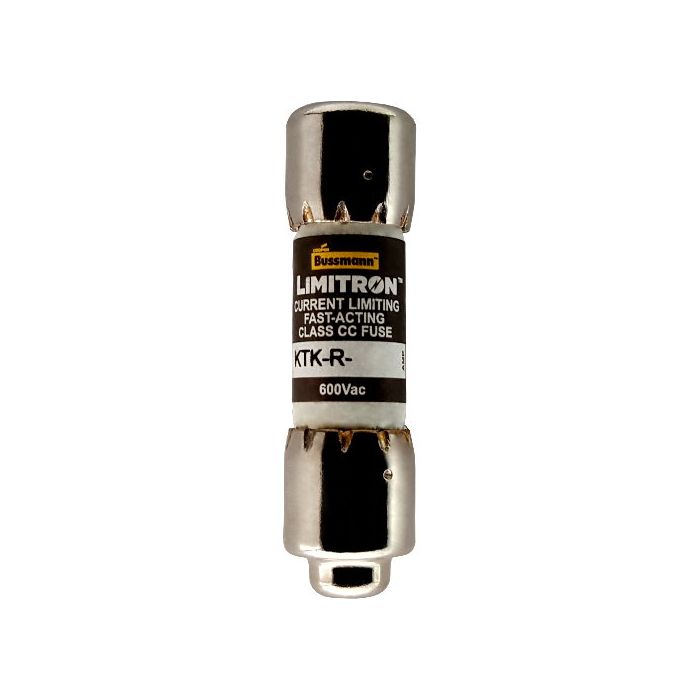

Bussmann KTK-R-3-1/2 Fuse 3.5A

Product Description

The BUSSMANN KTK-R-3-1/2 is an Eaton Bussmann Series Class CC, fast-acting, dual-element, current limiting fuse. Rated at 3.5 A, this rejection style fuse has an interrupting rating of 200kA at 600Vac. It is suitable for industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution.

• Rejection style
• Current-limiting fast-acting fuse
• Dual element

Product Highlights

The BUSSMANN KTK-R-3-1/2 fuse provides reliable and fast-acting circuit protection for various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-R-3-1/2
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series KTK-R fuse
• Catalog Number: KTK-R-3-1/2
• UPC: 051712420617
• EAN: 5027590445641
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 3.5 A
• Number of elements: Dual
• Class: CC
• Interrupt rating: 200 kAIC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end Ferrule
• Response time: See time current curve
• Material: Melamine tube
• Packaging type: Standard
• Quantity: 10
• Voltage rating: 600 V
• Type: Current-limiting fast-acting fuse
• Special features: Rejection style
• Application: Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
• Amps: 3 1/2
• Voltage: 600
• Speed: Fast Acting
• End Caps: Nickel Plated Bronze
• Interrupting Rating: 200,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Mounting Type: Holder
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Style: Cylindrical
• Catalog ID: BUSKTK-R-3-1/2
• Element: Single
• Standard & Approvals: UL 248-4, CSA C22.2, CE Certified, RoHS Compliant
• Terminal Type: Ferrule
• Diameter: 13/32 in
• Length: 1 1/2 in
• Volts AC: 600
• Mounting: Cartridge
• Interrupt Rating DC: 200 kA
• Interrupt Rating AC: 200 kA
• Series: KTK-R
