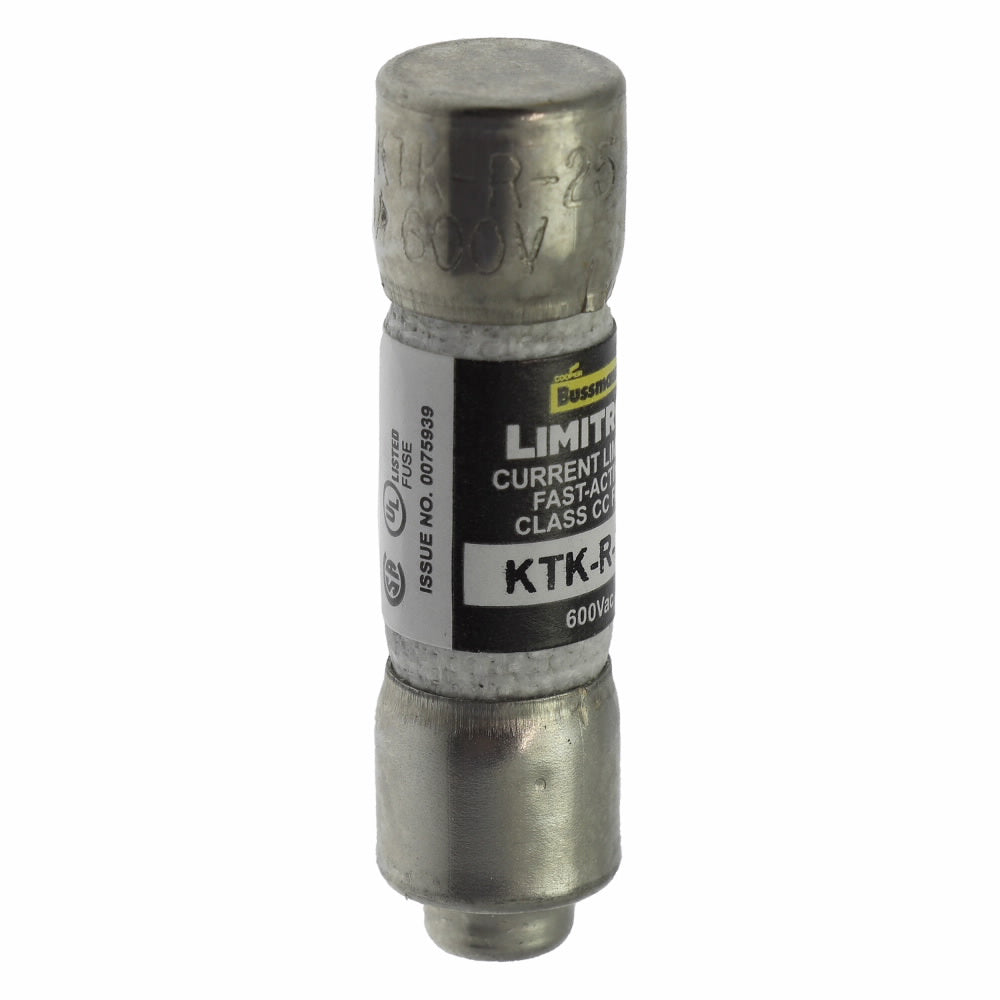

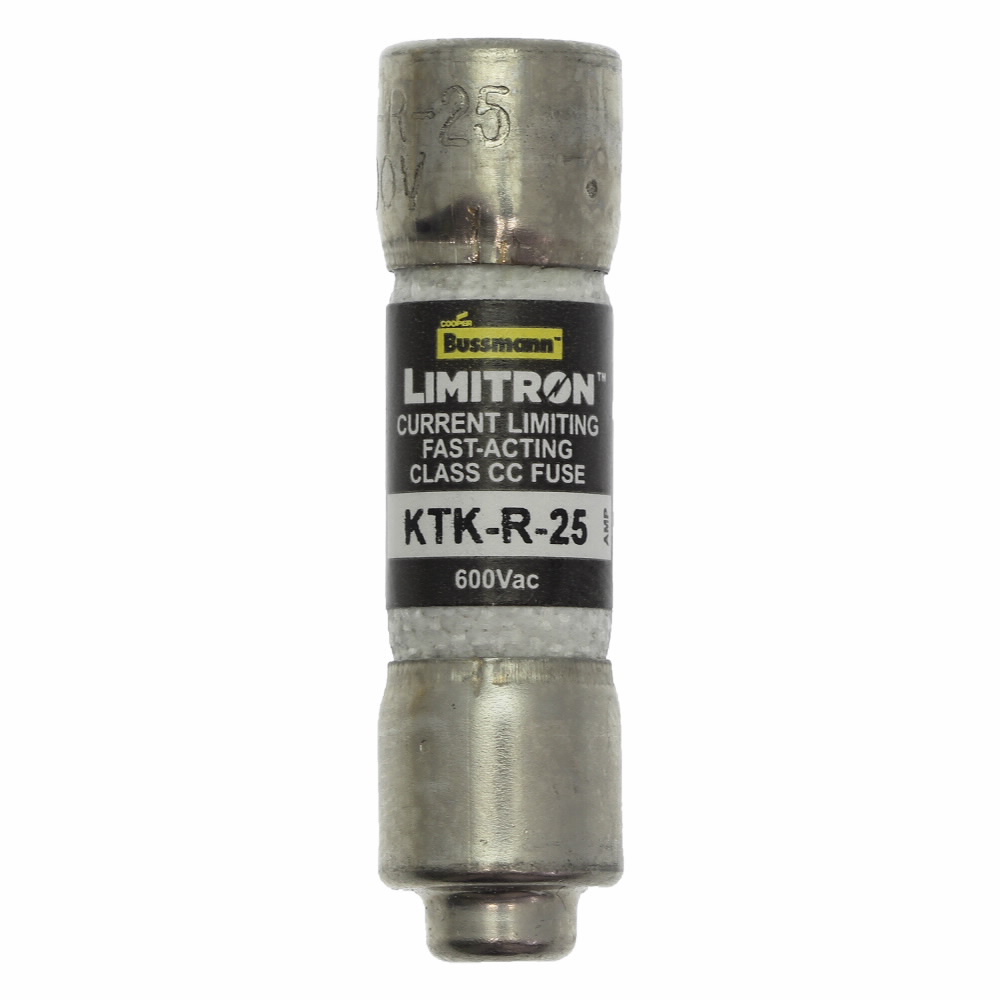

Bussmann KTK-R-25 600V 25Amp Limitron Current-Limiting Fast-Acting Fuse Class-CC

Product Description

Bussmann KTK-R-25 is a 600 volt, twenty-five amp limitron current-limiting fast-acting fuse. This Class-CC fuse is designed for specialized circuits and industrial control applications. It features a non-indicating design and rejection style to minimize incorrect installations. The fuse offers an interrupting rating of two hundred kiloamperes and is made with a melamine tube for enhanced durability.

• Fast-acting, current-limiting fuse
• Compatible with Class CC applications
• Designed for specialized circuits

Product Highlights

This fuse is ideal for systems requiring protection against overload and short circuits, ensuring safety and reliability in electrical applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: KTK-R-25
• Voltage: 600 Volt
• Amperage: 25 Amp
• Diameter: 0.46 Inch
• Length: 1.5 Inch
• Height: 0.41 Inch
• Weight: 0.18 lb
• Material: Melamine
• Interrupt Rating: 200 kAIC
• End Type: Ferrule
• Standard Compliance: CE, CSA C22.2, UL 248-4
• Applications: Specialized Circuits, Industrial Control, Inline Fuse Holders, Branch Circuits
