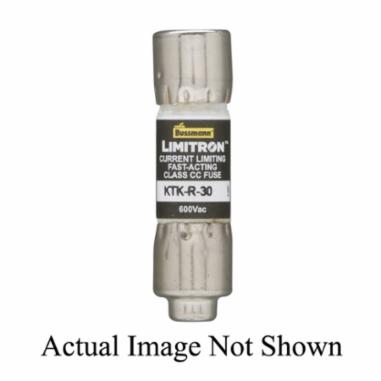

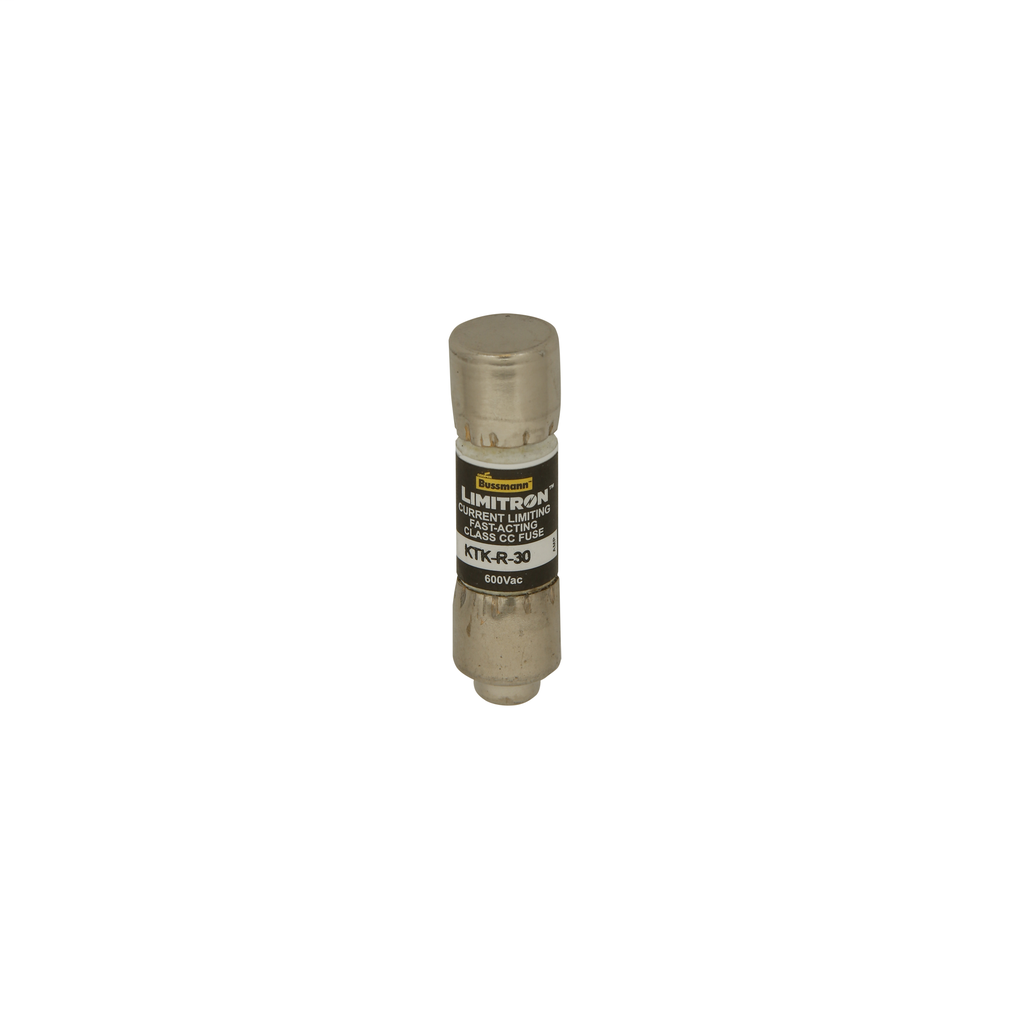

Bussmann KTK-R-2-1/2 600V 2-1/2Amp Limitron Current-Limiting Fast-Acting Fuse Class-CC Non-Indicating Rejection Style 200kAIC

Product Description

The Bussmann KTK-R-2-1/2 is a limitron fast-acting fuse designed for use in specialized circuits and industrial control applications. This fuse operates at 600 volts and has an amperage rating of two and one-half amps.

• Current Limiting and Fast Acting
• 200 kA Interrupt Rating
• Rejection Style for Enhanced Safety

Product Highlights

This fuse is suitable for use in safety and security systems, isolated inline fuse holders, and branch circuits. It features a ferrule end connection, making it easy to install in standard fuse holders.

Product Information

Standard Information

• Brand: Bussmann
• MPN: KTK-R-2-1/2

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 2.5 Amp
• Diameter: 0.46 Inch
• Length: 1.5 Inch
• Material: Melamine Tube
• Connector Type: Ferrule end x ferrule end
• Class: Class CC
• Interrupt Rating: 200 kAIC
