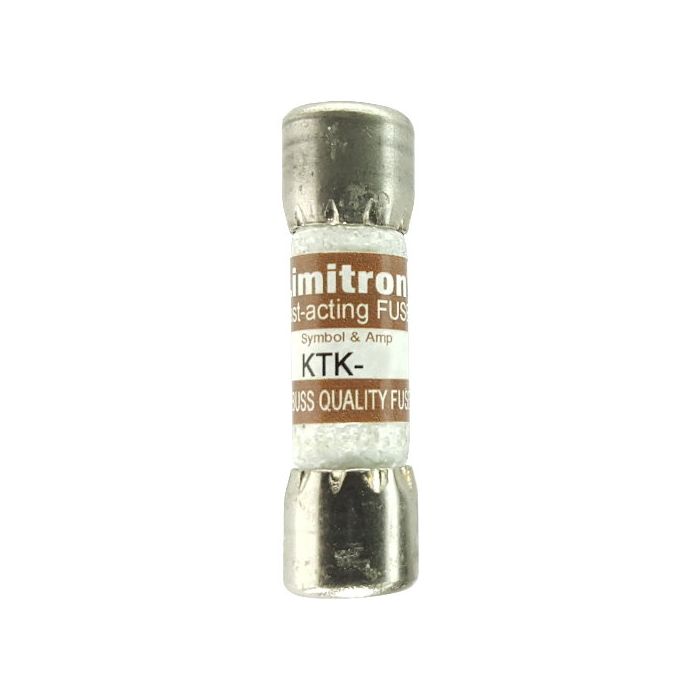

Bussmann KTK-6/10 fuse 0.6 A

Product Description

The Bussmann KTK-6/10 is a 0.6 A fuse from the Eaton Bussmann series, designed for control circuits and lighting circuit protection. It features ferrule end connections and a melamine tube. This fast-acting fuse provides reliable protection with a 600V voltage rating and a 100 kAIC interrupt rating at 600Vac.

• Fast Acting Fuse
• Melamine Tube
• Nickel Plated Bronze End Caps

Product Highlights

The Bussmann KTK-6/10 fuse is ideal for industrial and commercial applications requiring precise current limitation.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-6/10
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series KTK fuse
• Catalog Number: KTK-6/10
• UPC: 051712420273
• EAN: 5027590446020
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• RoHS Compliant: RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 0.6 A
• Interrupt rating: 100 kAIC at 600 Vac
• Voltage rating: 600 V
• Material: Nickel-plated bronze endcap Melamine tube
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Fuse Type: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• AC Voltage Rating: 600
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• AC Adapter Current: 0.6 Amps
• Brand: Bussmann
• Voltage: 600 Volts
• Mounting Type: Through-Hole Mount
• Country of Origin: United States
