Bussmann KTK-35 Fuse 35A

Product Description

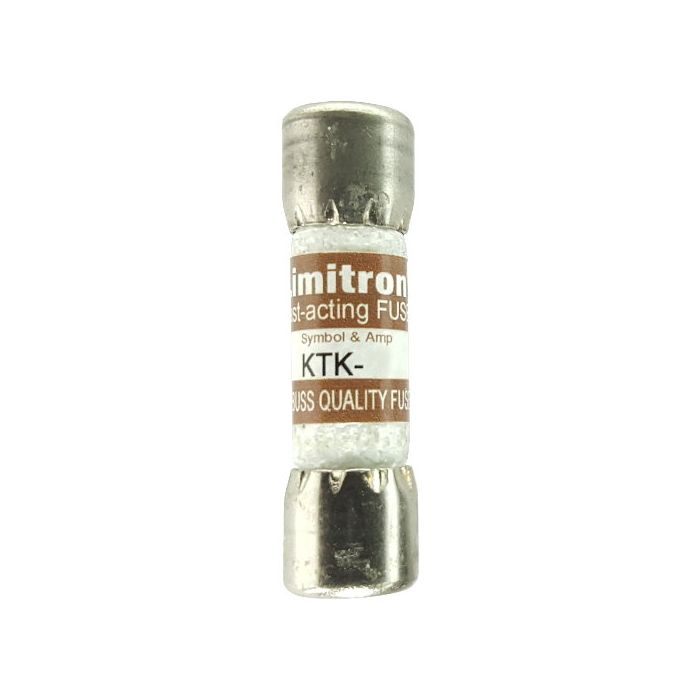

The BUSSMANN KTK-35 is a 35A, 600V fast-acting midget fuse. It features a melamine tube and nickel-plated bronze endcaps. This fuse is UL Listed and CSA Certified. It is designed to protect current-sensitive equipment by responding rapidly to changes in current. Commonly used in control circuits and lighting circuit protection.

• 35 Amps, 600 Volts AC
• Fast Acting Fuse
• Nickel-plated bronze endcaps

Product Highlights

The BUSSMANN KTK-35 fuse is fast-acting with a small footprint.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-35
• Country of Origin: Mexico

Technical Specifications

• Amps: 35 A
• Voltage rating: 600 V
• Fuse Type: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• AC Voltage Rating: 600 V
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• Product Name: Eaton Bussmann series KTK fuse
• Catalog Number: KTK-35
• UPC: 051712420310
• EAN: 5027590445948
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked
• RoHS Compliant: RoHS Compliant
• Product Type: Fuse
• Material: Nickel-plated bronze endcap Melamine tube
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special Features: Small Footprint
• Series: KTK
• Manufacturer Part Number: KTK-35
• Body Material: Melamine
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 35 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• UNSPSC Code: 39120000
• Application: Control circuits, lighting circuit protection, meter circuits
• Brand: Bussmann by Eaton
• Dimensions: 1.50 in H X 0.41 in W X 0.41 in L
• Indicator: Non-indicating
• Shape: RECTANGULAR
• Type: Fuse
• Unit of Measure: EA
• Electrical fuse type: Cartridge Fuses
