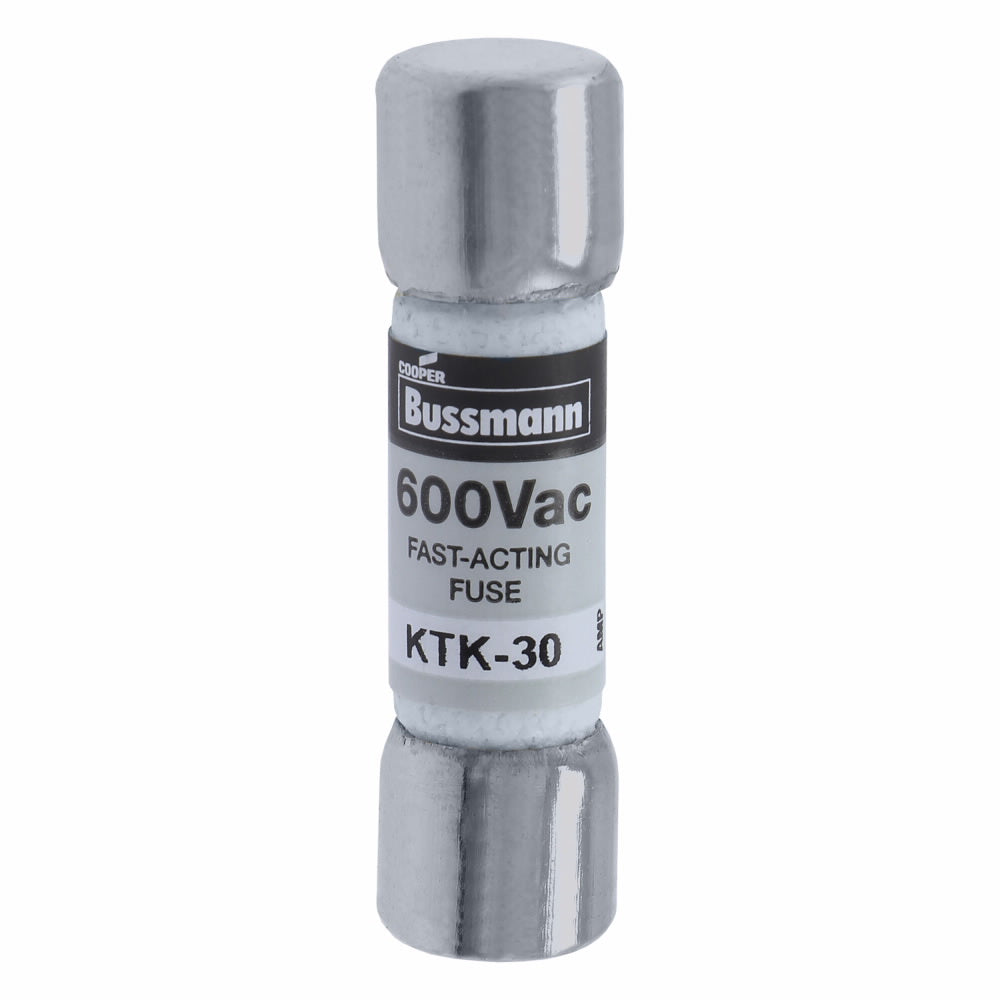

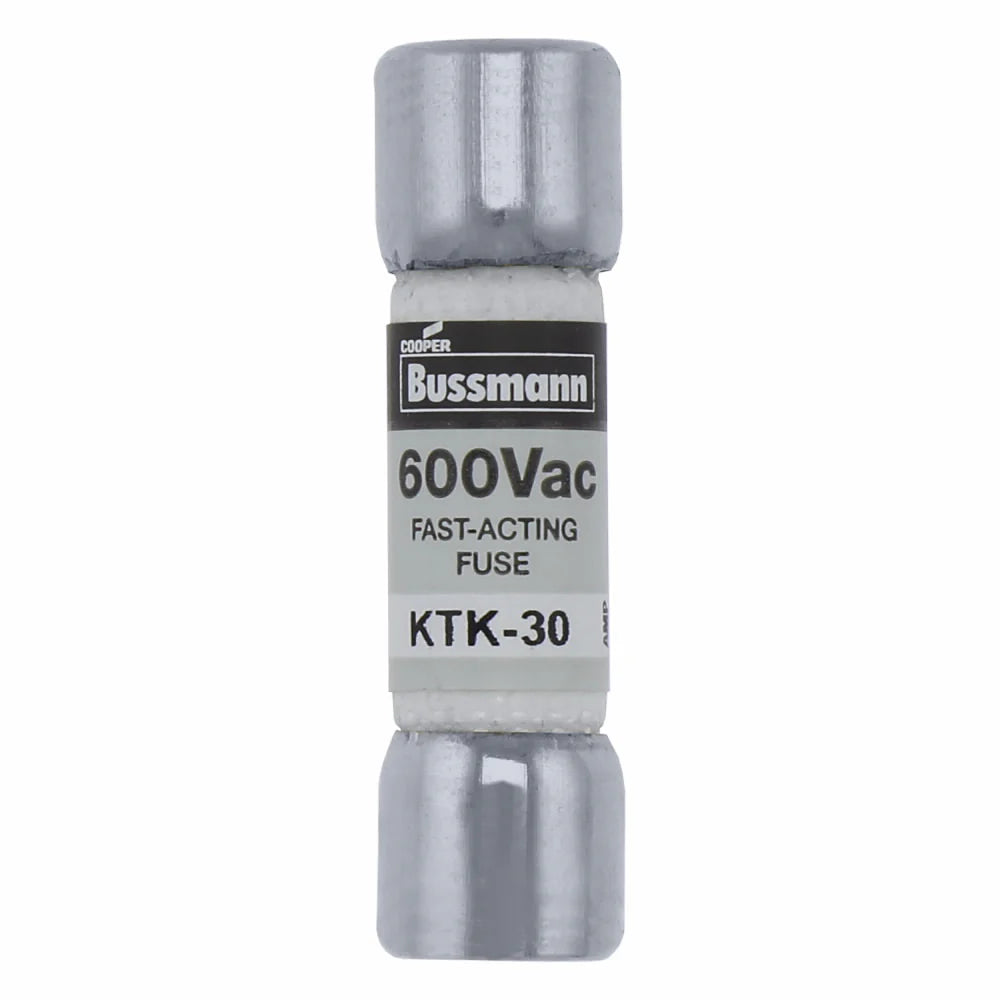

Bussmann KTK-30 600v 30amp Fast-Acting Supplemental Fuse

Product Description

The Bussmann KTK-30 is a fast-acting supplemental fuse with a voltage rating of six hundred volts and an amperage rating of thirty amps. This fuse is designed for effective protection in control circuits, lighting circuit protection, and meter circuits. It features a non-indicating function and has an interrupt rating of one hundred kiloamperes. The dimensions of the fuse are thirteen thirty-seconds inches in diameter by one and a half inches in length.

• Fast-acting fuse design for immediate response to overcurrent.
• High interrupt rating of 100kAIC at 600Vac for reliable circuit protection.
• Constructed with a melamine material for durability.

Product Highlights

The Bussmann KTK-30 is suitable for use in various electrical applications, including commercial and industrial settings.

Product Information

Standard Information

• Brand: Bussmann
• Product Type: Fast Acting Fuse

Technical Specifications

• Voltage: 600 Volt
• Amperage: 30 Amp
• Diameter: 13/32 Inch
• Length: 1-1/2 Inch
• Material: Melamine
• End Type: Ferrule End
• Interrupt Rating: 100 kAIC
• Applications: Control Circuits, Lighting Circuit Protection, Meter Circuits
