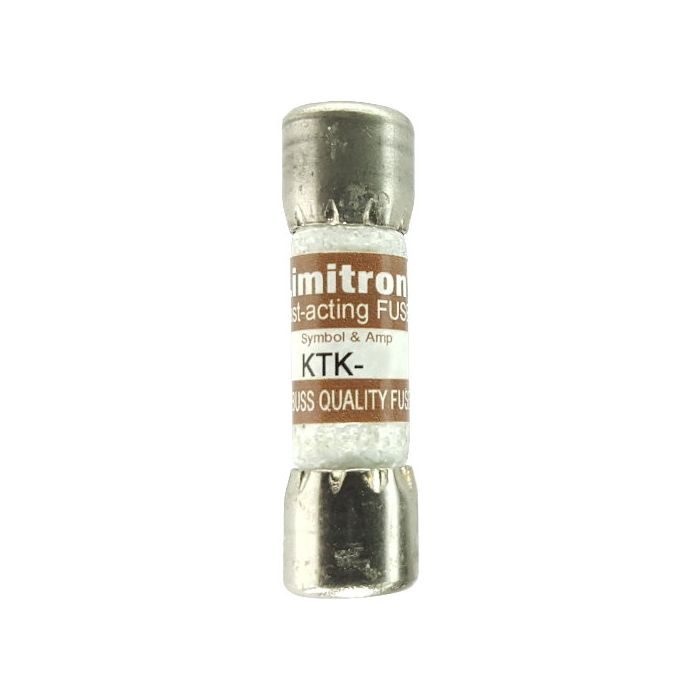

Bussmann KTK-3/4 Fuse 3/4 Amps REPLACEMENT KTK-3/4

Product Description

The BUSSMANN KTK-3/4 is a 3/4 amp, 600V fast-acting midget fuse. Constructed with a melamine tube and nickel-plated bronze endcaps, it's UL listed and CSA certified. Ideal for control circuits, lighting circuit protection, and meter circuits, this fuse provides reliable, fast-acting protection for sensitive equipment in electrical and industrial applications.

• Fast Acting Fuse
• Melamine Tube
• Nickel Plated Bronze End Caps

Product Highlights

Fast-acting fuse with melamine tube and nickel-plated bronze endcaps, suitable for control, lighting, and meter circuits.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-3/4
• Country of Origin: United States

Technical Specifications

• Amps: 3/4
• Volts AC: 600
• Fuse Type: Cartridge
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Product Name: Eaton Bussmann series KTK fuse
• Catalog Number: KTK-3/4
• UPC: 051712420075
• EAN: 5027590445924
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 0.75 A
• Interrupt rating: 100 kA
• Voltage rating: 600 V
• Material: Nickel-plated bronze endcap Melamine tube
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Small footprint
• Ampere: 0.75 A
• Speed: Fast-Acting
• Class: Class CC
• Shape: Cartridge Fuses
• Approvals: CE, UL, CSA, RoHS
• Substitute parts: Littelfuse KLK
• Dimensions: 0.41" Dia x 1.5" L (10.3x38.1mm)
• Item weight: 0.28 oz
• Current Rating: 750 mA
• AC Voltage Rating: 600 V
• Fuse Class: Midget
• Model: KTK0.75
• Category: Circuit Protection
• Voltage Rating - AC: 600 VAC
• Response Time: Fast Blow
• Series: KTK
• Applications: Electrical, Industrial
• Packaging: Bulk
• Approval Agency: CSA, UL
• Part Status: Active
• Breaking Capacity @ Rated Voltage: 100kA
• Mounting Type: Requires Holder
• Package / Case: 5AG, 10mm x 38mm (Midget)
• Size / Dimension: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
• Current Rating (Amps): 750mA
• Body Material: Melamine
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
