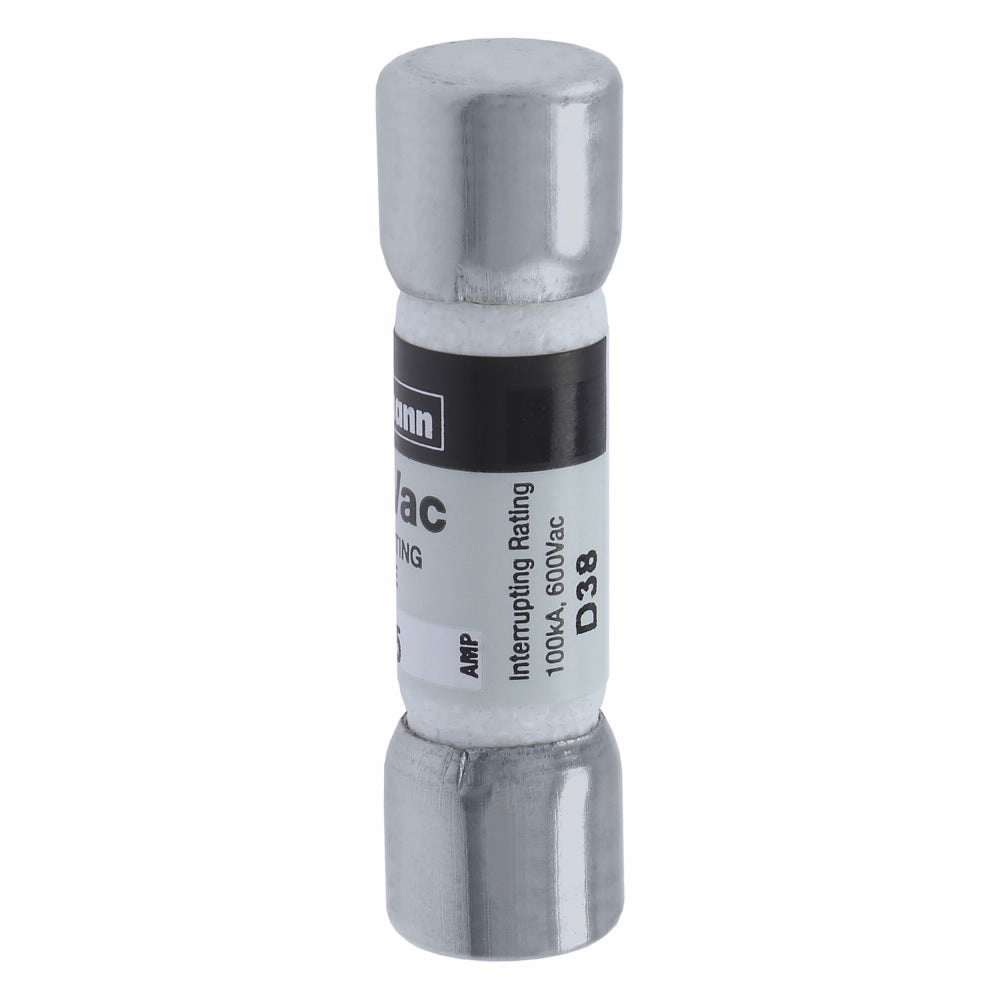

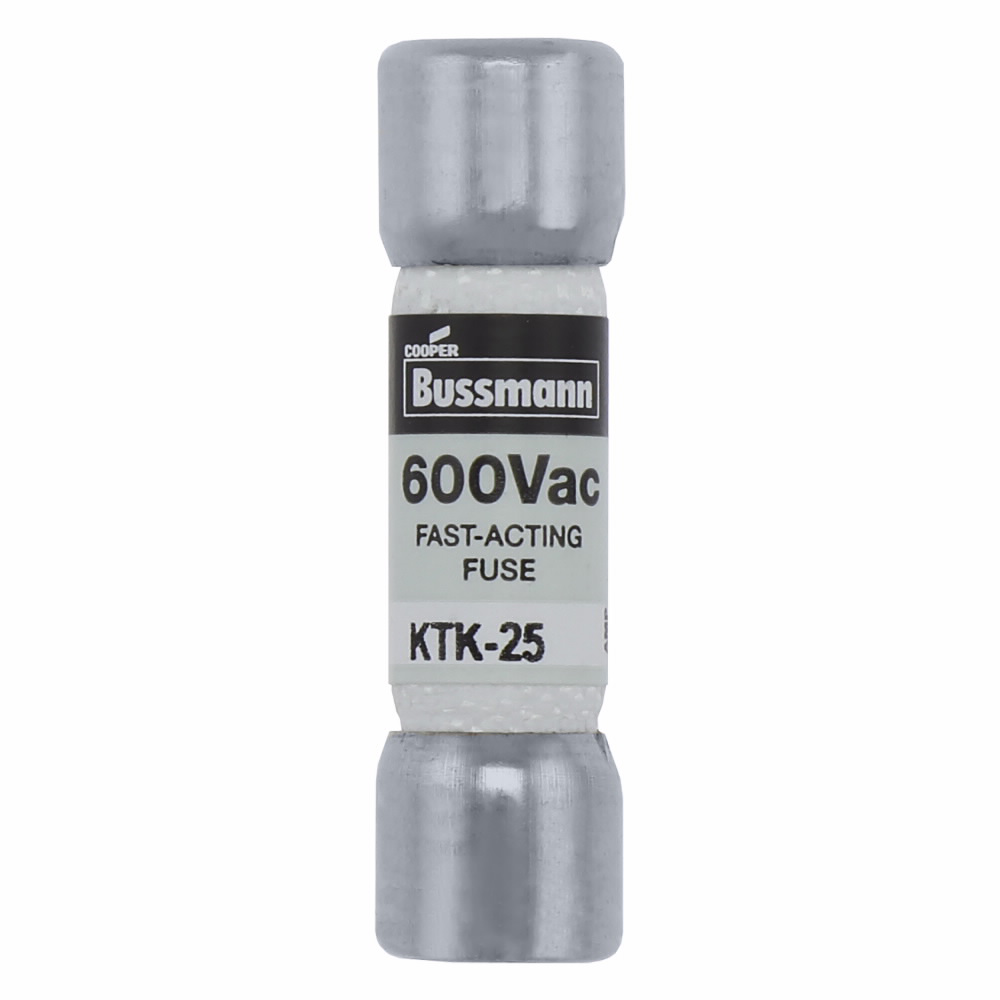

Bussmann KTK-25 600V 25Amp Limitron Fast-Acting Supplemental Fuse Non-Indicating 100kAIC @ 600Vac

Product Description

The Bussmann KTK-25 is a fast-acting fuse designed for use in control circuits and lighting protection. This 25 amp fuse has a voltage rating of 600 volts and provides effective protection for meter circuits.

• Fast-acting design suitable for control circuits
• Rated for 100 kAIC at 600 Vac
• Nickel-plated bronze endcap for durability

Product Highlights

The KTK-25 features a non-indicating design and connects via ferrule ends, ideal for various applications in electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• MPN: KTK-25

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 25 Amp
• Dimensions: 13/32 inches diameter by 1-1/2 inches length
• Material: Nickel-plated bronze endcap, melamine tube
• Interrupt Rating: 100 kAIC
• Connection Type: Ferrule end x ferrule end
• Standards Complied: CE, CSA C22.2, UL 248-14
• Applications: Control circuits, lighting circuit protection, meter circuits
