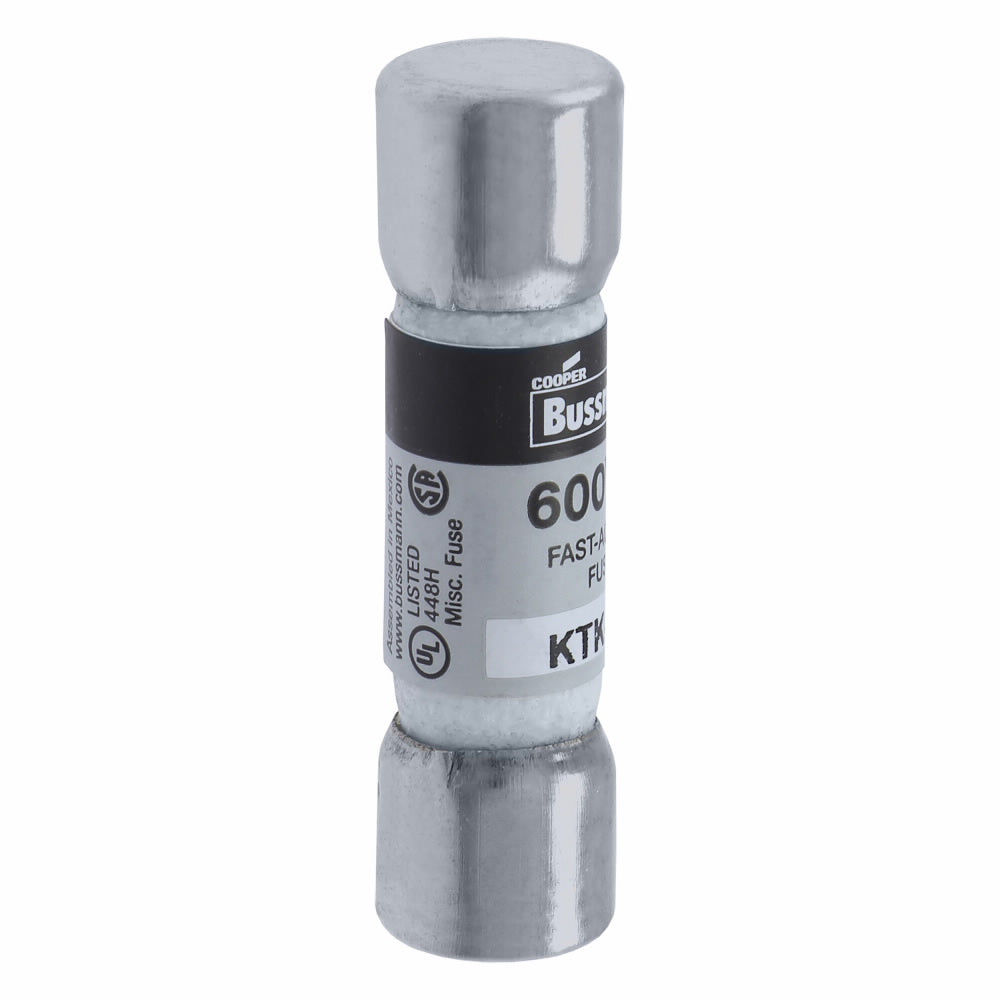

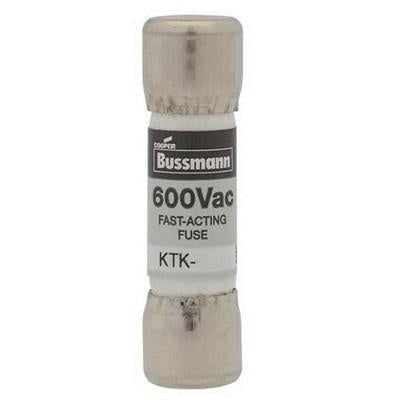

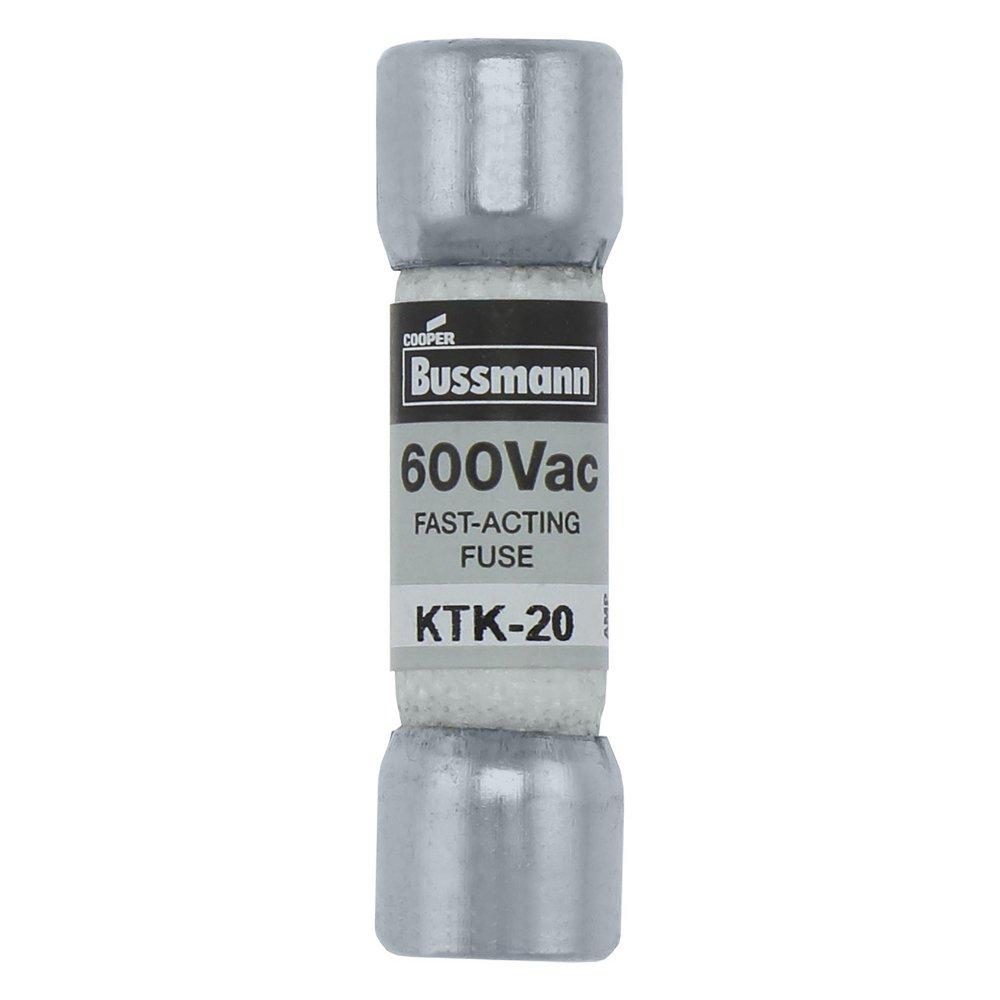

Bussmann KTK-20 600V 20A Fast Acting Supplemental Fuse

Product Description

The Bussmann KTK-20 is a fast acting supplemental fuse rated at 20 Amps and 600 Volts. This fuse is designed for use in control circuits, lighting circuit protection, and meter circuits. It features a cylindrical melamine tube and a nickel-plated brass end cap, providing durability and reliability in various applications.

• Rated at 20 Amps and 600 Volts
• Interrupt rating of 100 Kilo-Amps
• Constructed with a nickel-plated brass end cap

Product Highlights

This fast acting fuse supports clip mounting for easy installation. The fuse is UL listed and RoHS compliant, making it suitable for various electrical applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part Number: KTK-20

Technical Specifications

• Voltage Rating: 600 Volt AC
• Amperage Rating: 20 Amp
• Interrupt Rating: 100 Kilo-Amp at 600 Volt AC
• Size: 0.41 Inch Diameter x 1.5 Inch Length
• Type: Non-Rejection
• Mounting: Clip
• Body Style: Cylindrical
• Construction: Melamine Body, Nickel Plated Brass End Cap
