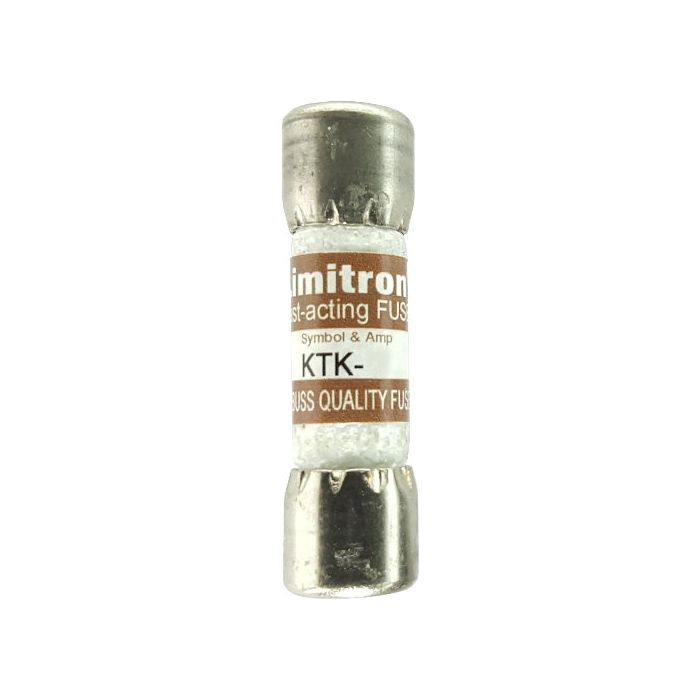

Bussmann KTK-2-1/2 Eaton Bussmann series KTK fuse 2.5 A

Product Description

The Eaton Bussmann series KTK fuse from BUSSMANN, MPN KTK-2-1/2, is designed for control circuits, lighting circuit protection, and meter circuits. This 2.5A, 600V fuse features ferrule end connections and a melamine tube with nickel-plated bronze endcaps. It has a 100 kAIC interrupting rating at 600V.

• Small footprint
• Fast Acting Fuse
• Melamine Tube

Product Highlights

The Bussmann KTK fuse is a fast-acting fuse with a compact design, ideal for sensitive equipment.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-2-1/2
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series KTK fuse
• Catalog Number: KTK-2-1/2
• UPC: 051712420228
• EAN: 5027590445856
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Weight: 0.19 lb
• Compliances: RoHS Compliant CE Marked
• Product Type: Fuse
• Amperage Rating: 2.5 A
• Interrupt rating: 100 kAIC at 600 Vac
• Voltage rating: 600 V
• Material: Melamine tube Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Small footprint
• Amps: 2 1/2
• Fuse Type: Midget
• Acting Speed: Fast Acting
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Mounting Type: Surface Mount
• AC Voltage Rating: 600 V
• Body Material: Melamine
• Compatible Fuse Block Series: BM; BMM; C2617; C5268; CHM; HEB; HET; HEX; HPG; HPS; OPM-1038; OPM-NG
• Current Rating: 2.5 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Brand: Bussmann/EATON
• Condition: New
