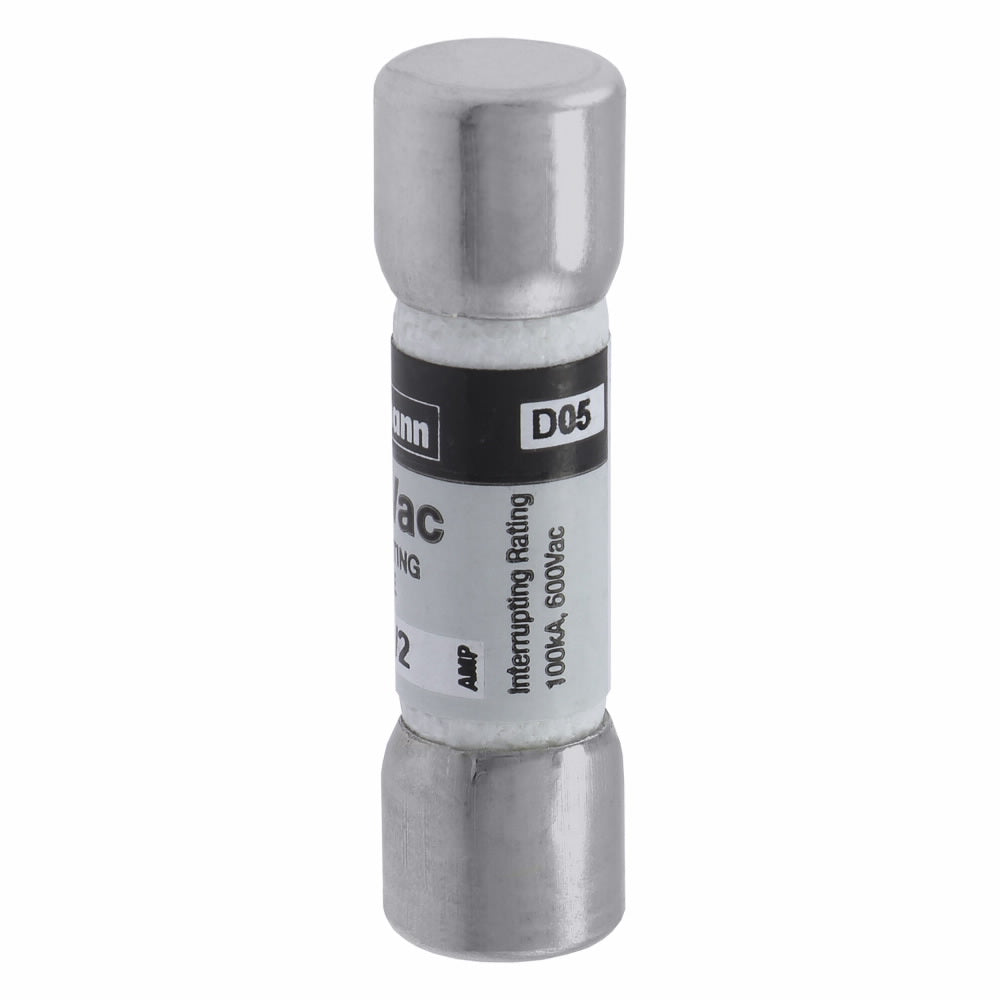

Bussmann KTK-12 600V 12Amp Limitron Fast-Acting Supplemental Fuse Non-Indicating 100kAIC @ 600Vac

Product Description

The Bussmann KTK-12 is a fast-acting supplemental fuse designed for use in control circuits, lighting circuit protection, and meter circuits. With a voltage rating of six hundred volts and an amperage rating of twelve amps, this fuse is suitable for various applications. It features a ferrule end connection, providing a reliable interface for electrical assemblies. The KTK-12 complies with standards such as UL 248-14 and CSA C22.2.

• Fast-acting fuse type
• Interrupt rating of one hundred kAIC
• Material: Melamine

Product Highlights

The Bussmann KTK-12 is ideal for protecting circuits from overloads and short circuits. It is designed for quick response to fault conditions, ensuring reliability in protective applications.

Product Information

Standard Information

• Catalog Number: KTK-12
• Brand: Bussmann

Technical Specifications

• Voltage: 600 Volt
• Amperage: 12 Amp
• Diameter: 13/32 inches
• Length: 1-1/2 inches
• Weight: 0.19 lb
• Class: Supplemental
• Connection Type: Ferrule End X Ferrule End
• Standards: CE, CSA C22.2, UL 248-14
• Applications: Control Circuits, Lighting Circuit Protection, Meter Circuits
