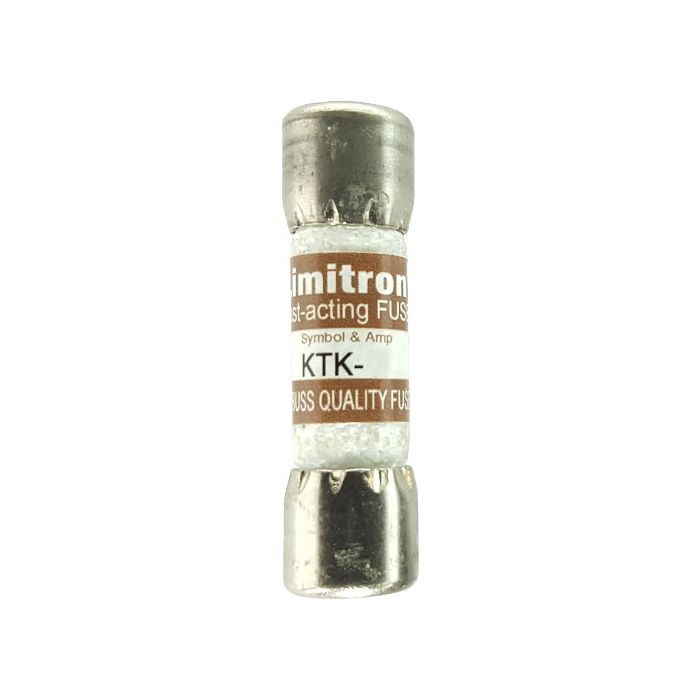

Bussmann KTK-1/8 Fuse 0.125A

Product Description

The Bussmann KTK-1/8 is a fast-acting fuse designed for supplemental and midget applications. This fuse is ideal for control circuits, lighting circuit protection, and meter circuits. It features a melamine tube and nickel-plated bronze endcaps. The KTK-1/8 offers reliable protection with a voltage rating of 600VAC and an amperage of 0.125A.

• Fast Acting Fuse
• Voltage rating of 600V AC
• Interrupting Rating: 100,000 AIC RMS @ 600VAC

Product Highlights

The Bussmann KTK-1/8 fuse provides fast-acting protection for sensitive equipment with a compact design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-1/8
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: KTK-1/8
• UPC: 051712420020
• EAN: 5027590445801
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 0.125A
• Interrupt rating: 100 kAIC at 600 Vac
• Voltage rating: 600 V
• Material: Nickel-plated bronze endcap Melamine tube
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Amps: 1/8
• Fuse Type: Midget
• Acting Speed: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Application: Control circuits, lighting circuit protection, meter circuits
• Body Material: Melamine
• Brand: Bussmann by Eaton
• Current Rating: 0.125 A
• Dimensions: 1.50 in H X 0.41 in W X 0.41 in L
• Mounting Type: Clip
• Primary Type: Single Use Fuses
• Series: KTK Series
• Shape: RECTANGULAR
• Special Features: Limitron
• Termination: Cartridge
• Type: Fuse
• AC Voltage Rating: 600 V
• Current: 125 mA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
