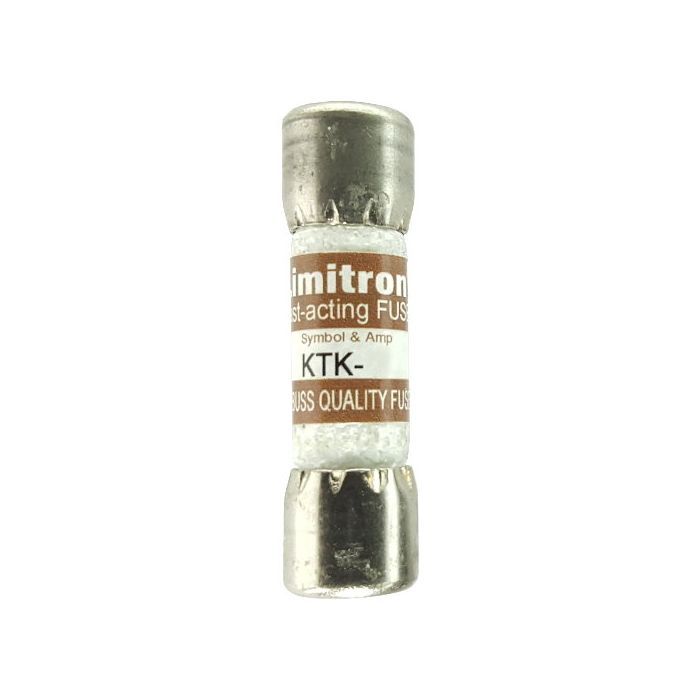

Bussmann KTK-1/4 Fuse 0.25 A

Product Description

The BUSSMANN KTK-1/4 is a fast-acting supplemental fuse. This 0.25 A, 600 V fuse features a melamine tube and nickel-plated bronze endcaps. It has an interrupting rating of 100 kAIC at 600 VAC and a small footprint. It is suitable for control circuits, lighting circuit protection, and meter circuits.

• Small footprint
• Fast Acting Fuse
• Melamine Tube

Product Highlights

The BUSSMANN KTK-1/4 fuse offers reliable, fast-acting circuit protection in a compact size.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KTK-1/4
• Country of Origin: Mexico

Technical Specifications

• Product Type: Fuse
• Catalog Number: KTK-1/4
• UPC: 051712420044
• EAN: 5027590445795
• Product Length/Depth: 0.41 in
• Product Height: 1.5 in
• Product Width: 0.41 in
• Compliances: RoHS Compliant
• Amperage Rating: 0.25 A
• Interrupt rating: 100 kAIC at 600 Vac
• Voltage rating: 600 V
• Material: Melamine tube Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Small footprint
• Fuse Speed: Fast Acting
• Tube Material: Melamine
• Endcaps: Nickel-plated bronze
• Physical Size: 0.41" x 1.5"
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• Body Material: Melamine
• Length: 0.41 in
• Width: 0.41 in
• Height: 1-1/2 in
• Body Style: Cartridge
• Class: CC
• Element: Single
• Terminal Type: Ferrule
• Standard & Approvals: UL 248-14 File E19180 Listed, CSA C22.2 File No 53787 Listed, CE Certified, RoHS Compliant
• Application: Control Circuits, Lighting Circuit Protection and Meter Circuits
• Series: KTK
• AC Voltage Rating: 600 V AC
• Current Rating: 250 mA
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
