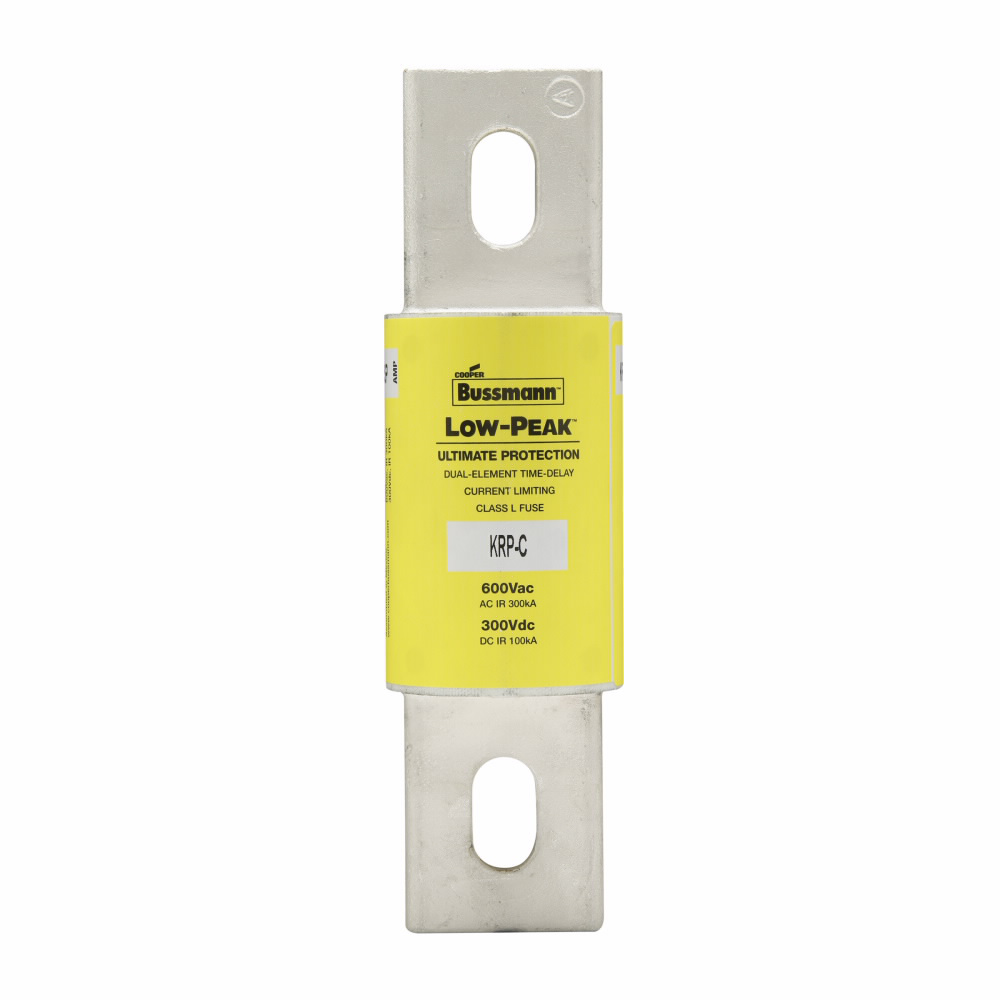

Bussmann KRP-C-601SP Low Peak Time Delay Fuse

Product Description

The Bussmann KRP-C-601SP is a time-delay fuse designed for various applications. It is a current-limiting fuse rated for 601 Amps with a bolted blade end connection. This fuse is suitable for use in large distribution switchboards and machinery disconnects.

• Current-limiting design helps to prevent electrical faults.
• Time-delay feature allows temporary overloads to clear without blowing the fuse.
• Rated for 600 Volts AC and 300 Volts DC with a 100 kA interrupt rating.

Product Highlights

This Bussmann fuse is reliable and efficient for protecting electrical circuits. Ideal for power panelboards and large machinery.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: KRP-C-601SP
• Amperage Rating: 601 Amps
• Voltage Rating: 600 Vac; 300 Vdc
• Type: Current Limiting, Time-Delay
• Class: Class L
• Dimensions: 2.5 inches diameter x 8.63 inches length
• Weight: 3.8 lb
• Response Time: 4 seconds at 500%
• End Type: Bolted Blade
• Material: Melamine
• Applications: Large Distribution Switchboards, Large Machinery Disconnects, Power Panelboards
