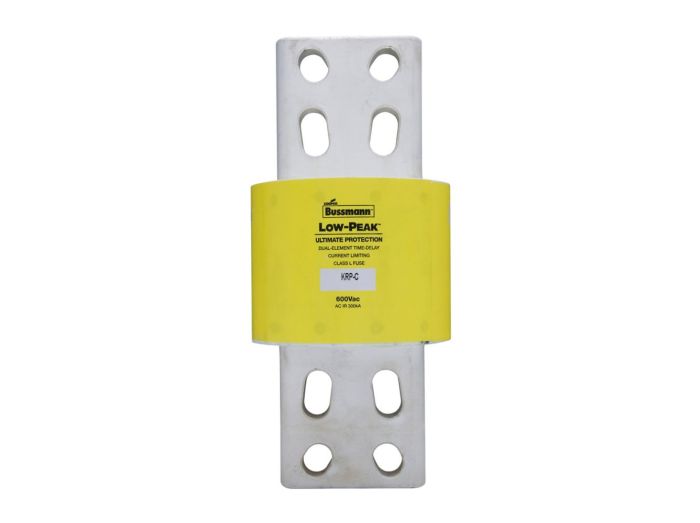

Bussmann KRP-C-2500SP Eaton Bussmann Series KRP-C Fuse 2500 A

Product Description

The BUSSMANN KRP-C-2500SP is an Eaton Bussmann Series Class L, time-delay, current limiting fuse. Rated at 2500 A, it has an interrupting rating of 300 kA at 600 Vac. This all-purpose silver-linked fuse provides overload and short circuit protection for high capacity systems.

• Time-delay
• Current limiting fuse
• Interrupting rating of 300 kA at 600 Vac

Product Highlights

The BUSSMANN KRP-C-2500SP fuse offers reliable protection for high capacity systems with its time-delay and current limiting features.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KRP-C-2500SP
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series KRP-C fuse
• Catalog Number: KRP-C-2500SP
• UPC: 051712605250
• Product Length/Depth: 10.75 in
• Product Height: 5.03 in
• Product Width: 5.03 in
• Compliances: RoHS Compliant CE Marked
• Product Type: Fuse
• Amperage Rating: 2500 A
• Interrupt rating: 300 kAIC at 600 Vac
• Response time: 4 sec at 500%
• Voltage rating: 600 V
• Packaging type: Standard
• Class: Class L
• Connection: Bolted blade end x bolted blade end
• Fuse indicator: Non-indicating
• Amperage: 2500
• Voltage: 600V AC
• Fuse Class: L
• Time Delay: Min. 4 Sec
• Current Limiting: Yes
• Physical Size: 5" x 10.75"
• Time Delay at 500% Rated Current: 4 Seconds (Minimum)
• Application: Large distribution switchboards, large machinery disconnects, power panelboards
• Interrupting Rating (VAC): 300,000 AIC RMS @ 600VAC
• Interrupting Rating (VDC): 100,000 AIC @ 300VDC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: Class 1422-02, File 53787
• Brand: Bussmann by Eaton
• Current Rating: 2500 A
• Dimensions: 5.03 in H X 5.03 in W X 10.75 in L
• Shape: RECTANGULAR
• Type: Fuse
• Unit of Measure: EA
• UPC Code: 051712605250
• Ampere: 2500 A
• Speed: Time Delay / Slow Blow
• Approvals: CE, UL, CSA, RoHS
• Manufacturer Part Number: KRP-C-2500SP
• Manufacturer: Eaton's Bussmann series
• Product Series: KRP-C
• Family Series: Eaton's Bussmann series Fuses, KRP-C Series
• Description: Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 2500 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500, 300 kAIC at 600 V, 600 V
• Fuse Type: UL Class L
• Characteristic: Time Delay
• Interrupt Rating: 300 kA @ 600 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Center Bolted
• Net Weight: 16.5 lbs
• Gross Weight: 16.5 lbs
• UNSPSC Code: 39120000
