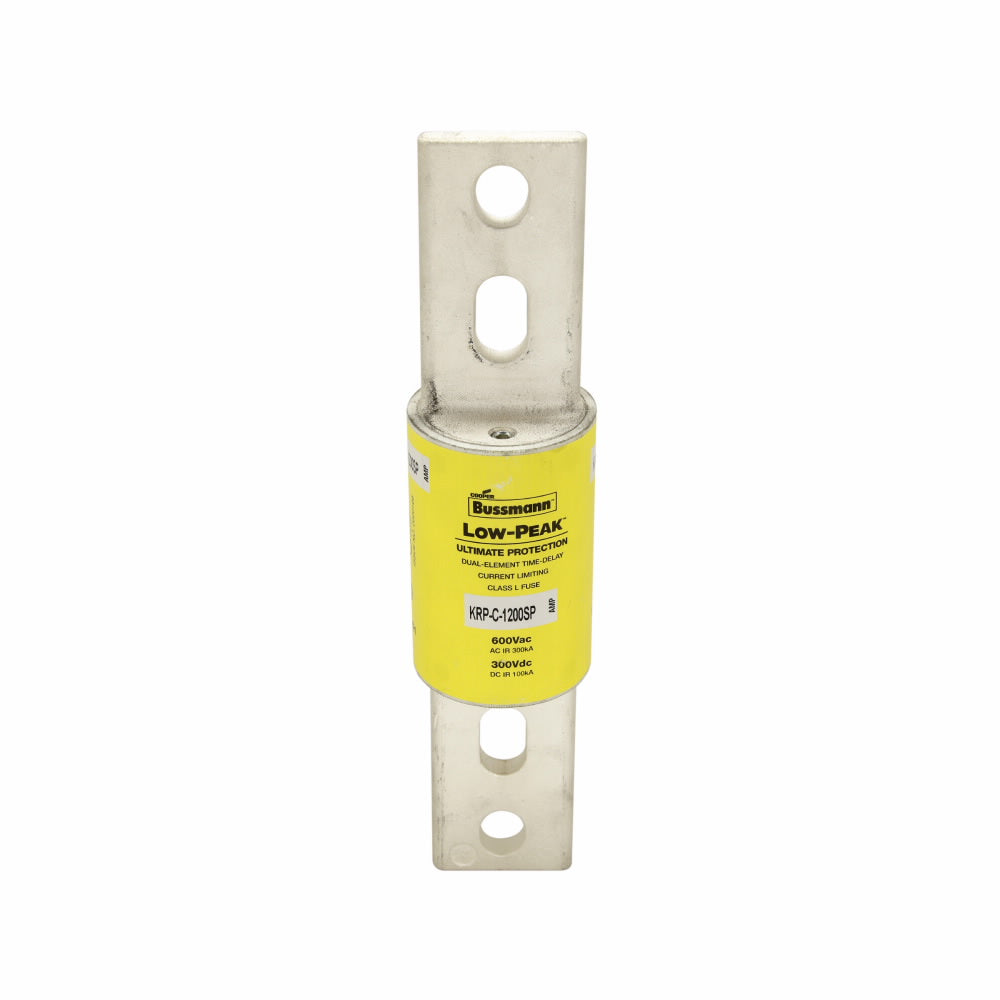

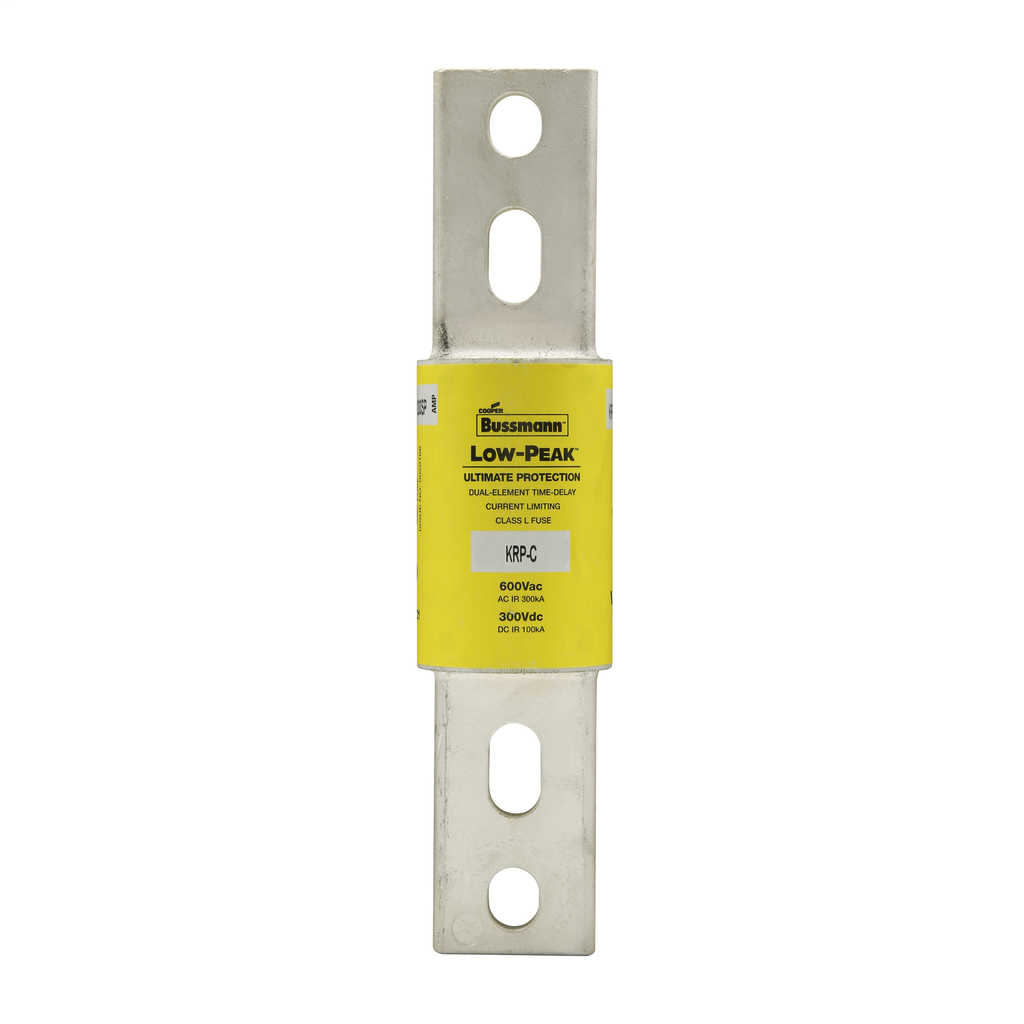

Bussmann KRP-C-1200SP Low Peak Fuse Time Delay 1200 A (2.50 In Diameter X 10.75 In Length)

Product Description

The Bussmann KRP-C-1200SP is a low peak fuse designed for current limiting and time-delay applications. This fuse is rated for twelve hundred amps and operates with a voltage up to six hundred volts AC and three hundred volts DC. The fuse features bolted blade ends which enhance connectivity in electrical installations.

• Interrupt rating of three hundred kA at six hundred volts AC.
• Time-delay response of four seconds at five hundred percent of rated current.
• Constructed from melamine for durability and reliability.

Product Highlights

This fuse is suitable for high-capacity systems requiring safety and security in facilities. It is ideal for use in large distribution switchboards, large machinery disconnects, and power panelboards.

Product Information

Standard Information

• Catalog Number: KRP-C-1200SP
• Brand: Bussmann

Technical Specifications

• Amperage Rating: 1200 A
• Voltage Rating: 600 Vac; 300 Vdc
• Diameter: 2.5 in
• Length: 10.75 in
• Material: Melamine
• Response Time: 4 sec at 500%
• End Type: Bolted Blade
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC Vdc
