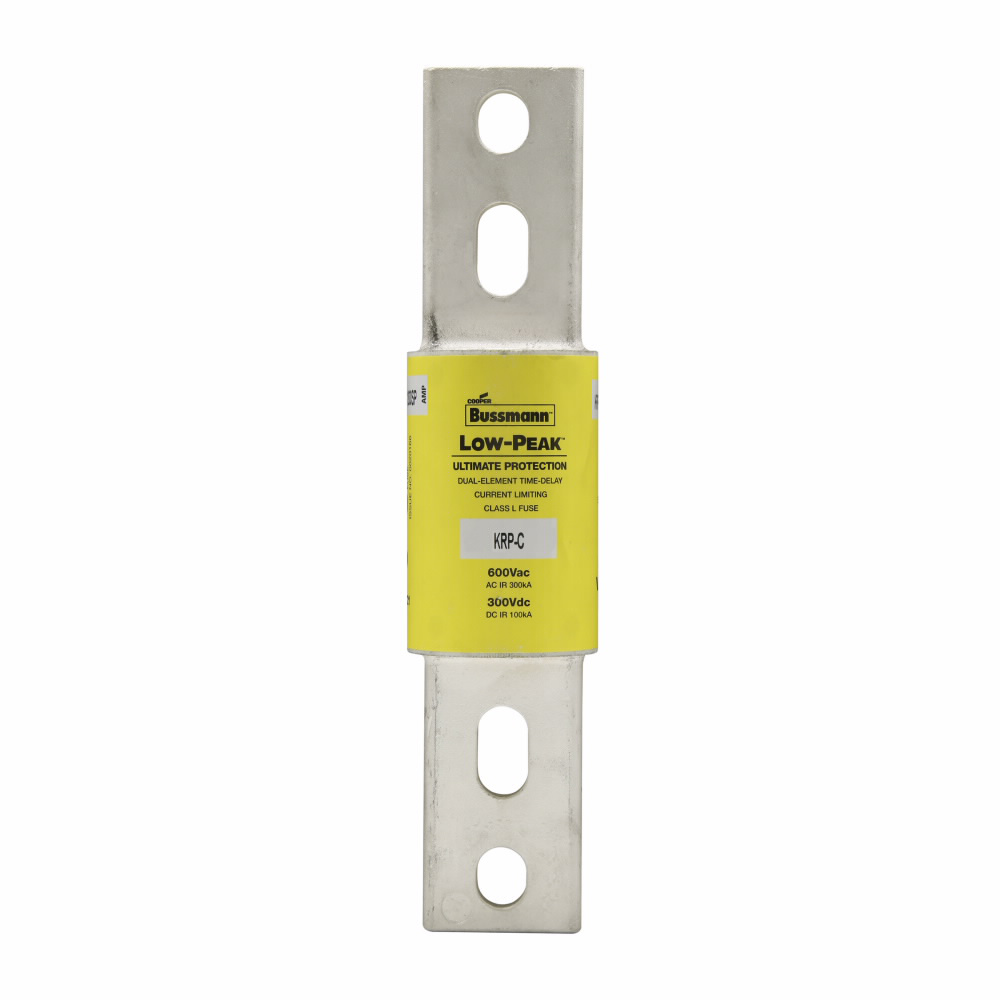

Bussmann KRP-C-1000SP Low Peak Fuse Time Delay

Product Description

The Bussmann KRP-C-1000SP is a time-delay fuse by Bussmann. It has a current rating of one thousand amps and is designed to provide time-delay and current-limiting capabilities. This fuse is suitable for various applications, including large distribution switchboards and machinery disconnects. It features a bolted blade end design and is rated for high interrupting capacity.

• Current-limiting with time-delay functionality
• Interrupt rating of three hundred kAIC at six hundred volts
• Suitable for large machinery and power panelboards

Product Highlights

The Bussmann KRP-C-1000SP fuse is engineered for high reliability in demanding applications. It is essential for protecting circuits from overloads and short circuits, ensuring safe operation.

Product Information

Standard Information

• Catalog Number: KRP-C-1000SP
• Brand: Bussmann

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 1000 A
• Response Time: 4 sec at 500%
• Interrupt Rating: 300 kAIC
• Material: Melamine
• Diameter: 2.50 inches
• Length: 10.75 inches
• Weight: 4.15 lb
