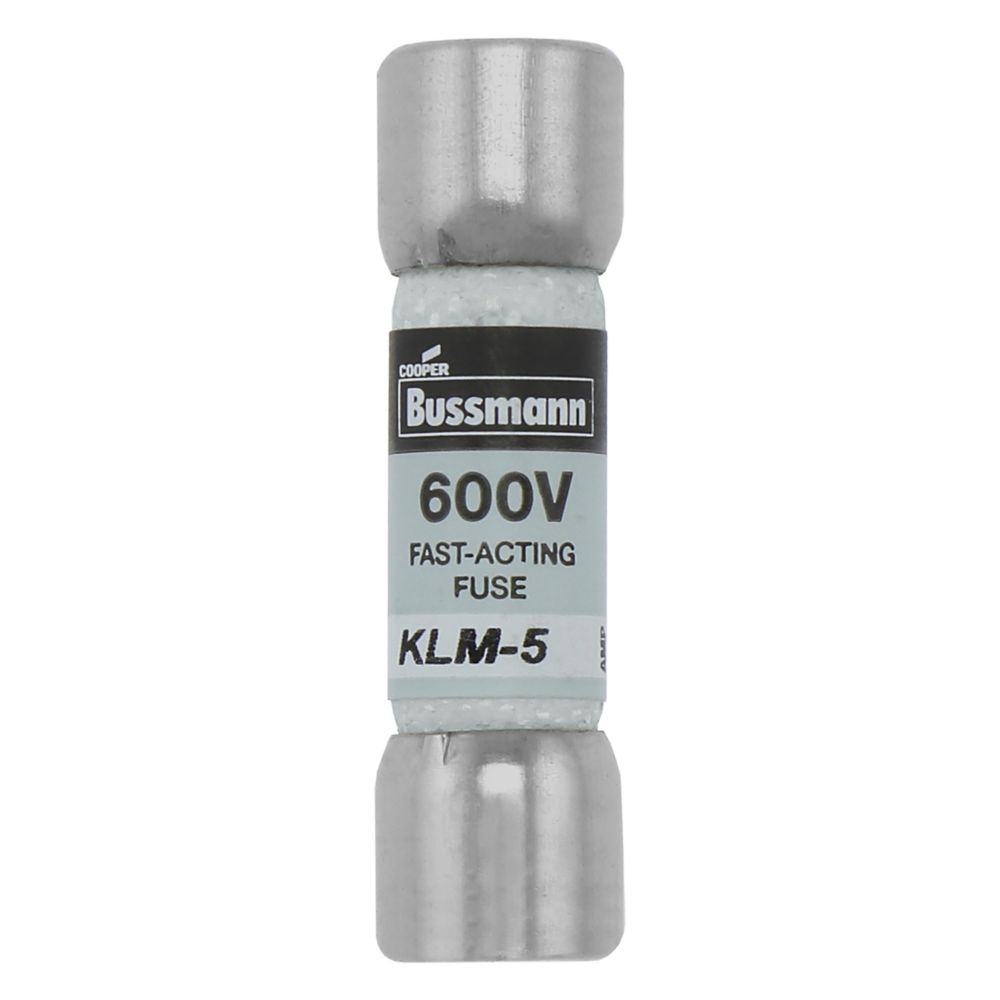

Bussmann KLM-5 Limitron Fast Acting Fuse 5 A

Product Description

The BUSSMANN KLM-5 is a Limitron fast-acting fuse. This 5A non-indicating fuse features ferrule end x ferrule end connections and a melamine tube with nickel-plated bronze endcaps. It is rated for 600 VAC/VDC with an interrupt rating of 100 kAIC at 600 VAC and 50 kAIC at 600 VDC. Commonly used in industrial facilities, safety and security systems, and DC control circuits.

• Non-indicating
• Ferrule end x ferrule end
• Fast Acting

Product Highlights

The BUSSMANN KLM-5 fuse provides reliable, fast-acting protection for a variety of applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: KLM-5
• Country of Origin: China

Technical Specifications

• IGCC: 4905
• Size: 13/32 In Diameter X 1-1/2 In Length
• Type: Fuse
• Class: Supplemental
• Material: Nickel-plated bronze endcap Melamine tube
• Standard: CE Marked;RoHS Compliant
• Connection: Ferrule End X Ferrule End
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Family group: FUSES/ACCESSORIES
• Manufacturer: BUSSMANN
• Voltage Rating: 600 Vac; 600 Vdc
• Amperage Rating: 5 Amp
• Interrupt Rating: 100000 Amp (AC); 50000 Amp (DC)
• Special Features: Nickel Plated Brass Endcap
• Product Name: Eaton Bussmann series KLM fuse
• Catalog Number: KLM-5
• UPC: 051712695121
• EAN: 5027590445429
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Fuse indicator: Non-indicating
• Applications: DC Control Circuits, Solar Power Energy Sources
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating - AC: 100 kA
• Voltage: 600 Volt
• Sub Brand: Bussmann Series
• 12-Digit UPC: 051712695121
• GTiN: 00051712695121
• Product UPC: 05171269512
• Amps: 5
• Volts: 600
• Fuse Type: Midget
• Acting Speed: Fast Acting
• Physical Size: 0.41" x 1.5"
• Interrupting Rating (VAC): 100,000 AIC @ 600 VAC
• Interrupting Rating (VDC): 50,000 AIC @ 600 VDC
• UNSPSC: 39121607
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Series: KLM
• AC Voltage Rating: 600 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: BMM; C2617; C5268; CHM; HEB; HPG; HPS
• Current Rating: 5 A
• DC Voltage Rating: 600 V DC
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Speed: Fast-Acting
• Standards: CE; CSA; UL
• Visual Indication: Non-Indicating
