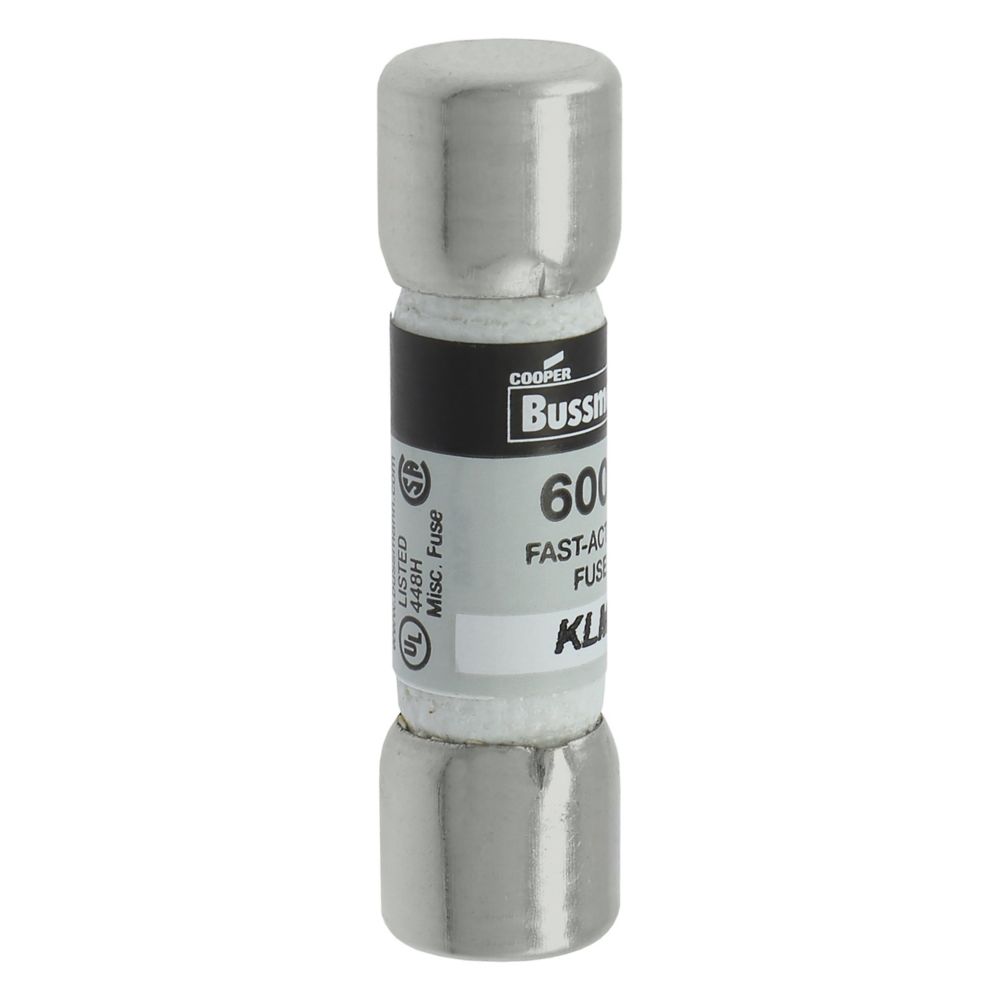

Bussmann klm-2 Limitron Fast Acting Fuse 2A

EATON
Brand: EATON
SKU: KLM-2
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$78.90
$78.90
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton BUSSMANN KLM-2 series fuse, rated at 2A, is a non-indicating, fast-acting fuse. It features ferrule end connections and is designed with a melamine tube and nickel-plated bronze endcaps. This fuse is rated for 600V AC and 600V DC applications.

  • Fast acting fuse
  • Ferrule end x ferrule end connection
  • Suitable for DC control circuits and solar power energy sources

Product Highlights

The BUSSMANN KLM-2 fuse provides reliable overcurrent protection in a compact size. It is ideal for supplemental protection.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: KLM-2
  • Country of Origin: MX - Mexico

Technical Specifications

  • Amperage: 2 Amp
  • Applications: DC Control Circuits, Solar Power Energy Sources
  • Connection Type: Ferrule
  • End Type: Ferrule
  • Interrupt Rating: 100 kAIC
  • Material: Melamine
  • Size: 13/32 In Diameter X 1-1/2 In Length
  • Standard: CE,CSA C22.2,UL 248-14
  • Tc Connection: Ferrule End X Ferrule End
  • Type: Fast Acting
  • Voltage: 600 Volt
  • Brand: Bussmann
  • Sub Brand: Bussmann Series
  • Class: Supplemental
  • Application: DC Control circuits, DC photovoltaic systems
  • Fuse Interrupt Rating: 50 kAIC at 600 Vdc|100 kAIC at 600 Vac
  • Rated Voltage: 600V ac/dc
  • Fuse Amps: 2A
  • Current Rating: 2 A
  • Indicator: Non-indicating
  • Manufacturer Part Number: KLM-2
  • Series: KLM Series
  • Shape: RECTANGULAR
  • Speed: Fast Acting sec
  • AC Voltage Rating: 600V AC
  • Visual Indication: Non-Indicating
  • Interrupt Rating - AC: 100 kA
  • Body Style: Cylindrical
  • Body Material: Melamine
  • Equivalent Brand and Series: Bussmann KLM, Littelfuse KLKD, Mersen ATM
  • Fits Fuse Block Style: Non-Rejection
  • Compatible Fuse Block Series: BMM, C2617, C5268, CHM, HEB, HPG, HPS
  • DC Voltage Rating: 600V DC
  • Item: Midget Fuse
  • Element: Single
  • Standards: CE, CSA, UL Listed
  • Green Environmental Attribute: RoHS 2011/65/EU Compliant
  • Rejection / Nonrejection: Nonrejection
  • Equivalent Series: ATM, KLKD, KLM
  • Current: 2 A
  • Interrupt Rating - DC: 50 kA
