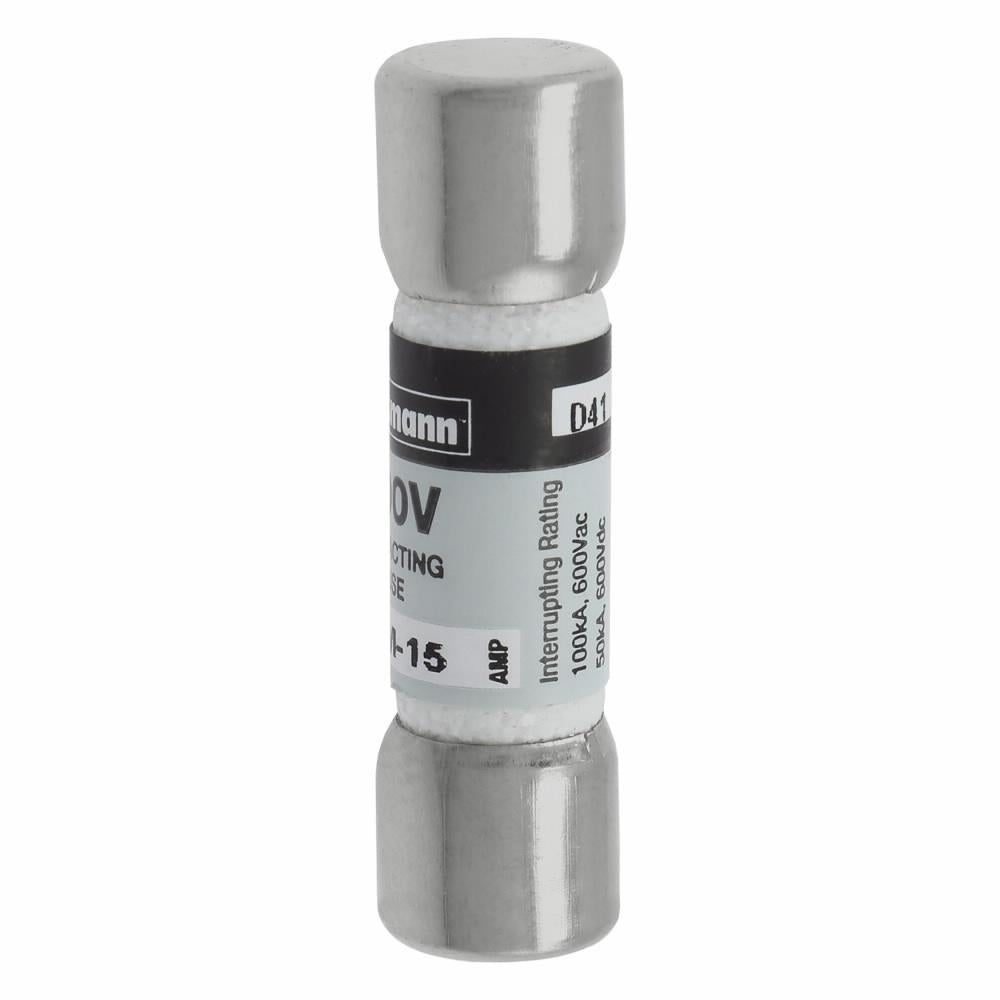

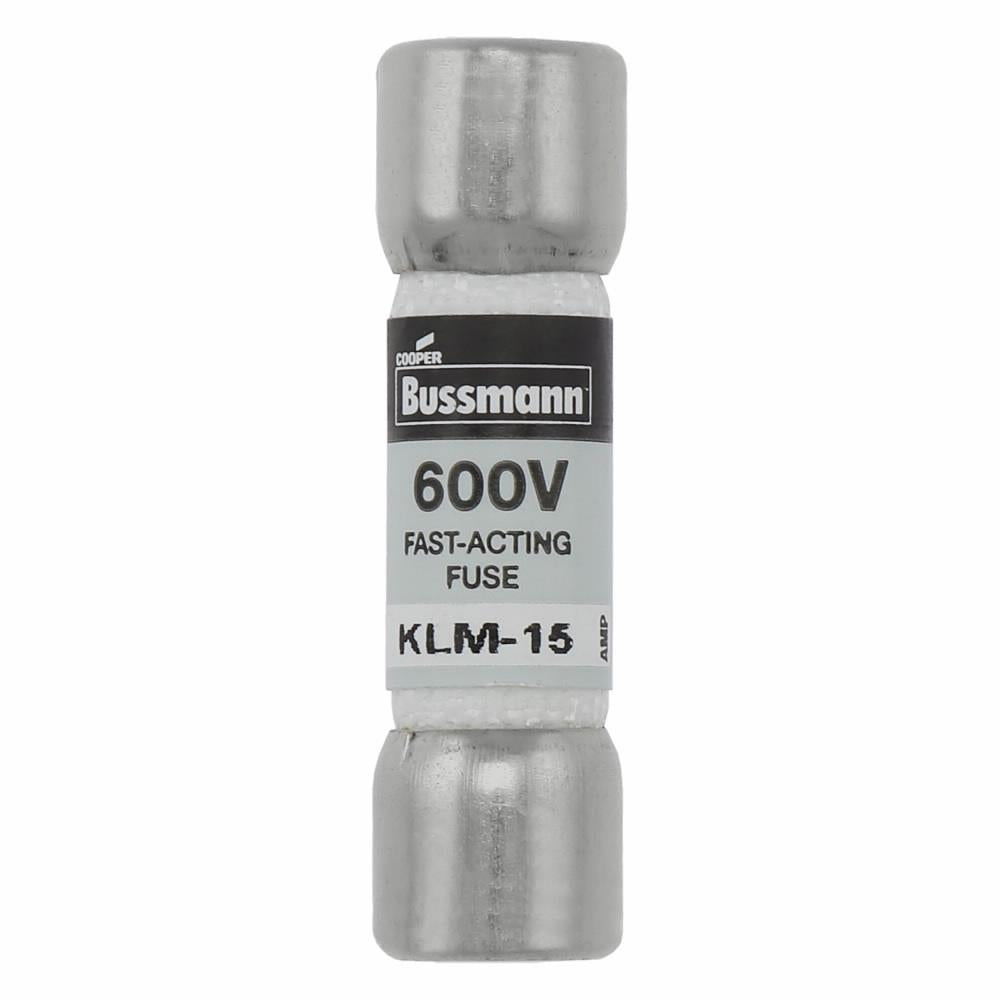

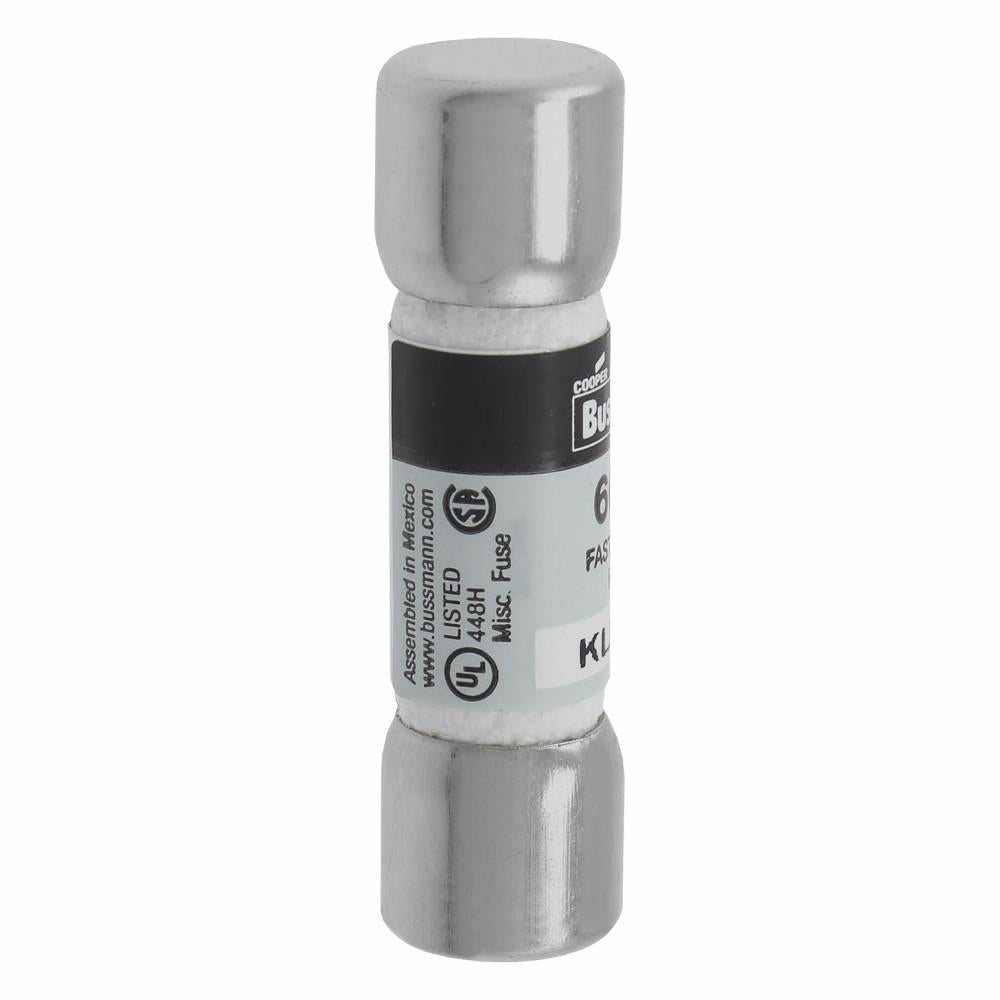

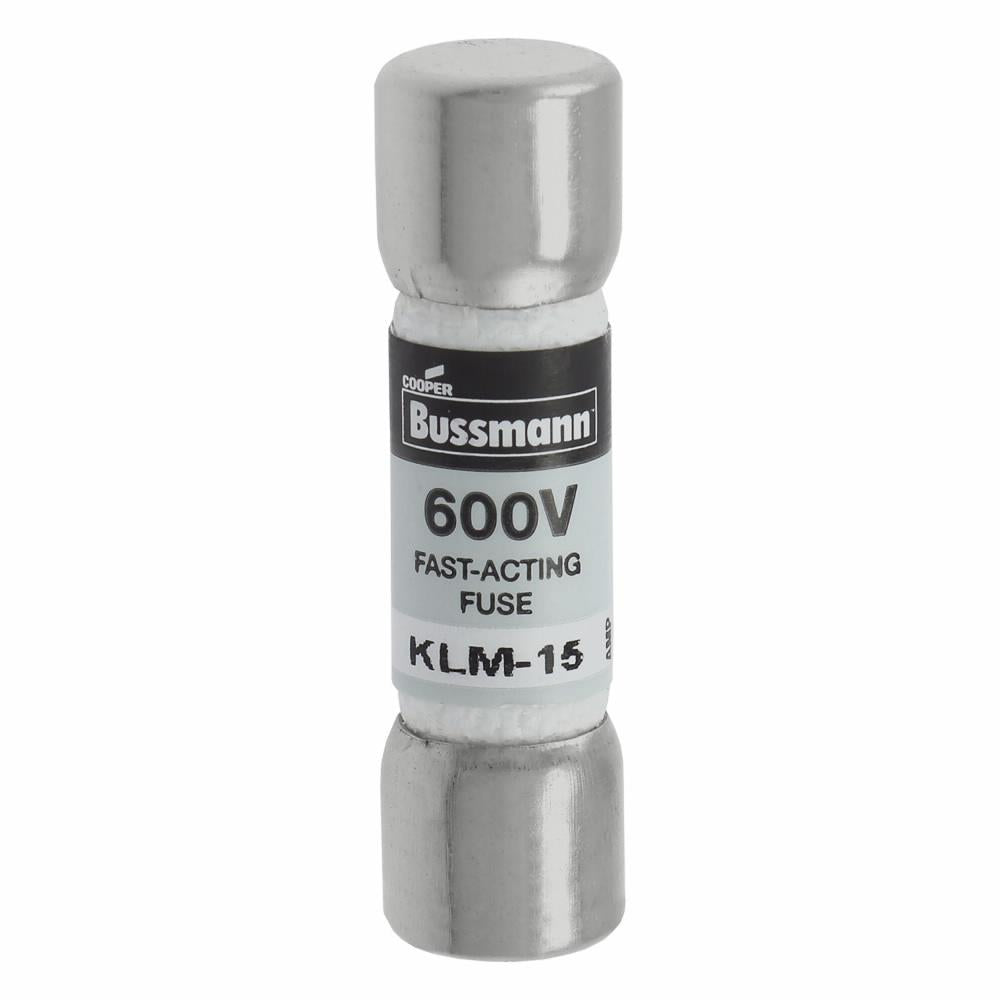

Bussmann KLM-15 Fast Acting Fuse 15 A 600 VAC/VDC 100/50 kAIC

Product Description

The Bussmann KLM-15 fast acting fuse is designed for reliable protection in electrical circuits. This fuse has a rating of fifteen amps and works with voltages up to six hundred AC and DC. It features a high interrupt rating of one hundred kAIC at six hundred volts, which ensures safety in the event of a fault. This fuse is classified as a supplemental fuse and is constructed from melamine glass.

• Amperage rating: 15 A
• Voltage rating: 600 VAC/VDC
• Interrupt rating: 100/50 kAIC

Product Highlights

This fuse is suitable for applications in solar power energy systems and DC control circuits. The ferrule end connection type and single element construction provide ease of installation.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Body Type: Cartridge
• Body Size: 13/32 inches Diameter x 1-1/2 inches Length
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine Glass
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: KLM
• Terminal Type: Ferrule End
• Type: Fast Acting
