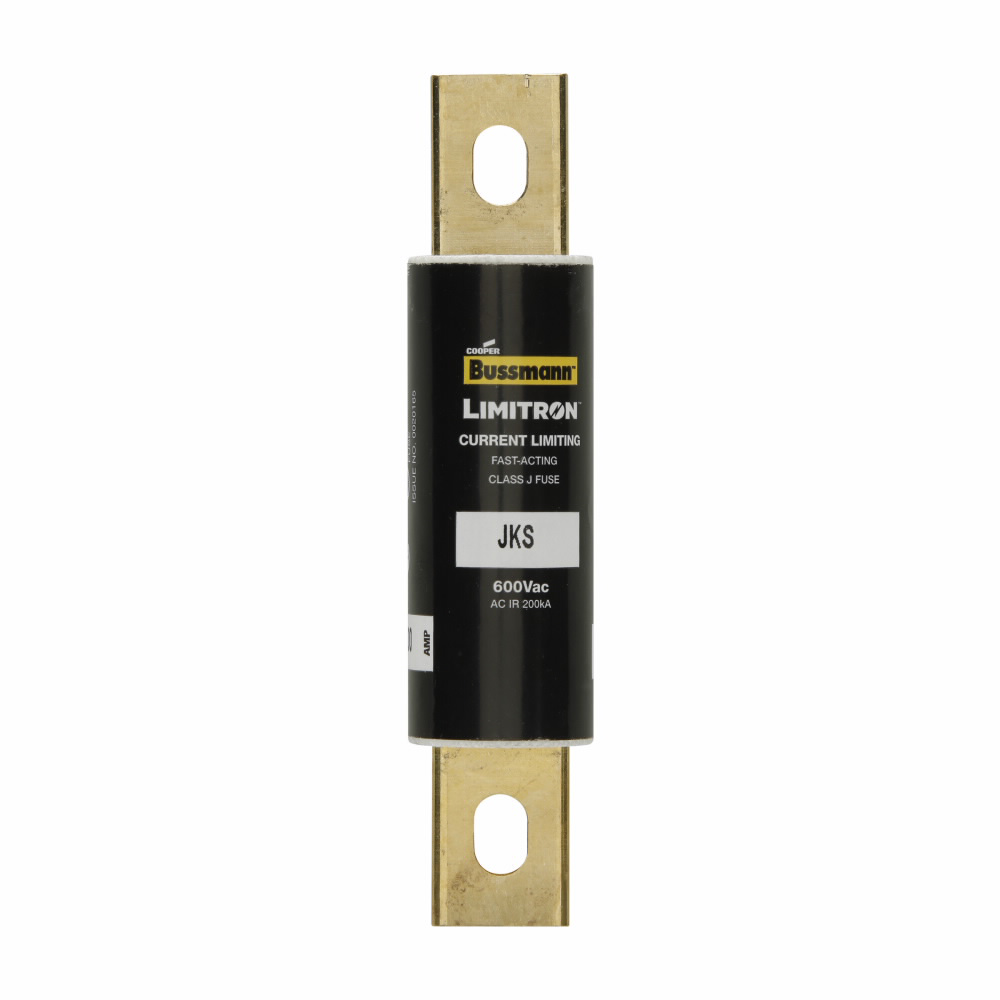

Bussmann JKS-90 Limitron Fast Acting Fuse 90 A 600 V 200 kAIC

Product Description

The Bussmann JKS-90, with MPN JKS-90, is a Class J Limitron Fast Acting Fuse rated at 90 Amperes. This fuse is designed for use in power panelboards and machinery disconnect applications. It operates at a voltage of 600 Volts and has an interrupt rating of 200 kAIC. The fuse has a bolted blade end construction, making it suitable for various electrical installations.

• Class J Fast Acting Fuse
• Rated for 90 Amps and 600 Volts
• Interrupt Rating of 200 kAIC

Product Highlights

This fuse protects electrical circuits from short circuits and overloads. Its fast acting capability ensures rapid response to fault conditions, complying with NEC 110-10 standards. The Bussmann JKS-90 provides reliable performance for both lighting and heating circuits.

Product Information

Standard Information

• Brand: Bussmann
• MPN: JKS-90

Technical Specifications

• Type: Current Limiting, Fast Acting
• Body Size: 1.13 in Diameter x 4.63 in Length
• Amperage Rating: 90 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Class: J
• Element: Single
• Terminal Type: Bolted Blade End
